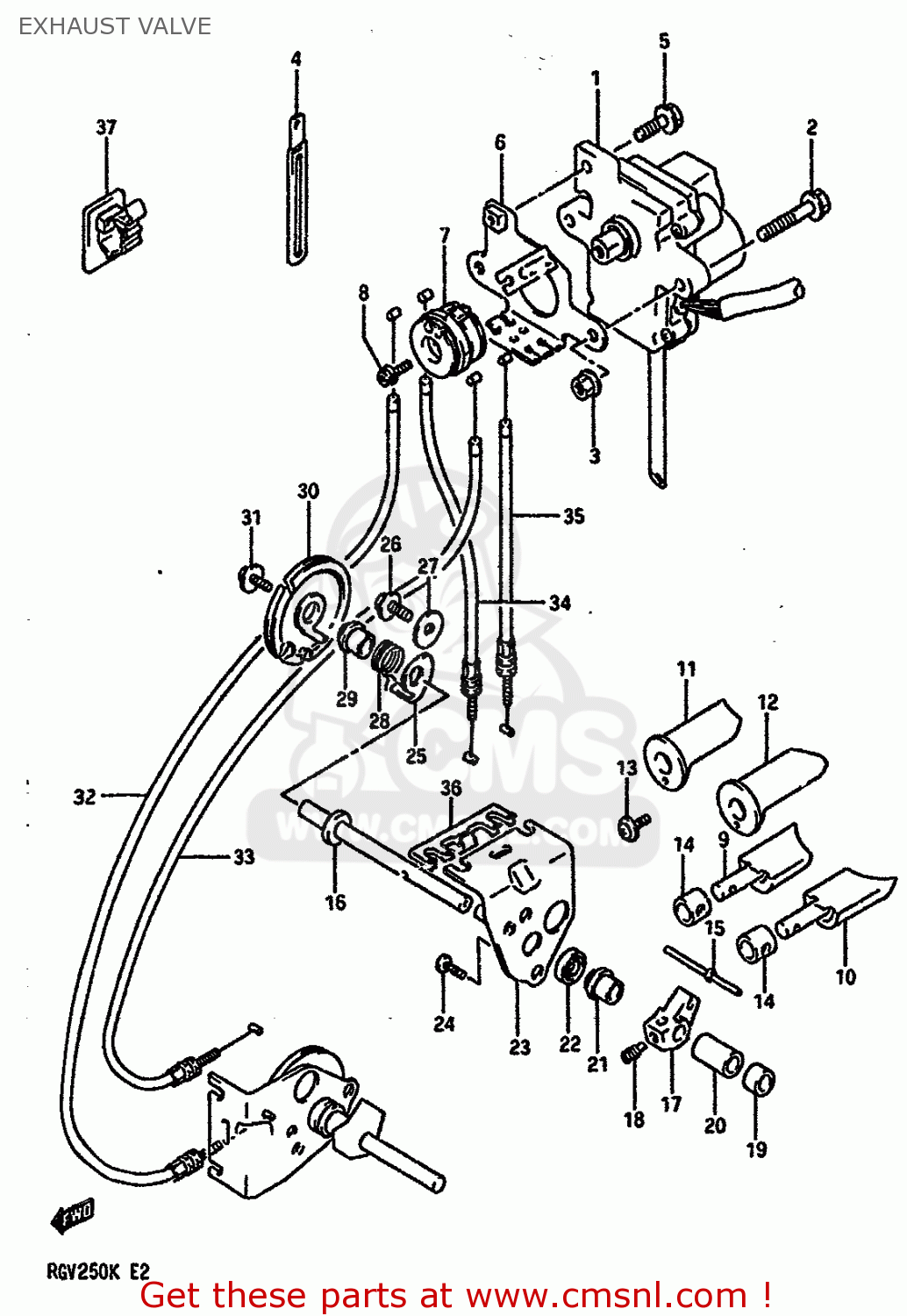

EXHAUST VALVE

ref

part #

description

quantity

1

3397012C01
ref: 1

ACTUATOR ASSY,EXHAUST VALVE

€ 373.00

2

0151706306
ref: 2

BOLT

€ 2.50

3

0831616066
ref: 3

NUT

€ 2.50

4

0940406403
ref: 4

CLAMP

€ 2.50

5

0154706167
ref: 5

BOLT

€ 2.00

6

1128612C00
ref: 6

BRACKET,CABLE

€ 19.50

7

1126912C01
ref: 7

PULLEY,CONTROLLER

€ 20.00

8

0712005168
ref: 8

BOLT

€ 1.50

9

1125412C02
ref: 9

VALVE,EXHAUST RH

€ 115.00

10

1125512C02
ref: 10

VALVE,EXHAUST LH

€ 177.50

11

1126112C02
ref: 11

GUIDE,EXHAUST VALVE RH

€ 108.00

12

1126212C02
ref: 12

GUIDE,EXHAUST VALVE LH

€ 121.50

13

0211215128
ref: 13

SCREW

€ 1.50

14

1126312C00
ref: 14

SPACER,EXHAUST VALVE

€ 29.50

15

1125301B31
ref: 15

PIN,EXHAUST VALVE 48.5MM

€ 20.50

16

1125812C01
ref: 16

SHAFT,EXHUAST VALVE

€ 54.50

17

1126400B23
ref: 17

ARM,EXHAUST VALVE SHAFT

€ 17.00

18

0913406011
ref: 18

SCREW

€ 4.50

19

0930008016
ref: 19
INCLUDED CYLINDER

BUSH(8X12X7)

€ 3.50

20

1128312C00
ref: 20

SPACER,EXHAUST VALVE SHAFT

€ 5.50

21

1126512C00
ref: 21

BUSH,EXHAUST VALVE NO.2

€ 8.50

22

0928208001
ref: 22

SEAL,OIL(8X16X5)

€ 3.00

23

1125912C02
ref: 23

RETAINER,OIL SEAL

€ 10.50

24

0211206128
ref: 24

SCREW 6X12

€ 2.00

25

1126712C01
ref: 25

LEVER,EXHUAST VALVE

€ 11.50

26

0211206087
ref: 26

SCREW

€ 2.00

27

0821106201
ref: 27

WASHER

€ 2.00

28

1128512C02
ref: 28

SPRING,EXHAUST VALVE LEVER

€ 7.00

29

1126812C01
ref: 29

SPACER,EXHAUST VALVE PULLEY

€ 6.50

30

1126612C04
ref: 30

PULLEY,EXHAUST VALVE

€ 50.50

31

0911805002
ref: 31

BOLT

€ 4.00

32

1127612C02
ref: 32
L:573

CABLE,EXHAUST VALVE FR,R

€ 17.50

33

1127812C00
ref: 33
L:523

CABLE,EXHAUST VALVE FR,L

€ 17.50

34

1127712C03
ref: 34
L:202

CABLE,EXHAUST VALVE RR,R

€ 13.50

35

1127912C00
ref: 35
L:213

CABLE,EX VALVE REAR LH

€ 12.00

36

1128412C00
ref: 36

STOPPER,CABLE

€ 8.50

37

0940800074
ref: 37

CLAMP

€ 5.50
