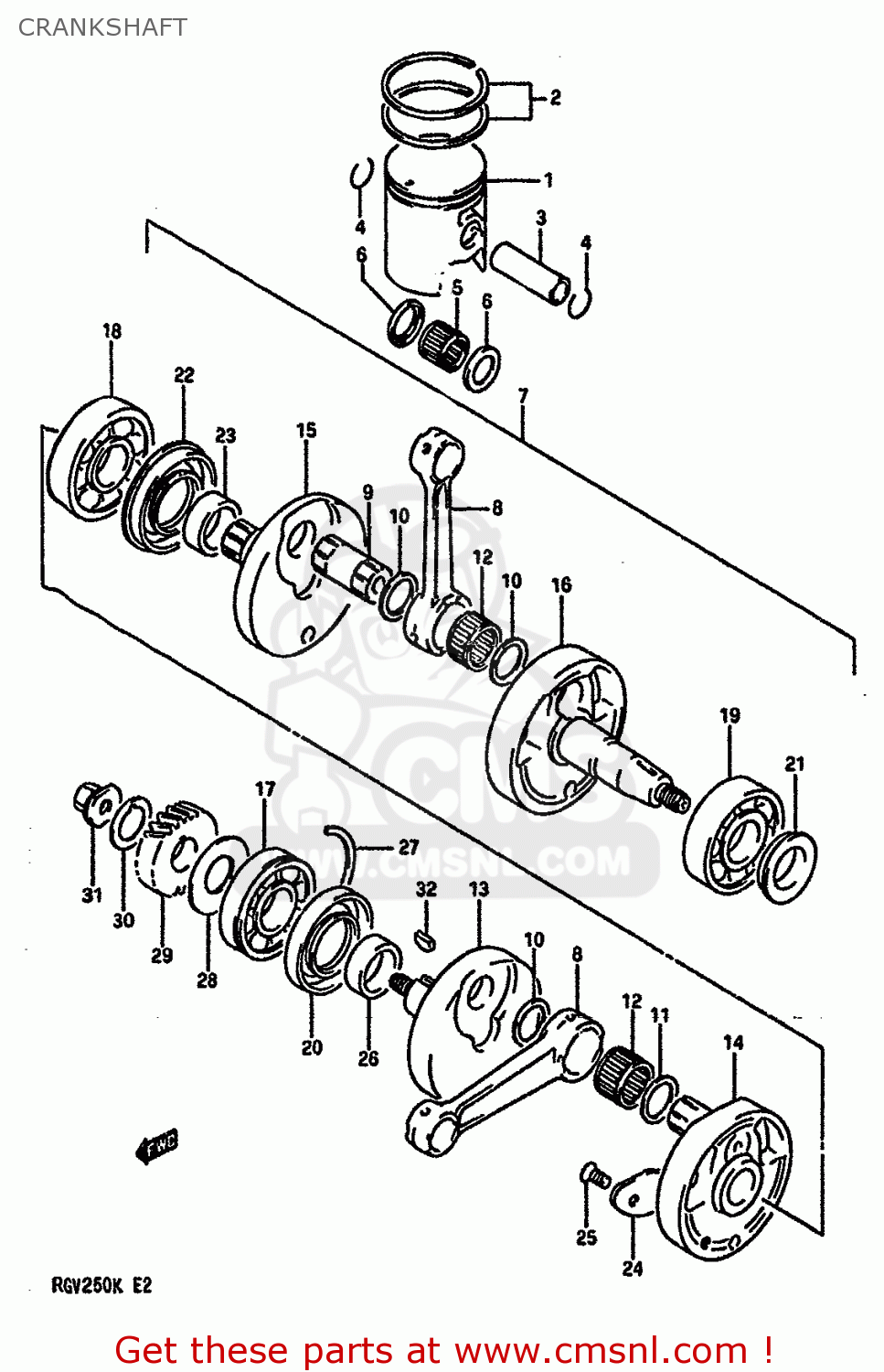

CRANKSHAFT

ref

part #

description

quantity

1

1211012C050F0
ref: 1

PISTON

€ 71.00

2

1214012C30
ref: 2

RING SET,PISTO

€ 52.50

3

1215112C00
ref: 3

PIN,PISTON

€ 12.00

4

0938116001
ref: 4

RING,SNAP 16MM

€ 1.50

5

0926316027
ref: 5

BEARING,PISTON PIN

€ 13.00

6

0916916007
ref: 6

WASHER

€ 6.50

7

1220012C02
ref: 7

CRANKSHAFT ASSY

€ 960.50

8

1216112C060D0
ref: 8

ROD,CONNECTING

€ 100.00

9

1221112C020A0
ref: 9

PIN,CRANK

€ 36.00

10

0916022070
ref: 10

WASHER(22X27.5X1.5)

€ 9.50

11

0916022071
ref: 11

WASHER(22X27.5X2)

€ 9.50

12

09263220470C0
ref: 12

ROLLER BEARING (22X28X1

€ 64.00

13

1222112C06
ref: 13

CRANKSHAFT,RH

€ 166.50

14

1223112C070A0
ref: 14

WEB,CRANKSHAFT

€ 0.00

15

1224112C08
ref: 15

CRANKSHAFT,MIDDLE

€ 198.50

16

1226112C08
ref: 16

CRANKSHAFT,LH

€ 189.00

17

0926225097
ref: 17
RH

BEARING(25X62X17)

€ 41.50

18

0926225099
ref: 18
MDL

BEARING (25X62X18)

€ 48.50

19

0926225098
ref: 19
LH

BEARING(25X62X17)

€ 55.00

20

0928932005
ref: 20
RH

SEAL,OIL(32X62X6X7.5)

€ 23.50

21

0928325085
ref: 21
LH

OIL SEAL (25X36X6)

€ 32.50

22

0928933009
ref: 22
MDL

OIL SEAL (33X62X10)

€ 0.00

23

0918025092
ref: 23
MDL

SPACER (25.5X33X12)

€ 0.00

24

1227112C04
ref: 24

BALANCER,CRANKSHAFT

€ 11.00

25

0212206167
ref: 25

SCREW

€ 2.00

26

0918025089
ref: 26
RH

SPACER(25.2X32X9)

€ 12.00

27

0939062009
ref: 27

C RING

€ 5.00

28

0918120059
ref: 28

SHIM(20X48X0.5)

€ 3.00

29

2111112C01
ref: 29

GEAR,PRIMARY DRIVE

€ 52.50

30

0916612002
ref: 30

WASHER

€ 2.00

31

0915912103
ref: 31

NUT

€ 9.00

32

0942005008
ref: 32

KEY

€ 69.00

all assemblies
