CARBURETOR
RGV250 1989 (K) (E02 E04 E21 E24 E34)

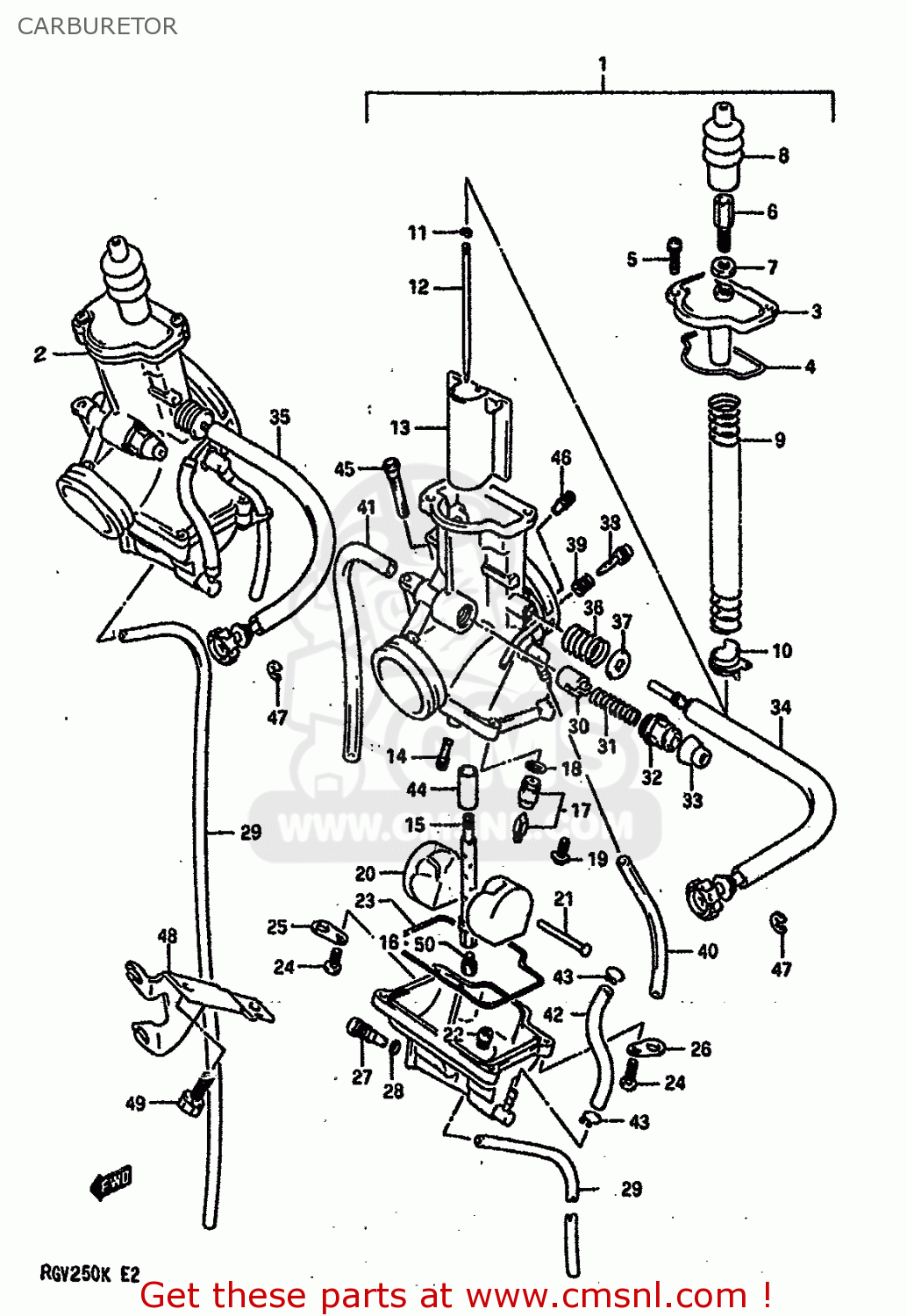

Carburetor diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)
CARBURETOR RGV250 1989 (K) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
1320112C10
ref: 1
CARBURETOR ASSY,LH
€ 407.00
2
1320212C10
ref: 2
CARBURETOR ASSY,RH
€ 414.00
3
1326112C00
ref: 3
CAP, TOP
€ 20.50
4
1325126C00
ref: 4
O RING,TOP CAP
€ 9.50
5
1360104148
ref: 5
SCREW
€ 2.50
6
1357741612
ref: 6
ADJUSTER,CABLE
€ 8.00
7
1366116600
ref: 7
NUT
€ 5.00
8
1368141510
ref: 8
CAP,CABLE ADJUSTER
€ 11.00
9
1357312C00
ref: 9
SPRING
€ 10.50
10
1342426C00
ref: 10
RING
€ 7.50
11
1339431210
ref: 11
CLIP,NEEDLE
€ 3.50
12
1338312C00
ref: 12
6FL65-54-4
NEEDLE,JET
€ 13.00
13
1355112C00
ref: 13
VALVE,PISTON(CA:1.5)
€ 167.50
14
0949225005
ref: 14
JET,PILOT(25)
€ 6.50
15
0949400621
ref: 15
JET,NEEDLE(O-6)
€ 23.50
16
0949140006
ref: 16
JET,MAIN(200)
€ 11.50
17
1337012C00
ref: 17
VALVE ASSY,NEEDLE
€ 0.00
18
1337444080
ref: 18
O-RING,NEEDLE VALVE
€ 6.00
19
1360243410
ref: 19
SCREW
€ 2.50
20
1325012C00
ref: 20
FLOAT
€ 41.50
21
1325492311
ref: 21
PIN,FLOAT
€ 2.00
22
0949120010
ref: 22
JET
€ 7.50
23
1367212C00
ref: 23
GASKET,FLOAT CAHMBER (NAS)
€ 13.00
24
1360205A40
ref: 24
SCREW
€ 1.50
25
1369336500
ref: 25
PLATE,CARBURETOR
€ 3.50
26
1369330010
ref: 26
PLATE
€ 4.00
27
1324702340
ref: 27
PLUG,DRAIN
€ 5.50
28
1327802340
ref: 28
LH
O RING
€ 1.50
29
1368426B00
ref: 29
HOSE (3X5X525)
€ 7.50
30
1341101010
ref: 30
PLUNGER,STARTER
€ 14.00
31
1341737200
ref: 31
SPRING
€ 3.00
32
1341843410
ref: 32
HOLDER,GUIDE
€ 6.50
33
1368104010
ref: 33
CAP
€ 3.00
34
1326712C00
ref: 34
LH
ADJUSTER,THROTTLE STOP
€ 50.00
35
1326712C10
ref: 35
RH
ADJUSTER,THROTTLE STOP
€ 43.00
36
1326812C00
ref: 36
SPRING
€ 6.00
37
1354712C00
ref: 37
WASHER
€ 7.00
38
1326910200
ref: 38
2.0
SCREW
€ 12.50
39
1326835010
ref: 39
SPRING
€ 3.00
40
1368440A00
ref: 40
L:650-100
HOSE(3X5X650)
€ 7.50
41
1368616600
ref: 41
L:120-90
HOSE
€ 5.50
42
1321812C00
ref: 42
HOSE SET
€ 0.00
43
1367112C00
ref: 43
CLIP
€ 2.50
44
1345212C00
ref: 44
RING
€ 5.50
45
1323612C00
ref: 45
FILTER
€ 5.00
46
0949370009
ref: 46
JET,MAIN AIR(0.7)
€ 13.00
47
1361712C00
ref: 47
E RING
€ 2.50
48
1362112C00
ref: 48
BRACKET,ADJUSTER
€ 19.00
49
0113406168
ref: 49
BOLT
€ 2.50
50-1
0949134002
ref: 50-1
OPT
JET,MAIN(170)
€ 7.00
50-2
0949135003
ref: 50-2
OPT
JET,MAIN
€ 7.00
50-3
0949136003
ref: 50-3
OPT
JET
€ 15.00
50-4
0949138003
ref: 50-4
OPT
JET
€ 10.00
50-5
0949138006
ref: 50-5
OPT
JET,MAIN(195)
€ 7.00
50-6
0949144001
ref: 50-6
OPT
JET,MAIN (220)
€ 9.50
50-7
0949146001
ref: 50-7
OPT
JET,MAIN(230)
€ 6.50
50-8
0949148001
ref: 50-8
OPT
JET
€ 13.00
50-9
0949150003
ref: 50-9
OPT
JET
€ 12.50
50-10
0949152001
ref: 50-10
OPT
JET
€ 7.50
