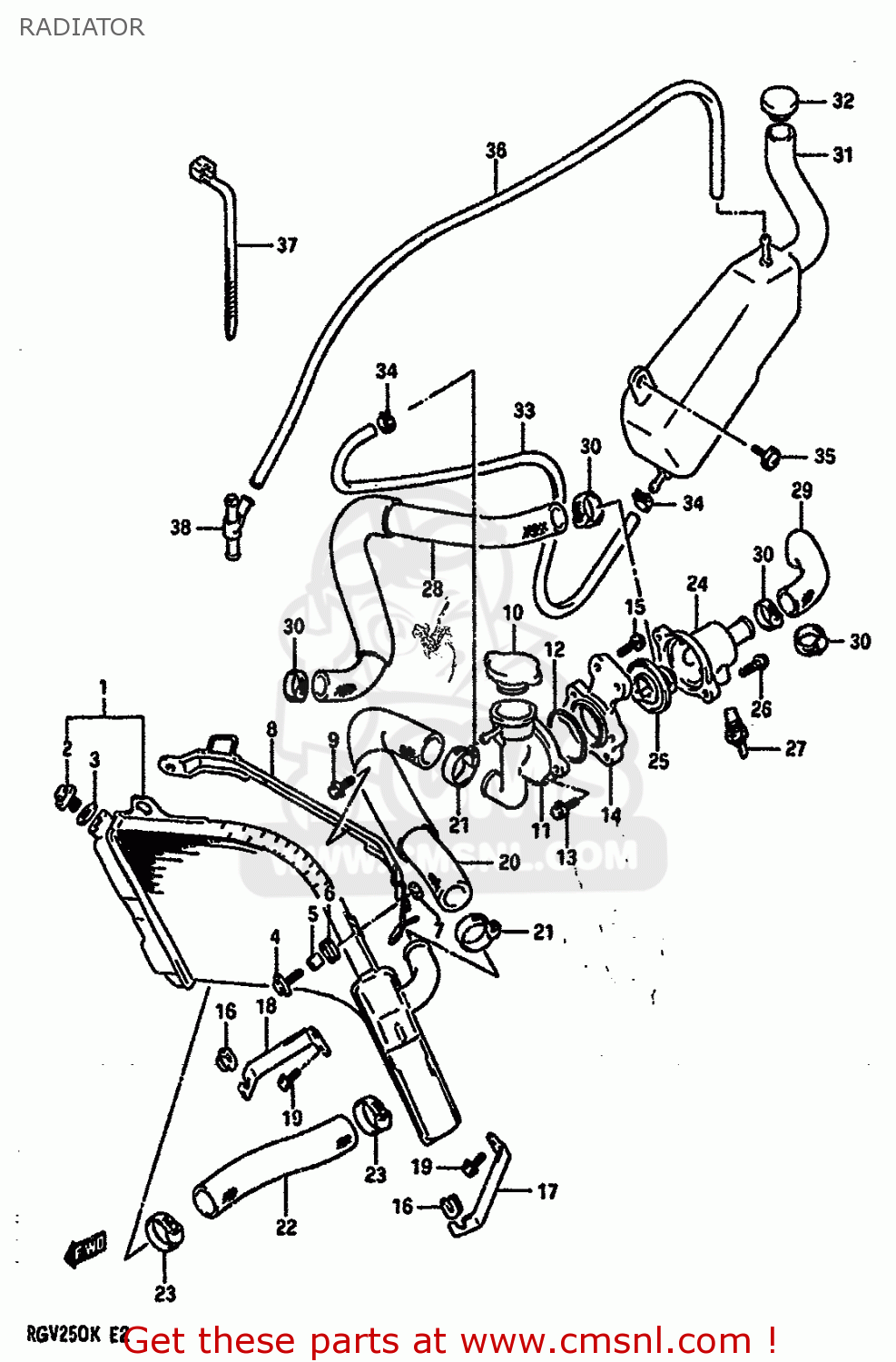

RADIATOR

ref

part #

description

quantity

1

1771012C00
ref: 1

RADIATOR ASSY,WATER

€ 778.50

2

1771838405
ref: 2

PLUG

€ 9.00

3

1775963210
ref: 3

GASKET

€ 1.50

4

0911606143
ref: 4

BOLT 6X20

€ 2.00

5

0918006030
ref: 5

SPACER (6.8X10X10)

€ 2.00

6

0932010015
ref: 6

CUSHION

€ 2.50

7

0831616064
ref: 7

NUT 6MM

€ 2.50

8

1774012C01
ref: 8

BRACKET,RADIATOR UPPER

€ 29.00

9

0117406168
ref: 9

BOLT

€ 3.00

10

1773020930
ref: 10

CAP,RADIATOR 1.1

€ 40.00

11

1779132C00
ref: 11

CONDUCTION,RADIATOR

€ 133.50

12

0928044005
ref: 12

O RING(D:2.4,ID:43.2)

€ 4.00

13

0151706167
ref: 13

BOLT 6X16

€ 1.50

14

1779212C00
ref: 14

BRACKET,CONDUCTION

€ 59.50

15

0151706307
ref: 15

BOLT

€ 2.00

16

1662827A00
ref: 16

CUSHION,OIL COOLER NO.2

€ 3.00

17

1774212C01
ref: 17

BRACKET,RADIATOR LOWER LH

€ 3.50

18

1774112C01
ref: 18

BRACKET,RADIATOR LOWER RH

€ 3.50

19

0151706164
ref: 19

BOLT

€ 2.50

20

1785112C00
ref: 20

HOSE,RADIATOR INLET

€ 15.50

21

0940230502
ref: 21

CLAMP

€ 11.50

22

1785212C01
ref: 22

HOSE,RADIATOR OUTLET

€ 12.50

23

0940232502
ref: 23

CLAMP

€ 11.50

24

1766212C01
ref: 24

CONNECTOR,THERMOSTAT INLET

€ 40.00

25

1767012C00
ref: 25

THERMOSTAT,WATER

€ 37.50

26

0151706207
ref: 26

BOLT 6X20

€ 2.50

27

3485082011
ref: 27

GAUGE ASSY,WATER TEMPERATURE

€ 82.50

28

1785312C01
ref: 28

HOSE,RADIATOR JOINT NO.1

€ 30.00

29

1785412C00
ref: 29

HOSE,RADIATOR JOINT NO.2

€ 11.50

30

0940225502
ref: 30

CLAMP

€ 8.50

31

1791012C01
ref: 31

TANK ASSY,RESERVOIR

€ 39.00

32

1793212C00
ref: 32

CAP,RESERVOIR TANK

€ 3.50

33

1798112C00
ref: 33

HOSE,RESERVOIR TANK INLET

€ 27.00

34

0940108407
ref: 34

CLIP

€ 3.00

35

0913606017
ref: 35

SCREW(6X16)

€ 2.50

36

0935250901650
ref: 36
L:650-470

HOSE

€ 19.50

37

0940722404
ref: 37

CLAMP

€ 2.50

38

0936706005
ref: 38

3 WAY

€ 6.00

all assemblies
