HEADLAMP

RGV250 1989 (K) (E02 E04 E21 E24 E34)

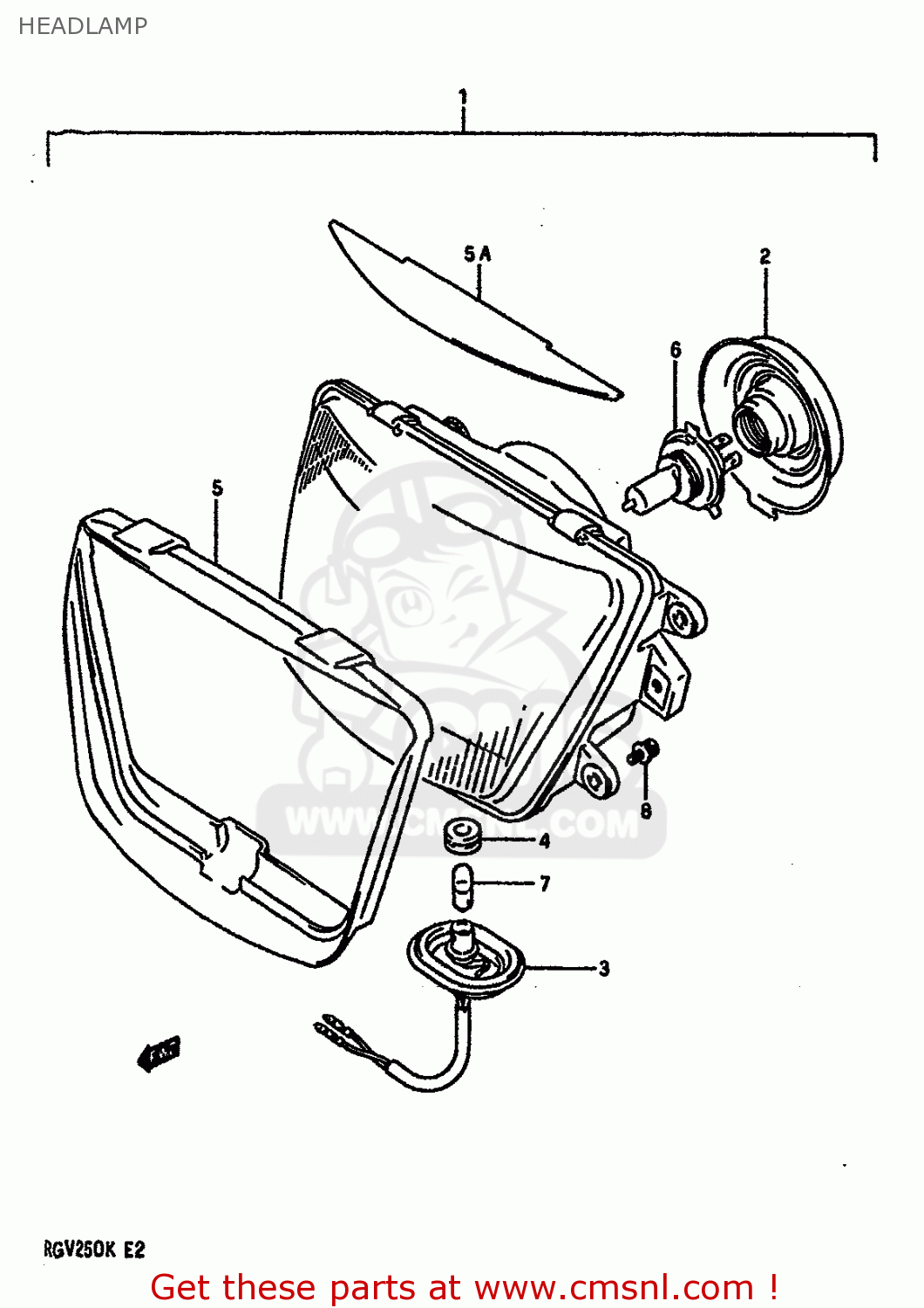

Headlamp diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

1-1

3510012C00
ref: 1-1

HEADLAMP ASSY

€ 318.00

1-2

3510012C40
ref: 1-2
E4

HEADLAMP ASSY

€ 312.50

1-3

3510012C50
ref: 1-3
E21,E34

HEADLAMP ASSY

€ 312.50

3517326B20
ref: 2

COVER,SOCKET

€ 14.50

3611812C00
ref: 3

SOCKET

€ 17.50

3611622630
ref: 4

JOINT,RUBBER

€ 5.00

3512912C00
ref: 5

SHEAD,HEADLAMP

€ 41.00

3524212C00
ref: 5A

CUSHION

€ 0.00

6-1

0947112060
ref: 6-1

BULB(12V60/55W,H4)

€ 8.00

6-2

0947112061
ref: 6-2
E4,EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

7-1

0947112032
ref: 7-1

BULB

€ 6.00

7-2

0947112063
ref: 7-2
E4,E21,E34,EXECUTED

BULB(12V4W)

€ 6.00

0211275165
ref: 8

SCREW

€ 2.50
