RGV250 1989 (K) (E02 E04 E21 E24 E34)

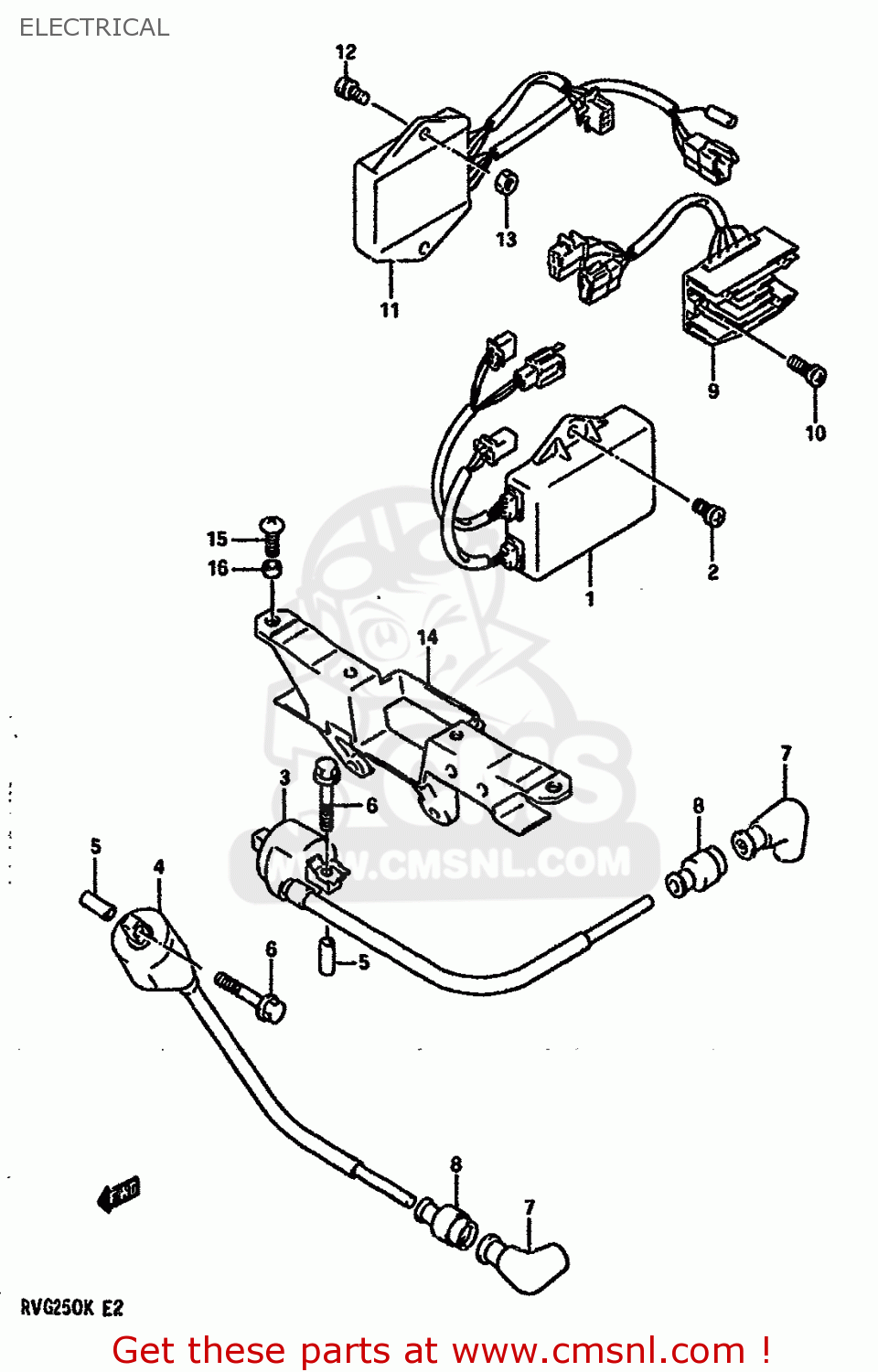

Electrical diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)
ELECTRICAL RGV250 1989 (K) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
3290012C00
ref: 1
CDI UNIT
€ 788.50
2
0211216166
ref: 2
SCREW
€ 2.50
3
3341012C00
ref: 3
COIL ASSY,IGNITION NO.1
€ 123.00
4
3342012C00
ref: 4
COIL ASSY,IGNITION NO.2
€ 107.00
5
0918006190
ref: 5
SPACER
€ 4.50
6
0151706456
ref: 6
SCREW
€ 2.50
7
3351020A00
ref: 7
CAP,SPARK PLUG
€ 23.00
8
3354238B00
ref: 8
SEAL,HIGH TENSION CORD
€ 4.50
9
3280020A00
ref: 9
RECTIFIER
€ 368.00
10
0211236256
ref: 10
SCREW
€ 2.50
11
3291012C01
ref: 11
CONTROL UNIT,EXHAUST VALVE
€ 455.00
12
0211216166
ref: 12
SCREW
€ 2.50
13
0831616066
ref: 13
NUT
€ 2.50
14
4741112C00
ref: 14
HOLDER,ELECTRIC PARTS
€ 40.00
15
0214206207
ref: 15
SCREW
€ 2.00
16
0918006173
ref: 16
SPACER (6.1X9X3.8)
€ 1.50
