FRAME

RGV250 1989 (K) (E02 E04 E21 E24 E34)

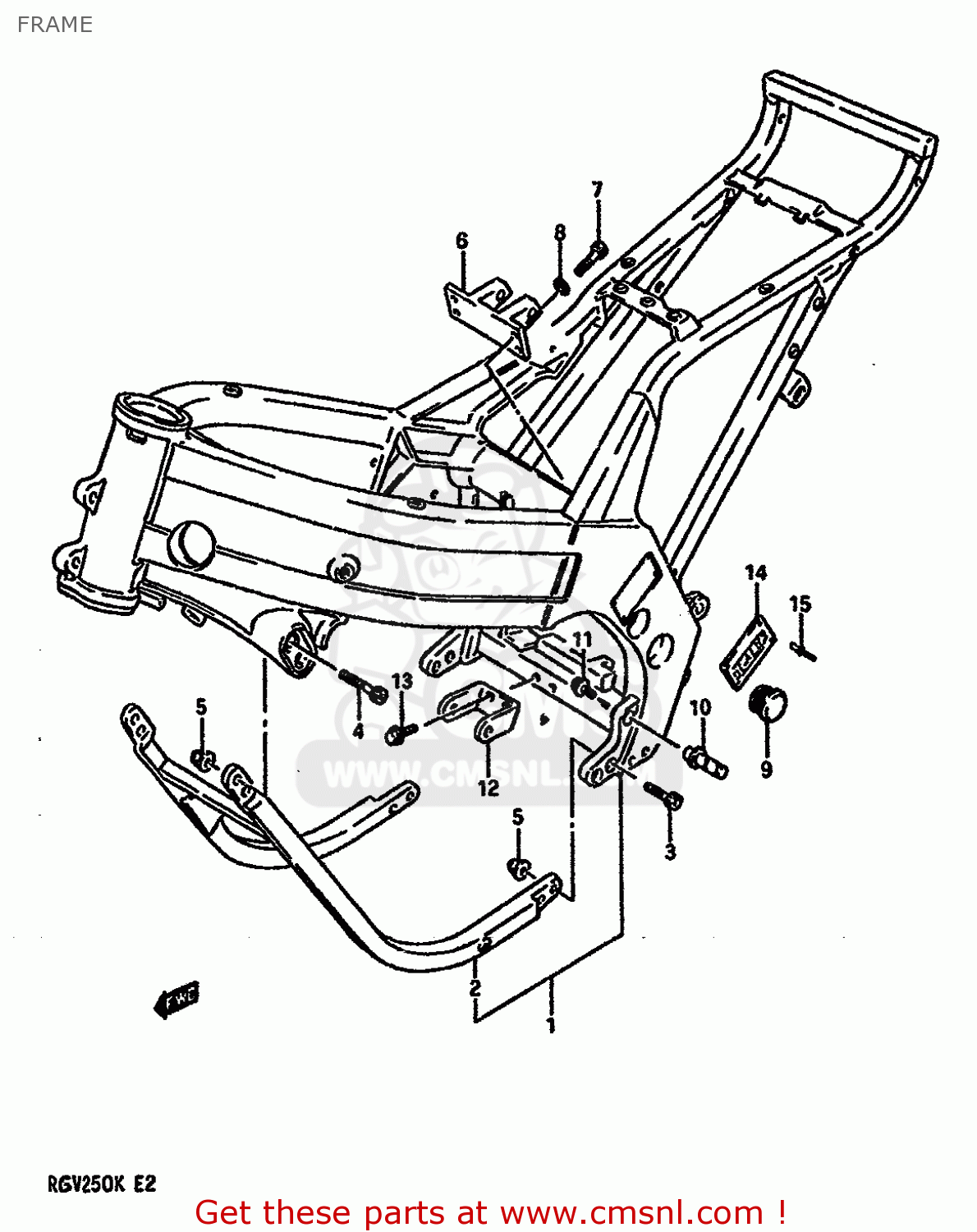

Frame diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)

prices are in EUR

ref

part #

description

quantity

4110012820
ref: 1

FRAME SET

€ 2,825.50

4114012C00
ref: 2

TUBE,FRAME DOWN

€ 0.00

0711008307
ref: 3

BOLT, LH

€ 4.50

0711008408
ref: 4

BOLT

€ 3.50

0831931087
ref: 5

NUT

€ 2.50

4176212C01
ref: 6

BRACKET,REAR CUSHION UNIT

€ 89.00

0910608083
ref: 7

BOLT(8X25)

€ 3.50

0916408015
ref: 8

WASHER

€ 3.00

4358512C00
ref: 9

CAP,BODY FRAME

€ 0.00

4382330B10
ref: 10

BOSS,GEAR SHIFT

€ 10.00

0151706128
ref: 11

BOLT

€ 2.50

4191112C00
ref: 12

PLATE, ENGINE MOUNTING

€ 10.50

0151706167
ref: 13

BOLT 6X16

€ 1.50

6889112C00
ref: 14

PLATE,ALUMINUM BOX

€ 0.00

0922903020
ref: 15

RIVET

€ 2.50
