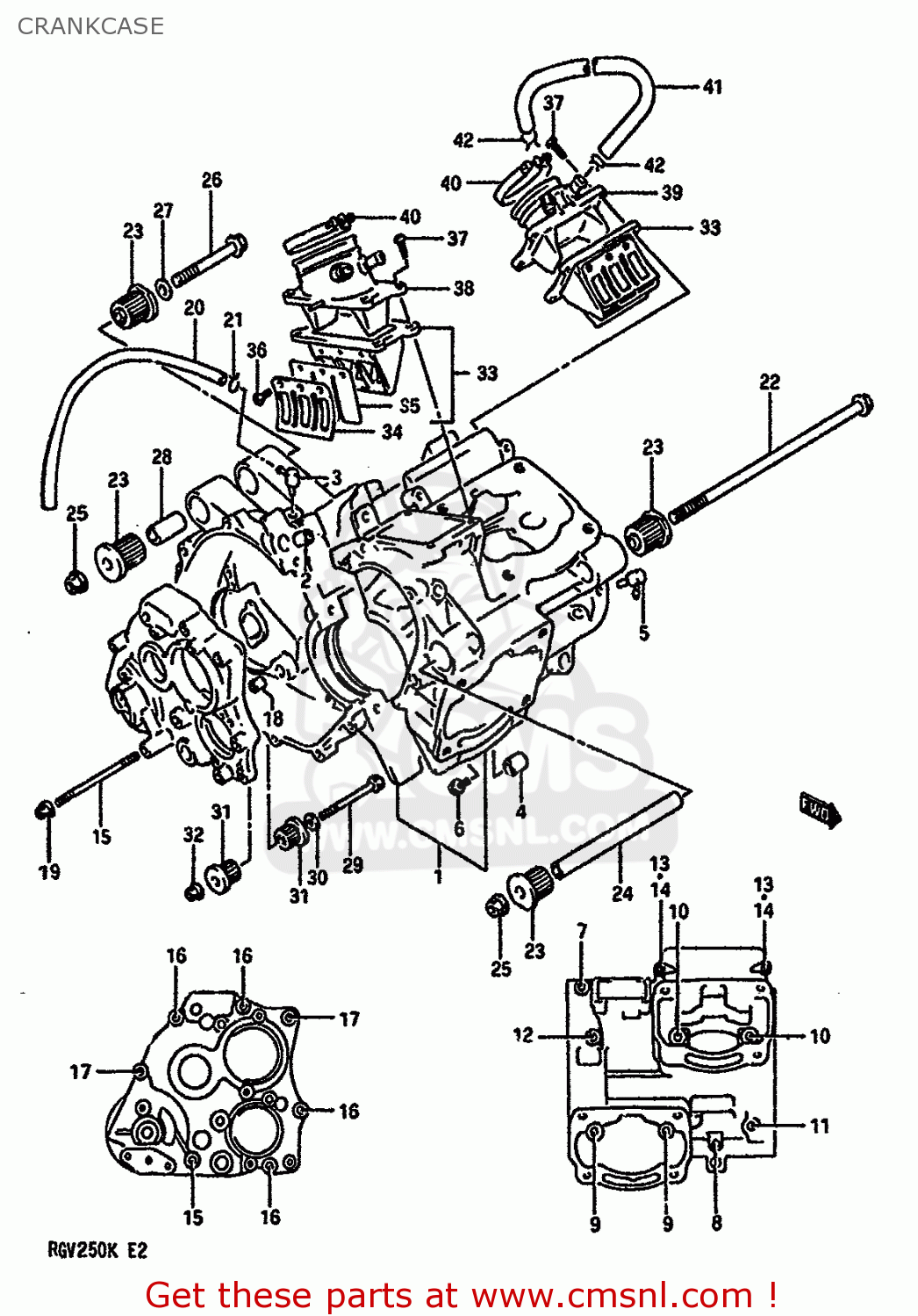

CRANKCASE

ref

part #

description

quantity

1

1130112812
ref: 1

CRANKCASE SET

€ 1,110.00

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

1691009401
ref: 3

UNION,BREATHER HOSE

€ 18.00

4

0918012036
ref: 4

SPACER(12X16X20)

€ 7.50

5

1691035400
ref: 5

VALVE,OIL HOSE CHECK

€ 18.50

6

0151706258
ref: 6

BOLT

€ 2.50

7

0151706408
ref: 7

BOLT

€ 2.50

8

0151706508
ref: 8

BOLT ,6X50

€ 2.00

9

0711008358
ref: 9

BOLT, FRONT RH

€ 4.50

10

0711008408
ref: 10

BOLT

€ 3.50

11

0711008608
ref: 11

BOLT, REAR RH

€ 4.50

12

0910608084
ref: 12

BOLT 8X110

€ 5.50

13

0910806013
ref: 13

STUD

€ 4.00

14

0915906017
ref: 14

NUT

€ 2.50

15

0910806108
ref: 15

BOLT,STUD

€ 4.50

16

0142106308
ref: 16

STUD 6X30

€ 2.50

17

0142106408
ref: 17

STUD BOLT

€ 2.50

18

0920611012
ref: 18

PIN(8.4X11X18)

€ 3.00

19

0831931067
ref: 19

NUT

€ 2.50

20

0935245853500
ref: 20

HOSE

€ 14.00

21

0940108301
ref: 21

CLIP

€ 1.50

22

0910310205
ref: 22

BOLT(10X225)

€ 9.50

23

0931910059
ref: 23

BUSH (10X26.4X33)

€ 25.50

24

0918010123
ref: 24

SPACER

€ 10.50

25

0831931107
ref: 25

NUT

€ 3.00

26

0910010274
ref: 26

BOLT(10X125)

€ 6.50

27

0832211107
ref: 27

WASHER

€ 2.50

28

0918010126
ref: 28

SPACER,10.2X16

€ 10.50

29

0910008276
ref: 29

BOLT(8X70)

€ 4.00

30

0832211088
ref: 30

WASHER

€ 2.00

31

0931908035
ref: 31

BUSH (8.4X16X37.6)

€ 15.00

32

0831931087
ref: 32

NUT

€ 2.50

33

1315012C00
ref: 33

VALVE ASSY,REED

€ 131.00

34

1315212C00
ref: 34

STOPPER,REED VALVE

€ 6.50

35

1315312C00
ref: 35

VALVE,REED

€ 11.50

36

0212203066
ref: 36

SCREW

€ 2.00

37

0211206208
ref: 37

SCREW

€ 2.00

38

1311012C00
ref: 38

PIPE,INTAKE,R

€ 84.00

39

1312012C00
ref: 39

PIPE,INTAKE,L

€ 84.00

40

0940254306
ref: 40

CLAMP

€ 4.00

41

1311513A20
ref: 41
L:2200-1000

HOSE 8X12.5

€ 28.00

42

0940113301
ref: 42

CLIP

€ 2.00
