HANDLE BAR
RGV250 1989 (K) (E02 E04 E21 E24 E34)

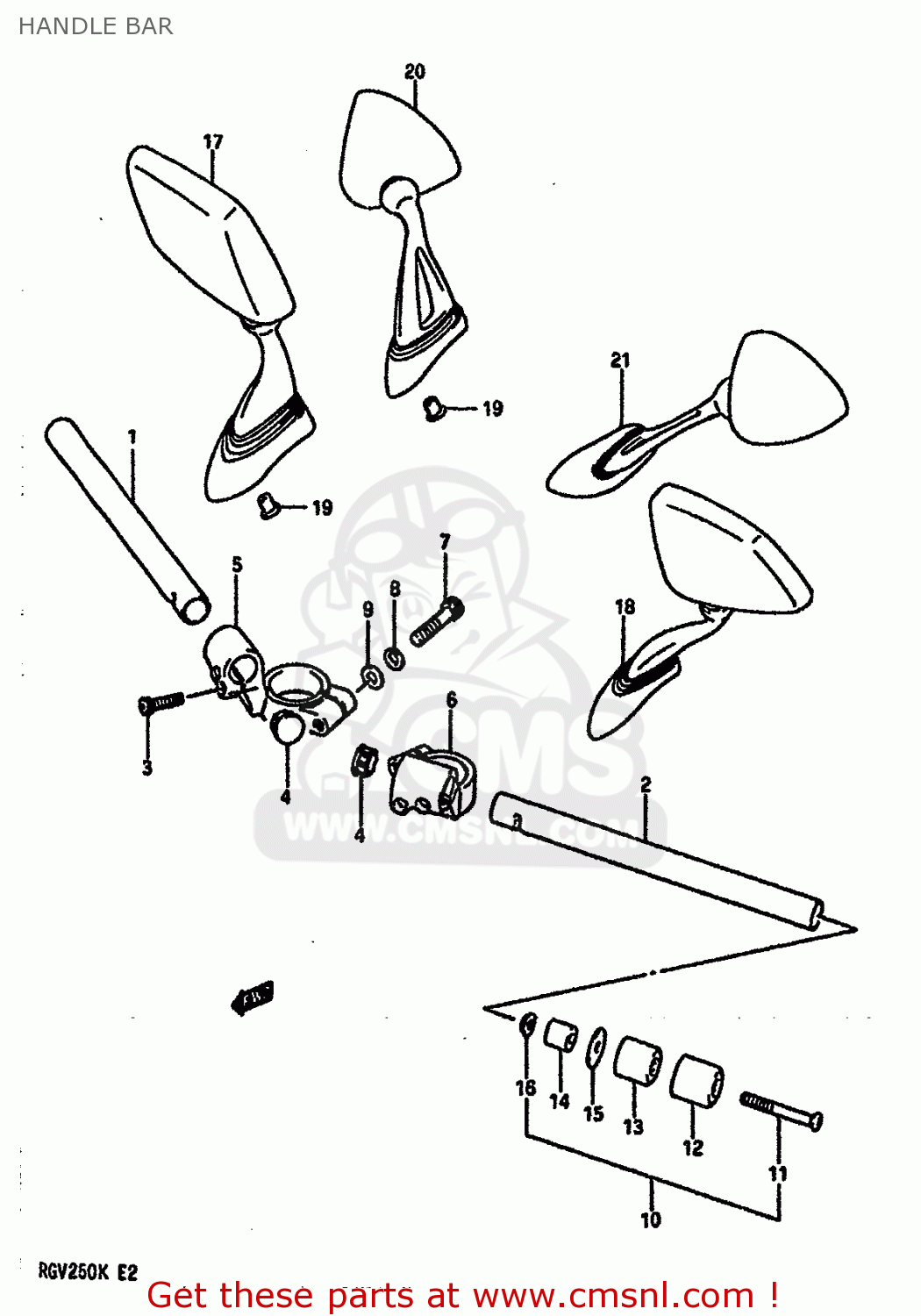

Handle bar diagram RGV250 1989 (K) (E02 E04 E21 E24 E34)
HANDLE BAR RGV250 1989 (K) (E02 E04 E21 E24 E34)
×
prices are in EUR
ref
part #
description
quantity
1
5611112C00
ref: 1
HANDLEBAR,R
€ 25.00
2
5615112C00
ref: 2
HANDLEBAR,L
€ 23.00
3
0711006255
ref: 3
BOLT
€ 3.00
4
5721533400
ref: 4
CAP,HANDLEBAR
€ 4.00
5
5621112C00
ref: 5
HOLDER,HANDLE BAR RH
€ 127.50
6
5622112C00
ref: 6
HOLDER,HANDLE BAR LH
€ 109.00
7
0711008458
ref: 7
BOLT, RH
€ 3.00
8
0832121088
ref: 8
LOCK WASHER
€ 2.00
9
0832211088
ref: 9
WASHER
€ 2.00
10
5620012850
ref: 10
BALANCER SET,HANDLE BAR
€ 98.00
11
0213206657
ref: 11
SCREW
€ 2.00
12
5627412C00
ref: 12
CAP,BALANCER
€ 83.00
13
5627149420
ref: 13
BALANCER,HANDLE
€ 19.50
14
5627204700
ref: 14
EXPANDER,BALANCER
€ 5.00
15
5627534400
ref: 15
SPACER,BALANCER
€ 2.50
16
0915906024
ref: 16
NUT
€ 2.00
17
5650012C10
ref: 17
MIRROR ASSY,REAR VIEW RH
€ 71.00
18
5660012C10
ref: 18
MIRROR ASSY,RR VIEW,L
€ 76.00
19
5661912C00
ref: 19
NUT,RR VIEW MIRROR
€ 8.00
20
5650012C30
ref: 20
E24
MIRROR ASSY,RR VIEW,R
€ 71.00
21
5660012C30
ref: 21
E24
MIRROR ASSY,REAR VIEW LH
€ 0.00
