AIR CLEANER

RM125 2000 (Y)

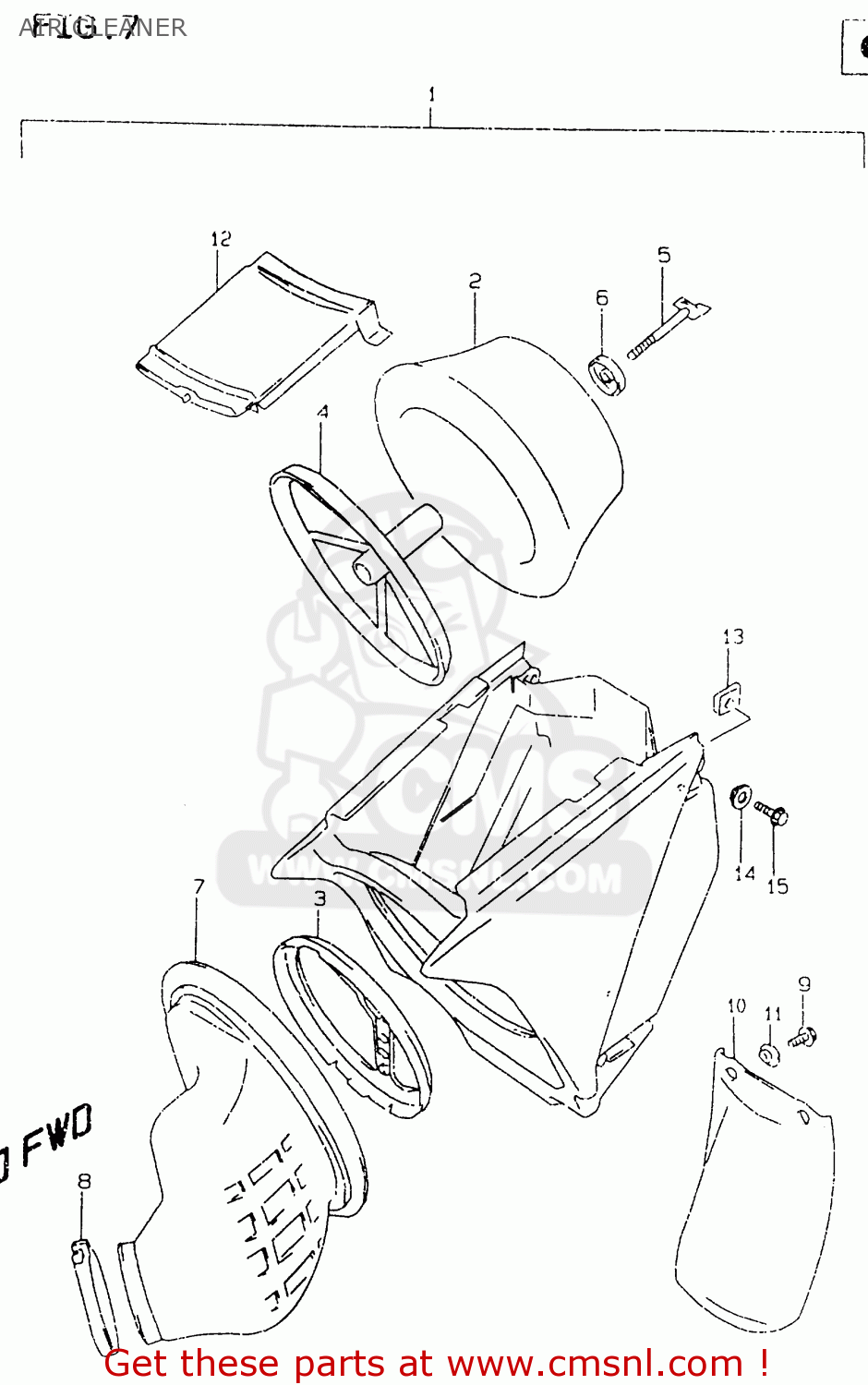

Air cleaner diagram RM125 2000 (Y)

AIR CLEANER RM125 2000 (Y)

AIR CLEANER RM125 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1-1

1370036E00
ref: 1-1
MODEL T/V

CLEANER ASSEMBLY,AIR

€ 270.50

1-2

1370036E10
ref: 1-2
MODEL W

CLEANER ASSEMBLY,AIR

€ 303.00

2

1378036E00
ref: 2

FILTER ASSY

€ 43.00

3

1379036E00
ref: 3

BASE,FILTER

€ 17.50

4

1379136E00
ref: 4

HOLDER,FILTER

€ 14.50

5

1383128E00
ref: 5

BOLT,WING

€ 5.50

6

1379213A01
ref: 6

WASHER,AIR CLEANER

€ 3.00

7-1

1388136E00
ref: 7-1
MODEL T/V

TUBE,OUTLET

€ 56.00

7-2

1388136E10
ref: 7-2
MODEL W

TUBE,OUTLET

€ 50.00

8

0940270203
ref: 8

CLAMP

€ 6.00

9

0154706163
ref: 9

BOLT

€ 2.50

10

1373836E01
ref: 10

MUDGUARD

€ 18.50

11

1383802B00
ref: 11

COLLAR

€ 2.50

12

1374136E00
ref: 12

CAP,AIR CLEANER

€ 13.50

13

7181282010
ref: 13

HOLDER,REAR BU

€ 3.00

14

0916906054
ref: 14

WASHER

€ 2.00

15

0154706203
ref: 15

SCREW

€ 2.50
