REAR MASTER CYLINDER (MODEL T)
RM125 2000 (Y)

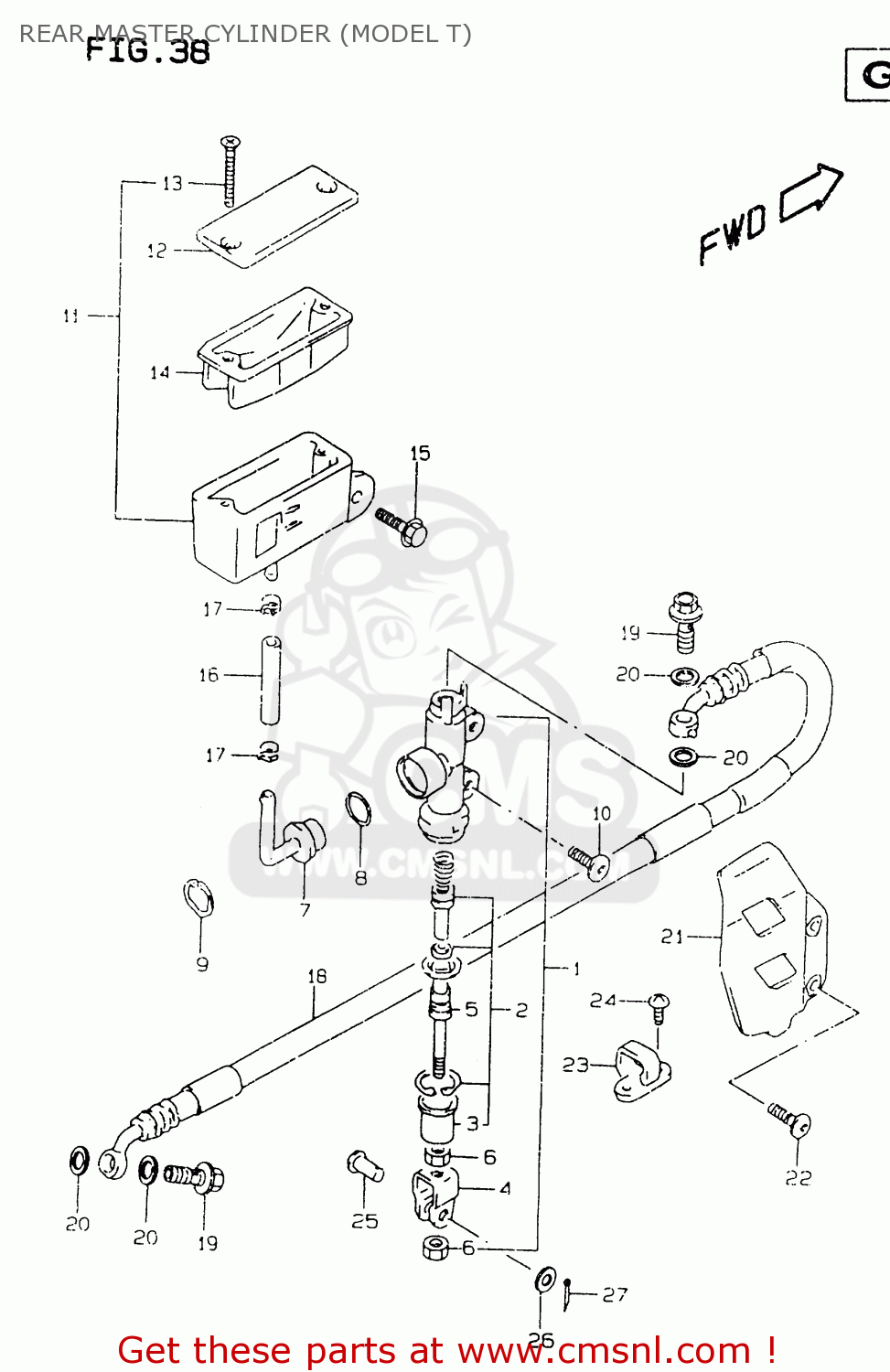

Rear master cylinder (model t) diagram RM125 2000 (Y)
REAR MASTER CYLINDER (MODEL T) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
6960036E00
ref: 1
CYLINDER ASSY,RR MASTER
€ 170.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5
6967036E00
ref: 5
ROD,PUSH
€ 15.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0913906067
ref: 10
SCREW(6X16)
€ 3.00
11
6974036E00
ref: 11
TANK ASSY,RESERVOIR
€ 56.00
12
5966927C01
ref: 12
CAP
€ 10.00
13
6968936E00
ref: 13
SCREW
€ 2.00
14
5966714500
ref: 14
DIAPHRAGM
€ 6.50
15
0154706123
ref: 15
BOLT
€ 2.00
16
6973136E00
ref: 16
HOSE,RESERVOIR TANK
€ 8.50
17
6973500B20
ref: 17
CLAMP,RESERVOIR HOSE
€ 3.00
18
6948036E00
ref: 18
HOSE COMP,REAR BRAKE
€ 94.00
19
0936010042
ref: 19
BOLT UNION
€ 5.00
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
4357036E00
ref: 21
GUARD,RR MASTER CYLINDER
€ 31.50
22
0913906067
ref: 22
SCREW(6X16)
€ 3.00
23
6119627C20
ref: 23
GUIDE,RR BRAKE HOSE
€ 9.00
24
0214205103
ref: 24
SCREW
€ 2.50
25
0920008048
ref: 25
PIN(8X20)
€ 3.00
26
0916008074
ref: 26
WASHER(8.5X13X1.6)
€ 2.50
27
0411120158
ref: 27
PIN
€ 1.50
