CRANKCASE (MODEL W)
RM125 2000 (Y)

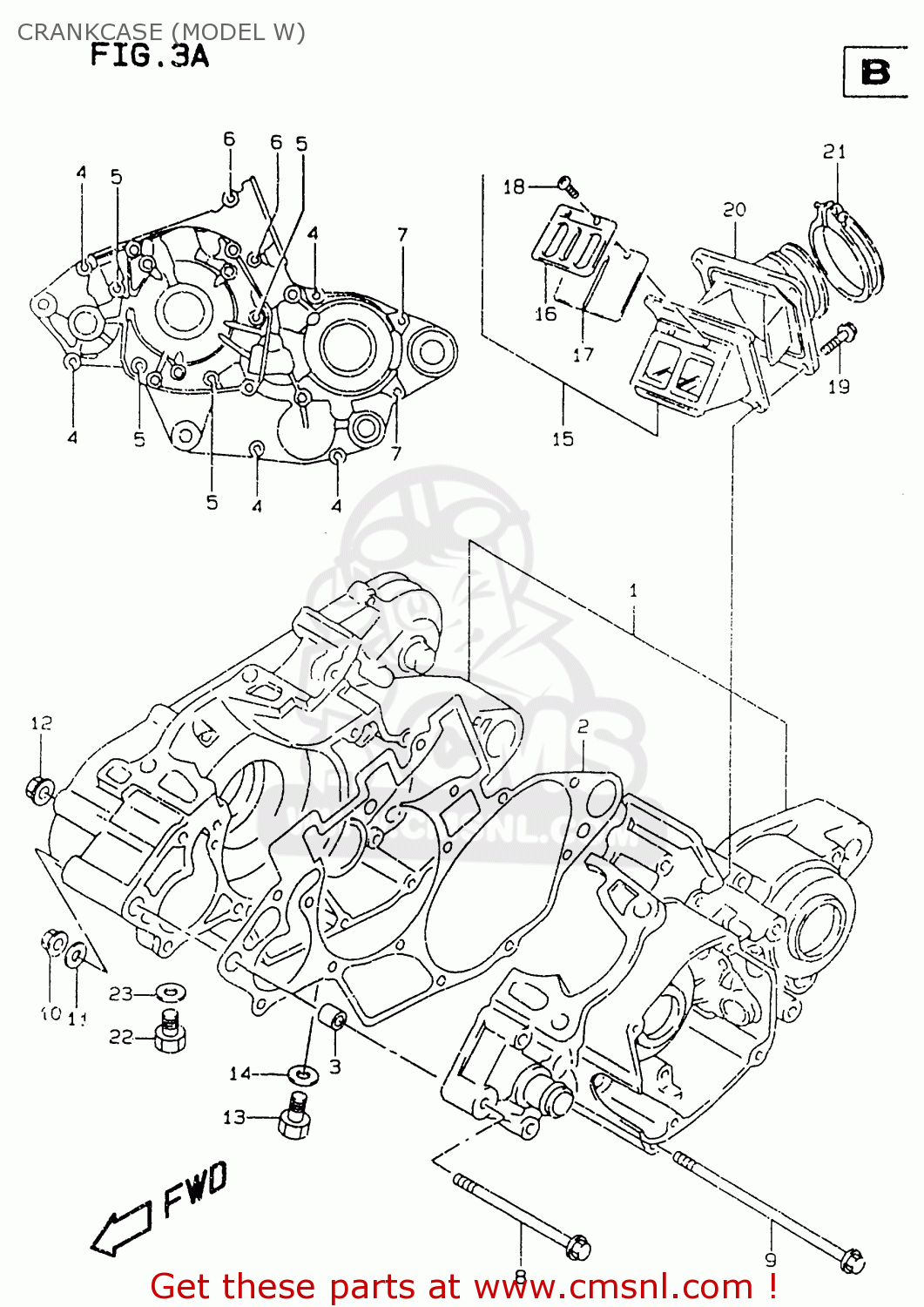

Crankcase (model w) diagram RM125 2000 (Y)
CRANKCASE (MODEL W) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1130036870
ref: 1
CRANKCASE SET
€ 619.50
2
1148136E10
ref: 2
GASKET,CRANKCASE
€ 18.50
3
0920613017
ref: 3
PIN(13X10.4X20)
€ 9.00
4
0154706403
ref: 4
BOLT
€ 3.00
5
0154706453
ref: 5
BOLT
€ 3.00
6
0154706503
ref: 6
BOLT
€ 3.50
7
0154706553
ref: 7
BOLT
€ 3.00
8
0910308010
ref: 8
BOLT(8X88)
€ 55.50
9
0910310122
ref: 9
BOLT(10X130)
€ 9.50
10
0915908034
ref: 10
NUT
€ 2.00
11
0916408020
ref: 11
WASHER
€ 2.50
12
0915910060
ref: 12
NUT
€ 2.00
13
0150012163
ref: 13
Bolt
€ 3.50
14
0916812002
ref: 14
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
15
1315036E00
ref: 15
VALVE ASSY,REED
€ 77.50
16
1315243D00
ref: 16
STOPPER,REED VALVE
€ 6.00
17
1315343D00
ref: 17
VALVE,REED
€ 30.50
18
0211233083
ref: 18
SCREW
€ 2.00
19
0154706203
ref: 19
SCREW
€ 2.50
20
1311036E10
ref: 20
PIPE,INTAKE
€ 46.50
21
0940256208
ref: 21
CLAMP
€ 3.50
22
1741520920
ref: 22
BOLT,DRAIN
€ 5.00
23
0916808008
ref: 23
GASKET 8.2X14X1 (NAS)
€ 1.00
