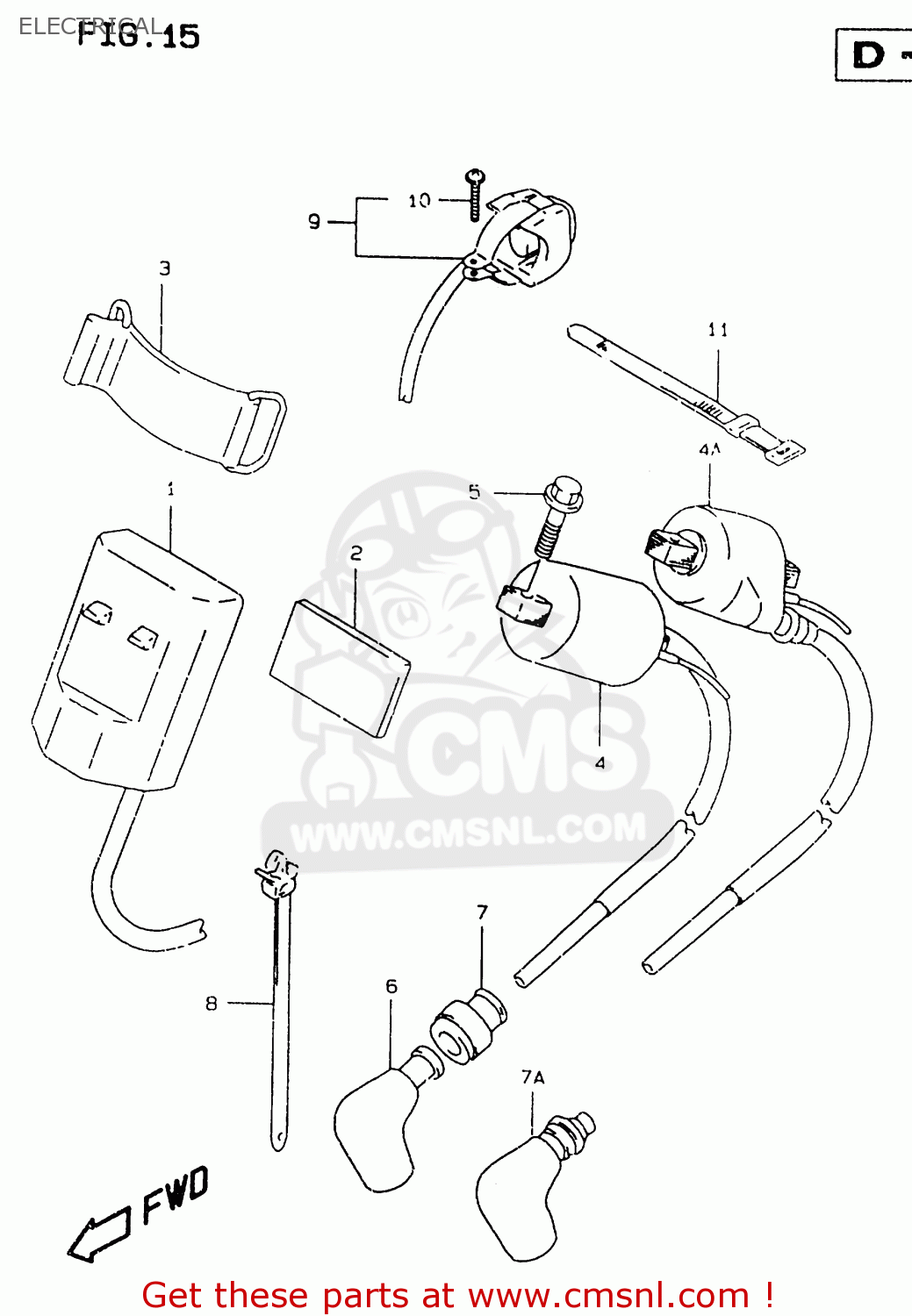

Electrical diagram RM125 2000 (Y)

ELECTRICAL RM125 2000 (Y)

ELECTRICAL RM125 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1-1

3290036E00
ref: 1-1
MODEL T/V

CDI UNIT

€ 476.00

1-2

3290036E10
ref: 1-2
MODEL W

CDI UNIT

€ 403.00

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3294214301
ref: 3

BAND,CDI UNIT(L:80)

€ 10.00

4

3341036E00
ref: 4
MODEL T/V

COIL ASSY,IGNITION

€ 119.00

4A

3341037E00
ref: 4A
MODEL W

COIL ASSEMBLY,IGNITION

€ 65.00

5

0154706163
ref: 5

BOLT

€ 2.50

6

3351020A01
ref: 6
MODEL T, <-33510-20A

CAP,SPARK PLUG

€ 23.00

7

3354238B00
ref: 7
MODEL T

SEAL,HIGH TENSION CORD

€ 4.50

7A

3351020A01
ref: 7A
MODEL V/W

CAP,SPARK PLUG

€ 23.00

8-1

0940711402
ref: 8-1
MODEL T/V

CLAMP(L:90)

€ 2.50

8-2

0940717401
ref: 8-2
MODEL W

CLAMP

€ 5.00

9

3782036E00
ref: 9

SWITCH ASSY,ENGINE STOP

€ 21.00

10

0211233165
ref: 10

SCREW

€ 1.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
