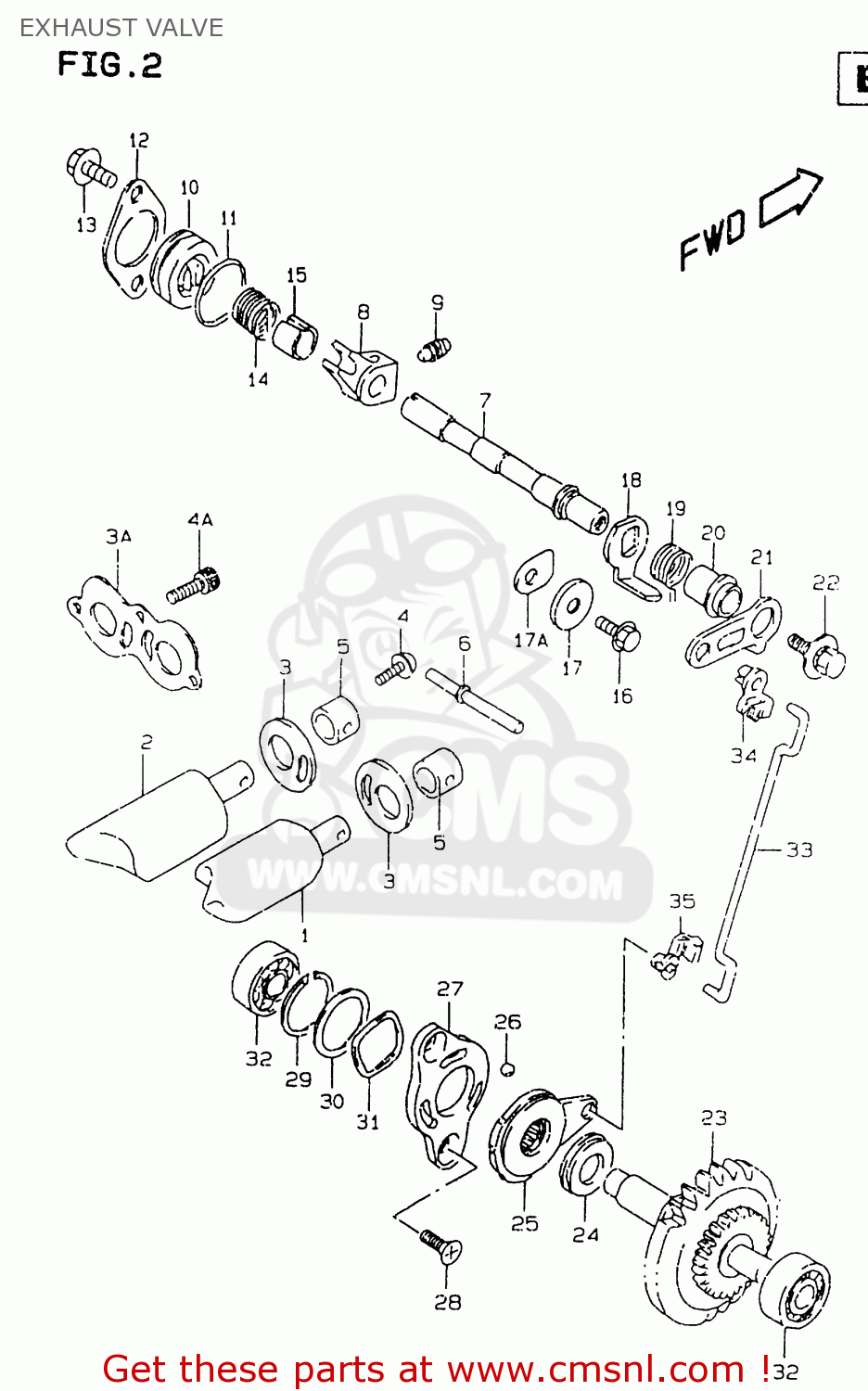

EXHAUST VALVE

ref

part #

description

quantity

1-1

1125436E00
ref: 1-1
MODEL T/V

VALVE,EXHAUST,RIGHT

€ 151.00

1-2

1125436E10
ref: 1-2
MODEL W

VALVE,EXHAUST,R

€ 151.00

2-1

1125536E00
ref: 2-1
MODEL T/V

VALVE,EXHAUST,LEFT

€ 151.00

2-2

1125536E10
ref: 2-2
MODEL W

VALVE,EXHAUST,L

€ 151.00

3

1126136E00
ref: 3
MODEL T

PLATE,EXHAUST VALVE

€ 5.50

3A

1126136E10
ref: 3A
MODEL V/W

PLATE,EXHAUST VALVE

€ 12.50

4

0211215123
ref: 4
MODEL T

SCREW 5X12

€ 1.50

4A

0713005123
ref: 4A
MODEL V/W

BOLT

€ 2.50

5

1126308D11
ref: 5

SPACER,EXHAUST VALVE

€ 13.00

6

1125319D80
ref: 6

PIN,EXHAUST VALVE

€ 29.50

7-1

1125927C30
ref: 7-1
MODEL T

SHAFT,EXHAUST VALVE

€ 60.00

7-2

1125936E00
ref: 7-2
MODEL V/W

SHAFT,EXHAUST VALVE

€ 72.50

8

1126400B23
ref: 8

ARM,EXHAUST VALVE SHAFT

€ 17.00

9

0913406013
ref: 9

SCREW(6X10)

€ 4.50

10

1125827C01
ref: 10

CAP,EXHAUST VALVE

€ 52.00

11

0928023002
ref: 11

O RING(D:1.9,ID:22.6)

€ 2.50

12

1126500B21
ref: 12

RETAINER,EXHAUST VALVE

€ 2.50

13

0216205123
ref: 13

BOLT

€ 2.00

14-1

0944416008
ref: 14-1
MODEL T

SPRING

€ 7.00

14-2

1125736E00
ref: 14-2
MODEL V/W

SPRING,EXHAUST VALVE

€ 6.00

15

1126900B20
ref: 15
MODEL T/V

SPACER,EXHAUST VALVE SPRING

€ 19.00

16

0154706103
ref: 16

BOLT

€ 3.00

17

0821206201
ref: 17
MODEL T

WASHER

€ 1.50

17A

2474121A00
ref: 17A
MODEL V/W

RETAINER

€ 2.00

18

1126700B21
ref: 18

LEVER,EXHAUST VALVE NO.2

€ 5.50

19-1

0944415010
ref: 19-1
MODEL T

SPRING

€ 5.50

19-2

0944416010
ref: 19-2
MODEL V/W

SPRING

€ 9.00

20

1126801B00
ref: 20

SPACER,EXHAUST VALVE

€ 8.50

21

1126600B21
ref: 21

LEVER,EXHAUST VALVE NO.1

€ 3.50

22

0911805003
ref: 22

BOLT(5X12)

€ 4.00

23-1

1267027C10
ref: 23-1
MODEL T

GOVERNOR ASSY,EXHAUST VALVE

€ 86.00

23-2

1267036E00
ref: 23-2
MODEL V

GOVERNOR ASSEMBLY,EXHAUST

€ 90.00

23-3

1267036E10
ref: 23-3
MODEL W

GOVERNOR ASSEMBLY,EXHAUST

€ 90.00

24

0926310002
ref: 24

BEARING(10X22X2.8)

€ 8.50

25

1268001820
ref: 25

ACTUATOR,EXHAUST VALVE

€ 47.50

26

0611106003
ref: 26

BALL

€ 1.50

27

1268201B02
ref: 27

STARTER,EXHAUST VALVE ACTUATOR

€ 26.50

28

0912005003
ref: 28

SCREW(5X10)

€ 2.00

29

0938019003
ref: 29

CIRCLIP

€ 2.50

30

0918119004
ref: 30

SHIM(19.1X25X0.3)

€ 4.00

31

0916419001
ref: 31

WASHER

€ 7.00

32

0926208005
ref: 32

BEARING(8X22X7)

€ 12.50

33-1

1268527C00
ref: 33-1
MODEL T

ROD,EXHAUST VALVE

€ 7.50

33-2

1268536E00
ref: 33-2
MODEL V

ROD,EXHAUST VALVE

€ 6.50

33-3

1268536E10
ref: 33-3
MODEL W

ROD,EXHAUST VALVE

€ 4.00

34-1

1268601B00
ref: 34-1
MODEL T

BUSH,EXHAUST VALVE ROD NO.1

€ 2.00

34-2

1268636E00
ref: 34-2
MODEL V/W

BUSH,EXHAUST VALVE ROD NO.1

€ 2.00

35

1268701B00
ref: 35

BUSH,EXHAUST VALVE ROD NO.2

€ 2.00

all assemblies
