CYLINDER
RM125 2000 (Y)

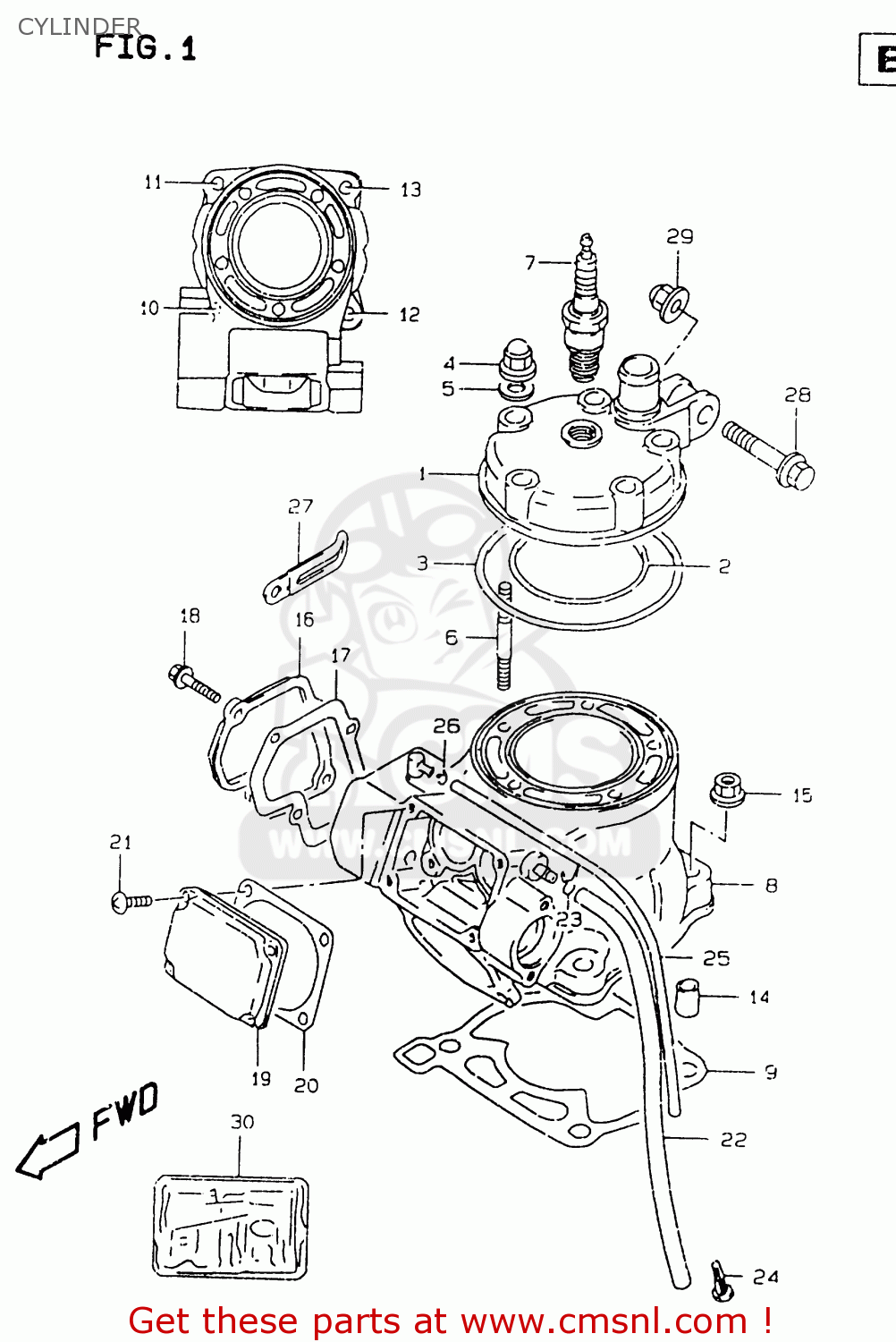

Cylinder diagram RM125 2000 (Y)
CYLINDER RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1111127C34
ref: 1
HEAD,CYLINDER
€ 123.00
2
1114727C11
ref: 2
O RING,CYLINDER HEAD NO.1
€ 12.00
3
1114827C11
ref: 3
O RING,CYLINDER HEAD NO.2
€ 6.50
4-1
0915908074
ref: 4-1
MODEL T
NUT
€ 7.00
4-2
0915908049
ref: 4-2
MODEL V/W
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808231
ref: 6
BOLT,STUD
€ 4.50
7
0948200509
ref: 7
PLUG,SPARK(R6918B-8)
€ 81.50
8-1
1120027870
ref: 8-1
MODEL T
CYLINDER
€ 582.00
8-2
1120036810
ref: 8-2
MODEL V
CYLINDER
€ 508.50
8-3
1120036820
ref: 8-3
MODEL W
CYLINDER SET
€ 695.00
9
1124127C10
ref: 9
GASKET,CYLINDER (NAS)
€ 11.00
10
0142108258
ref: 10
STUD 8X25
€ 2.50
11
0910808142
ref: 11
BOLT,STUD
€ 3.00
12
0142108358
ref: 12
STUD BOLT
€ 2.00
13
0910808144
ref: 13
BOLT,STUD
€ 4.50
14
0920611004
ref: 14
PIN(8.4X11X14)
€ 6.00
15
0831610083
ref: 15
NUT
€ 3.00
16
1123127C30
ref: 16
COVER,CYLINDER NO.1
€ 25.00
17-1
1123327C32
ref: 17-1
MODEL T
GASKET,CYLINDER COVER NO.1 (NAS)
€ 6.50
17-2
1123327C33
ref: 17-2
MODEL V/W
GASKET,CYLINDER COVER NO.1 (NAS)
€ 6.50
18
0154706163
ref: 18
BOLT
€ 2.50
19-1
1124827C30
ref: 19-1
MODEL T
COVER,CYLINDER NO.2
€ 44.50
19-2
1124836E00
ref: 19-2
MODEL V/W
COVER,CYLINDER NO.2
€ 24.50
20-1
1123827C31
ref: 20-1
MODEL T
GASKET,CYLINDER COVER NO.2 (NAS)
€ 5.00
20-2
1123836E00
ref: 20-2
MODEL V/W
GASKET,CYLINDER COVER NO.2
€ 5.00
21-1
0211205163
ref: 21-1
MODEL T/V
SCREW
€ 2.00
21-2
0216205163
ref: 21-2
MODEL W
BOLT
€ 1.50
22
0934309501
ref: 22
HOSE
€ 13.50
23
0940112405
ref: 23
CLIP
€ 3.00
24
1127128E20
ref: 24
FILTER,EXH VALVE BREATHER HOSE
€ 12.00
25
0935250823600
ref: 25
L:600->390
HOSE(5X8.2X600)
€ 13.00
26
0940108401
ref: 26
CLIP
€ 1.50
27
0940406429
ref: 27
MODEL T/V
CLAMP(L:45)
€ 2.50
28
0910308083
ref: 28
BOLT(8X41)
€ 3.50
29
0915908067
ref: 29
NUT
€ 5.50
30-1
1140043865
ref: 30-1
MODEL T
GASKET SET (NAS)
€ 147.00
30-2
1140036881
ref: 30-2
MODEL V
GASKET SET (NAS)
€ 65.50
30-3
1140036890
ref: 30-3
MODEL W
GASKET SET (NAS)
€ 84.00
