REAR SWINGING ARM (MODEL W)
RM125 2000 (Y)

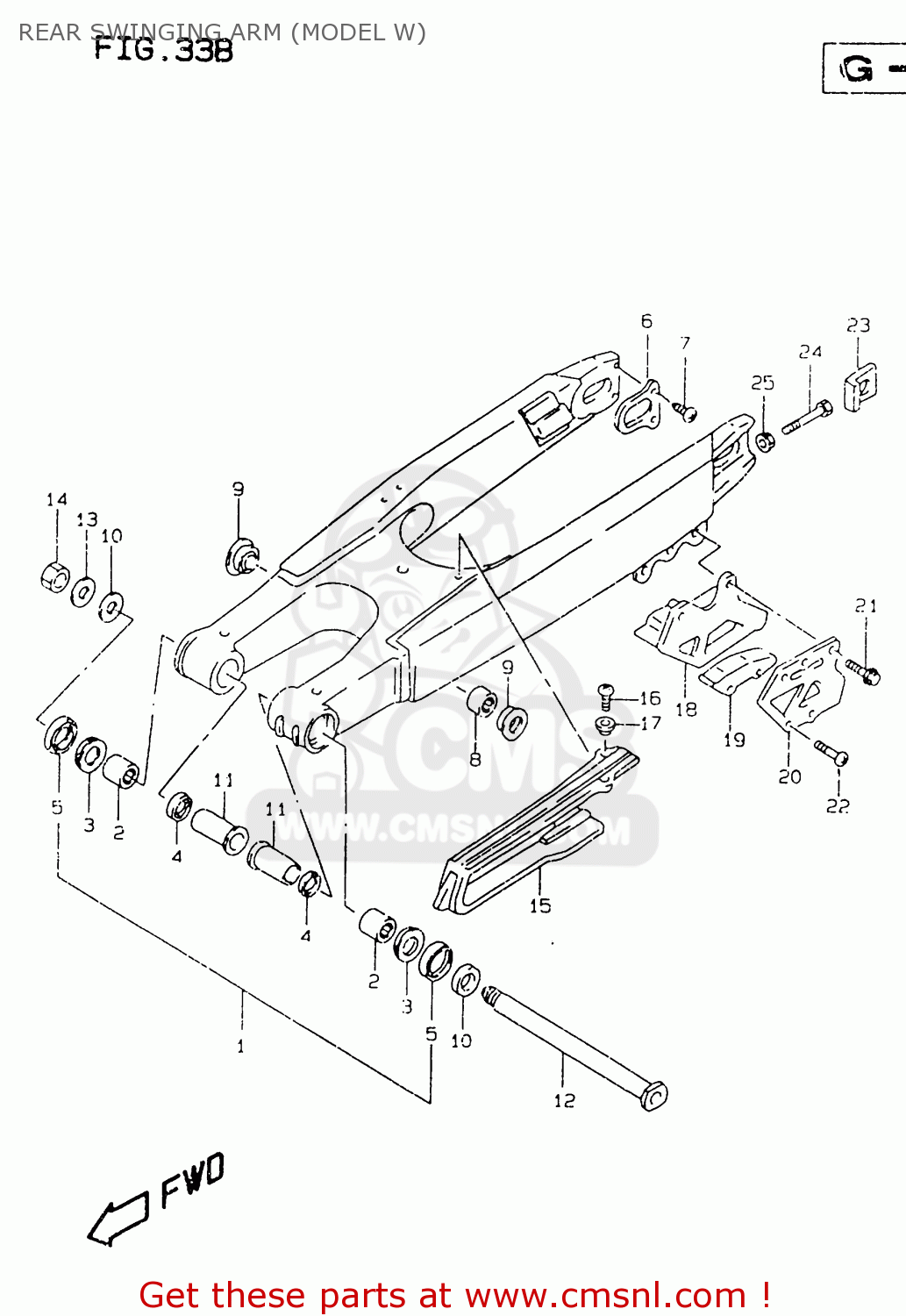

Rear swinging arm (model w) diagram RM125 2000 (Y)
REAR SWINGING ARM (MODEL W) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
6100037E00
ref: 1
SWING ARM ASSEMBLY,REAR
€ 961.50
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
0926322064
ref: 3
BEARING(22X35X2)
€ 19.00
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
€ 5.00
5
6126236E00
ref: 5
SEAL,RR SWGARM PIVOT OUTER
€ 3.50
6
6112837E00
ref: 6
PLATE,SWING ARM RR
€ 14.00
7
0212204103
ref: 7
SCREW,UPPER
€ 2.50
8
0926322066
ref: 8
BEARING(22X28X16)
€ 14.50
9
6262437E00
ref: 9
SEAL,SWINGING ARM RR
€ 7.00
10
6125136E01
ref: 10
SPACER,RR SWGARM PIVOT OUTER
€ 6.00
11
6125236E00
ref: 11
SPACER,SWGARM PIVOT INNER
€ 20.00
12
6121128C00
ref: 12
SHAFT,RR SWINGINGARM PIVOT
€ 46.50
13
0832201163
ref: 13
WASHER, FIXED DRIVE FACE
€ 2.00
14
0915916007
ref: 14
NUT
€ 10.50
15
6127336E10
ref: 15
BUFFER,CHAIN TOUCH DEFENSE
€ 39.50
16
0211205123
ref: 16
SCREW
€ 1.50
17
0916905022
ref: 17
WASHER
€ 3.50
18
6134127C20
ref: 18
GUIDE,CHAIN
€ 30.50
19
6134827C20
ref: 19
DEFENSE,CHAIN GUIDE
€ 26.50
20
6134228E00
ref: 20
PLATE,CHAIN GUIDE OUTER
€ 39.00
21
0154706203
ref: 21
SCREW
€ 2.50
22
0912606013
ref: 22
SCREW(6X40)
€ 5.00
23
6144528E10
ref: 23
WASHER,CHAIN ADJUSTER
€ 23.00
24
0910008287
ref: 24
BOLT(8X50)
€ 3.00
25
0915908034
ref: 25
NUT
€ 2.00
