SHOCK ABSORBER (MODEL W)
RM125 2000 (Y)

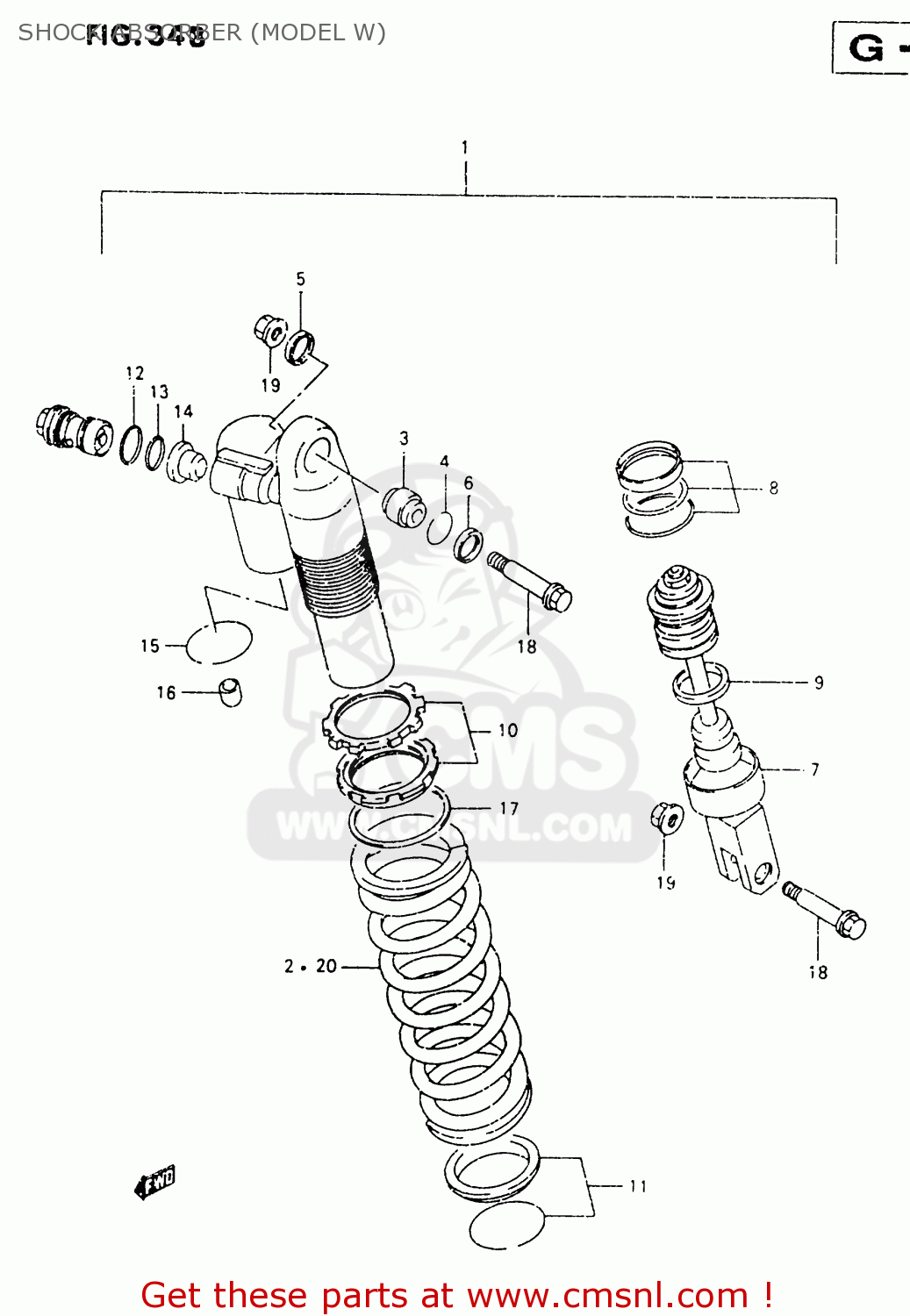

Shock absorber (model w) diagram RM125 2000 (Y)
SHOCK ABSORBER (MODEL W) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
6210036E70Y5H
ref: 1
ABSORBER ASSY, RR SHOCK (BLUE)
€ 1,142.50
2
6221136E20
ref: 2
SPRING,REAR (K=4.7)
€ 193.00
3
6217536E00
ref: 3
BEARING,RR SHOCK ABSORBER
€ 55.50
4
6227727C40
ref: 4
RING,STOPPER
€ 2.00
5
6222636E00
ref: 5
SEAL,DUST UPR,R
€ 5.00
6
6222636E10
ref: 6
SEAL,DUST UPR,L
€ 5.00
7
6212036E60
ref: 7
ROD,PISTON
€ 476.00
8
6215036E50
ref: 8
O RING SET
€ 33.50
9
6227936E50
ref: 9
RING,STOPPER
€ 6.00
10
6219036E50
ref: 10
ADJUSTER SET
€ 77.00
11
6222036E50
ref: 11
SPRING SEAT SET
€ 39.00
12
6213128E00
ref: 12
O RING
€ 3.50
13
5117443D00
ref: 13
O RING,CTR BOLT UPR
€ 3.00
14
6222736E00
ref: 14
COLLAR,ORIFICE
€ 12.00
15
6227836E00
ref: 15
RING,STOPPER
€ 6.00
16
5129420400
ref: 16
CAP
€ 3.50
17
6219536E50
ref: 17
SEAT,SPRING
€ 13.00
18
0910310149
ref: 18
BOLT(10X47.5)
€ 3.50
19
0915910058
ref: 19
NUT
€ 4.00
20-1
6221136E10
ref: 20-1
OPT
SPRING,REAR (K=4.5)
€ 243.00
20-2
6221136E30
ref: 20-2
OPT
SPRING,REAR (K=4.9)
€ 243.00
