CRANKCASE COVER- WATER PUMP (MODEL W)
RM125 2000 (Y)

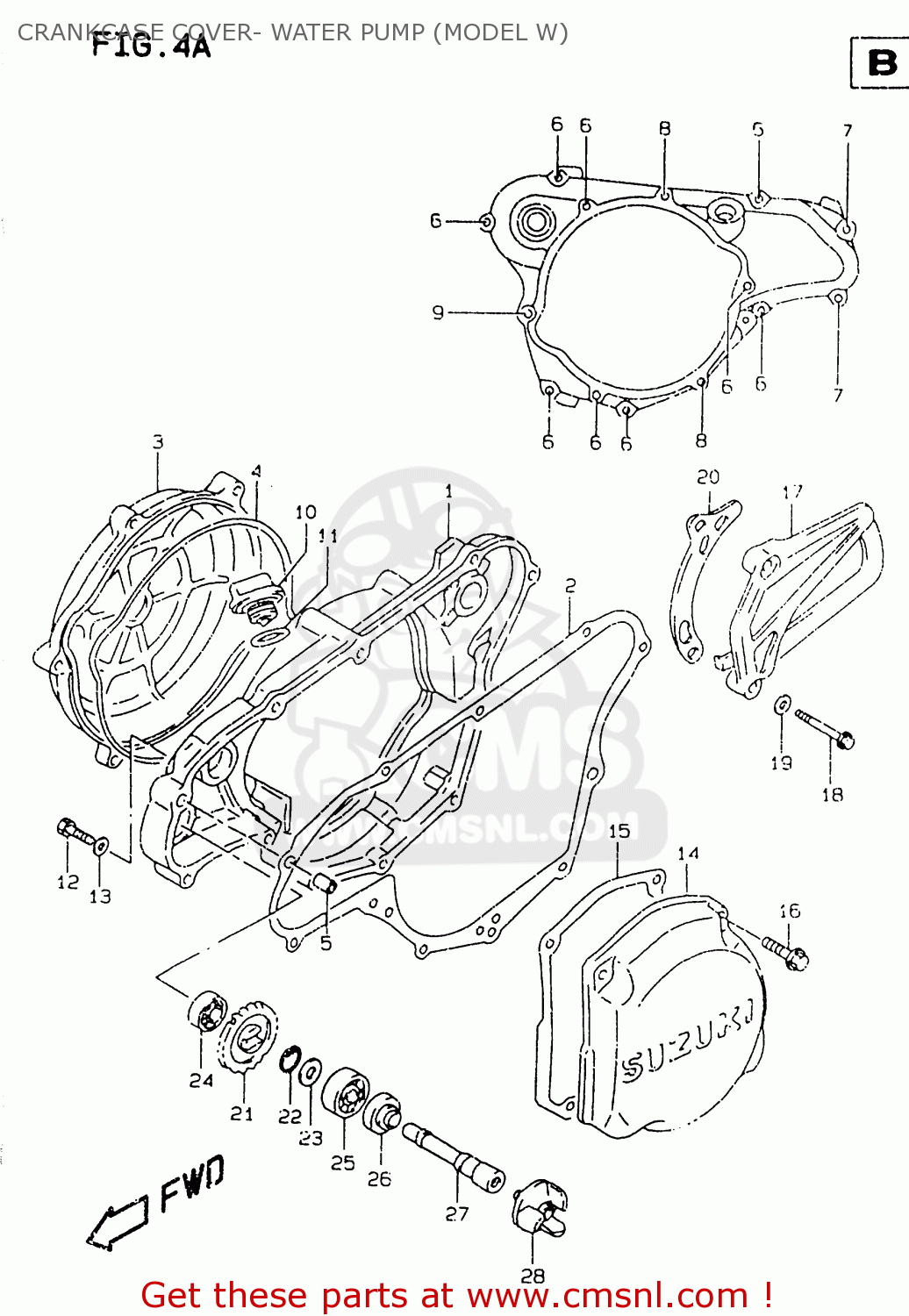

Crankcase cover- water pump (model w) diagram RM125 2000 (Y)
CRANKCASE COVER- WATER PUMP (MODEL W) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1134136E10
ref: 1
COVER,CLUTCH
€ 184.00
2
1148236E10
ref: 2
GASKET,CLUTCH COVER
€ 14.50
3
1137136E10
ref: 3
COVER,CLUTCH,OUTER
€ 121.00
4
1148436E10
ref: 4
O RING,CLUTCH COVER OUTER
€ 16.00
5
0421109129
ref: 5
PIN
€ 2.00
6
0154706253
ref: 6
SCREW
€ 2.50
7
0154706303
ref: 7
BOLT,G/S SWITC
€ 3.00
8
0154706653
ref: 8
BOLT
€ 2.00
9
0154706703
ref: 9
BOLT
€ 3.00
10
1197112C51
ref: 10
PLUG,OIL FILLER
€ 7.00
11
0928017003
ref: 11
O RING(D:3.1,ID:16.8)
€ 2.00
12
0912806004
ref: 12
SCREW(6X10)
€ 1.50
13
0916806004
ref: 13
GASKET(6.2X11X1).2 (NAS)
€ 1.50
14
1135136E10
ref: 14
COVER,MAGNETO
€ 114.00
15
1148336E10
ref: 15
GASKET,MAGNETO COVER
€ 6.00
16
0154706203
ref: 16
SCREW
€ 2.50
17
1136036E00
ref: 17
COVER,ENGINE SPROCKET
€ 27.00
18
0154706303
ref: 18
BOLT,G/S SWITC
€ 3.00
19
0916006126
ref: 19
WASHER(6.5X14X2)
€ 2.00
20
2764137E00
ref: 20
PLATE,FR CHAIN GUIDE
€ 7.00
21
1744136E10
ref: 21
GEAR,WATER PUMP DRIVEN
€ 38.50
22
0833131106
ref: 22
CIRCLIP,10MM
€ 2.00
23
0918110111
ref: 23
SHIM(10X14X1)
€ 2.00
24
0926208005
ref: 24
BEARING(8X22X7)
€ 12.50
25
0926210014
ref: 25
BEARING(10X26X8)
€ 13.00
26
1746128C10
ref: 26
SEAL,WATER PUMP OIL
€ 7.00
27
1751136E10
ref: 27
SHAFT,WATER PUMP
€ 81.00
28
1749136E10
ref: 28
IMPELLER,WATER PUMP
€ 20.00
