GEAR SHIFTING (MODEL W)
RM125 2000 (Y)

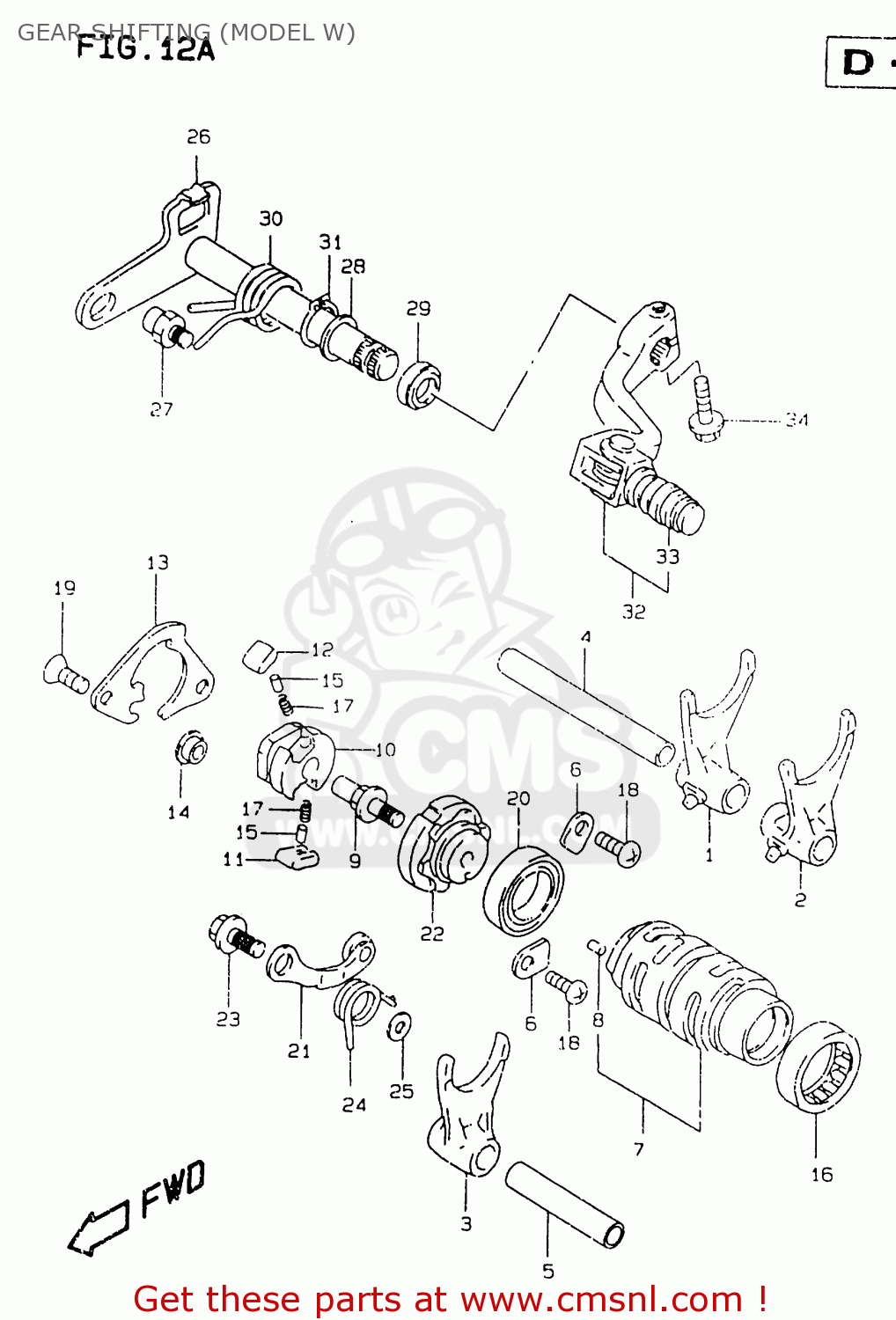

Gear shifting (model w) diagram RM125 2000 (Y)
GEAR SHIFTING (MODEL W) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
2521136E10
ref: 1
FORK,GEAR SHIFT NO.1
€ 63.00
2
2522136E10
ref: 2
FORK,GEAR SHIFT NO.2
€ 63.00
3
2523136E10
ref: 3
FORK,GEAR SHIFT NO.3
€ 63.00
4
2541127C00
ref: 4
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542127C00
ref: 5
SHAFT,GEAR SHIFT FORK
€ 9.50
6
2474121A00
ref: 6
RETAINER
€ 2.00
7
2531036E10
ref: 7
CAM,GEAR SHIFT
€ 121.00
8
0422104089
ref: 8
PIN
€ 1.50
9
2531327C02
ref: 9
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
10
2532233C01
ref: 10
SHIFTER,GEAR SHIFT CAM
€ 49.50
11
2532334201
ref: 11
PAWL,GEAR SHIFT NO.1
€ 6.00
12
2532434201
ref: 12
PAWL,GEAR SHIFT NO.2
€ 6.00
13
2533137E00
ref: 13
LIFTER,GEAR SHIFT PAWL
€ 12.50
14
0918007014
ref: 14
SPACER(7X10X5)
€ 4.00
15
0926105003
ref: 15
PIN(5X8)
€ 1.50
16
0926333004
ref: 16
33X38X18
BEARING(33X38X8)
€ 21.50
17
0944004003
ref: 17
SPRING
€ 1.50
18
0211206103
ref: 18
SCREW
€ 1.50
19
0212206123
ref: 19
SCREW
€ 3.00
20
0814069050
ref: 20
BEARING
€ 28.50
21
2535028C20
ref: 21
STOPPER,SHIFT CAM
€ 12.00
22
2538128C20
ref: 22
PLATE,SHIFT CAM STOPPER
€ 31.50
23
0911106041
ref: 23
BOLT(6X14.3)
€ 3.00
24
0944818024
ref: 24
SPRING
€ 3.50
25
0821106121
ref: 25
WASHER
€ 2.00
26
2551037E00
ref: 26
SHAFT,GEAR SHIFT
€ 61.00
27
2567138B00
ref: 27
STOPPER,SHIFT ARM
€ 3.00
28
0918114139
ref: 28
SHIM(14X20X1)
€ 2.50
29
0928314006
ref: 29
SEAL,OIL(14X22X6)
€ 6.50
30
0944420005
ref: 30
SPRING
€ 15.50
31
0833131146
ref: 31
CIRCLIP
€ 2.00
32
2560036E10
ref: 32
LEVER ASSEMBLY,GEAR SHIFTING
€ 48.50
33
2565227C00
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 21.00
34
0154706253
ref: 34
SCREW
€ 2.50
