FRONT DAMPER (MODEL W)
RM125 2000 (Y)

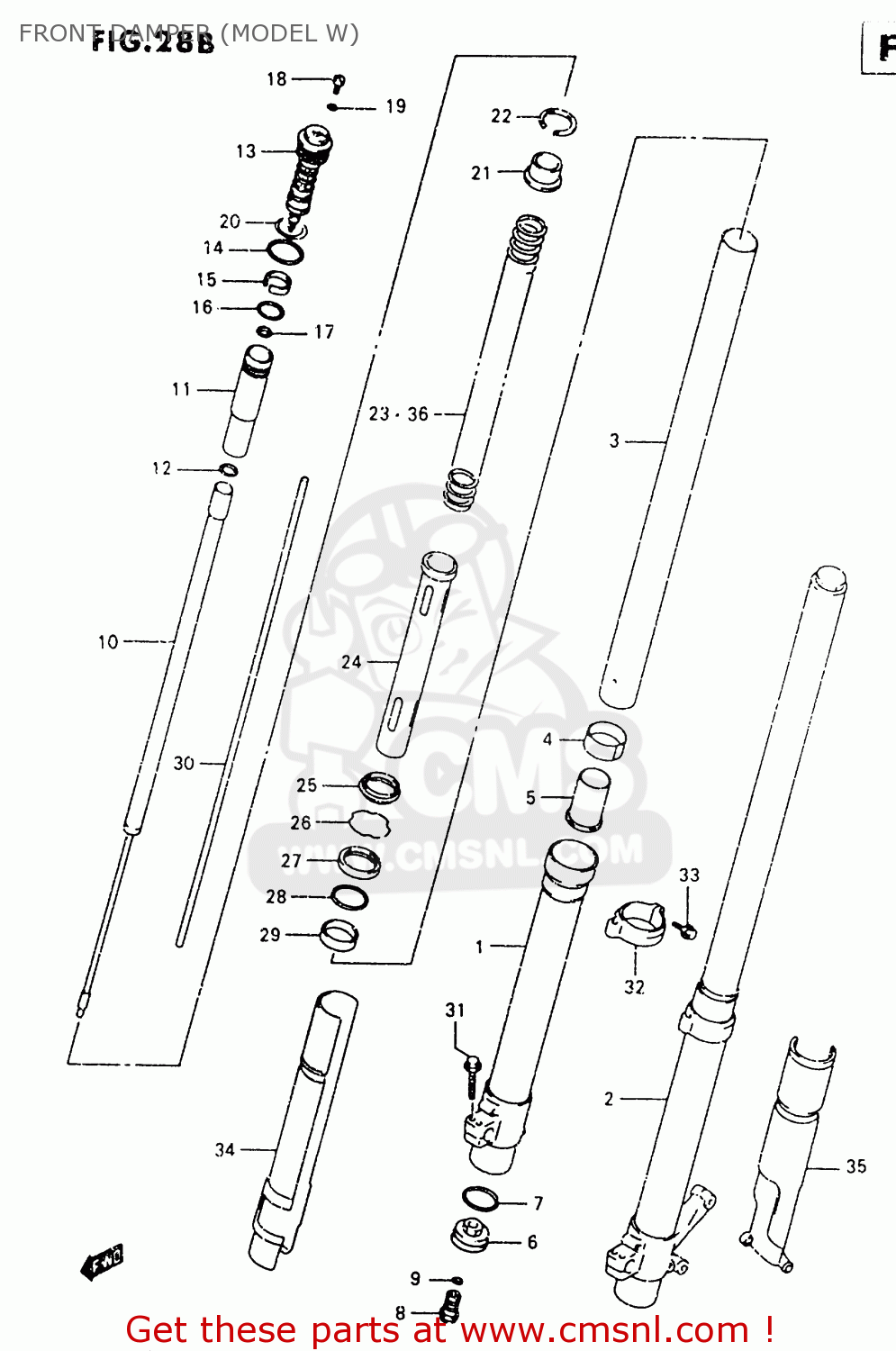

Front damper (model w) diagram RM125 2000 (Y)
FRONT DAMPER (MODEL W) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
0
5110336E50
ref: 0
DAMPER ASSEMBLY,FRONT FORK
€ 1,395.00
0
5110436E50
ref: 0
DAMPER ASSY, FRONT FORK LH
€ 1,395.00
1
5113036E40
ref: 1
TUBE,OUTER,R
€ 594.50
2
5114036E40
ref: 2
TUBE,OUTER,LEFT
€ 463.50
3
5111036E40
ref: 3
TUBE,INNER
€ 363.00
4
5112136E40
ref: 4
BUSH,SLIDE
€ 19.00
5
5119536E50
ref: 5
PIECE,OIL LOCK
€ 40.00
6
5120536E00
ref: 6
PLATE,END
€ 41.00
7
5111727C40
ref: 7
O RING
€ 3.50
8
5117036E40
ref: 8
BOLT,CTR
€ 121.50
9
5117728E30
ref: 9
O RING,CTR BOLT
€ 2.50
10
5119036E50
ref: 10
ROD,FRONT DAMPER
€ 486.00
11
5119836E40
ref: 11
TANK,SUB
€ 125.50
12
5117436E30
ref: 12
O-RING
€ 3.50
13
5135136E50
ref: 13
BOLT,FORK
€ 249.50
14
5111736E00
ref: 14
O RING
€ 3.50
15
5112336E40
ref: 15
BUSHING,SLIDE
€ 9.50
16
5117436E40
ref: 16
O RING
€ 2.50
17
5117536E20
ref: 17
O RING
€ 2.50
18
5135728E30
ref: 18
BOLT,PLUG
€ 8.00
19
5135828E30
ref: 19
O RING,PLUG
€ 2.50
20
5111729EA0
ref: 20
O RING
€ 5.50
21
5135536E20
ref: 21
SPRING,STOPPER
€ 15.00
22
5135436E20
ref: 22
RING,STOPPER
€ 2.50
23
5117136E50
ref: 23
SPRING,FRONT (K=0.40)
€ 63.00
24
5117636E40
ref: 24
COLLAR,SPRING
€ 115.50
25
5117336E00
ref: 25
SEAL,DUST
€ 19.50
26
5115636E00
ref: 26
RING,STOPPER
€ 4.50
27
5115336E00
ref: 27
SEAL,OIL
€ 19.00
28
5115836E00
ref: 28
SPACER,SEAL
€ 5.00
29
5116736E40
ref: 29
BUSH,GUIDE
€ 19.50
30
5119136E20
ref: 30
ROD,PUSH
€ 10.00
31
5132127C40
ref: 31
BOLT,HANDLE HOLDER(8X35)
€ 3.00
32-1
5121136E00
ref: 32-1
GUIDE,FR PROTECTOR,R
€ 33.50
32-2
5122136E00
ref: 32-2
GUIDE,FR PROTECTOR,L
€ 33.50
33
0154706207
ref: 33
BOLT
€ 2.50
34
5155136E101KY
ref: 34
OPT
PROTECTOR,OUTER TUBE,R
€ 41.50
35
5155236E101KY
ref: 35
OPT
PROTECTOR,OUTER TUBE,L
€ 45.50
36-1
5117136E40
ref: 36-1
OPT
SPRING,FRONT (K=0.38)
€ 190.00
36-2
5117136E60
ref: 36-2
OPT
SPRING,FRONT (K=0.42)
€ 167.00
