CRANKSHAFT
RM125 2000 (Y)

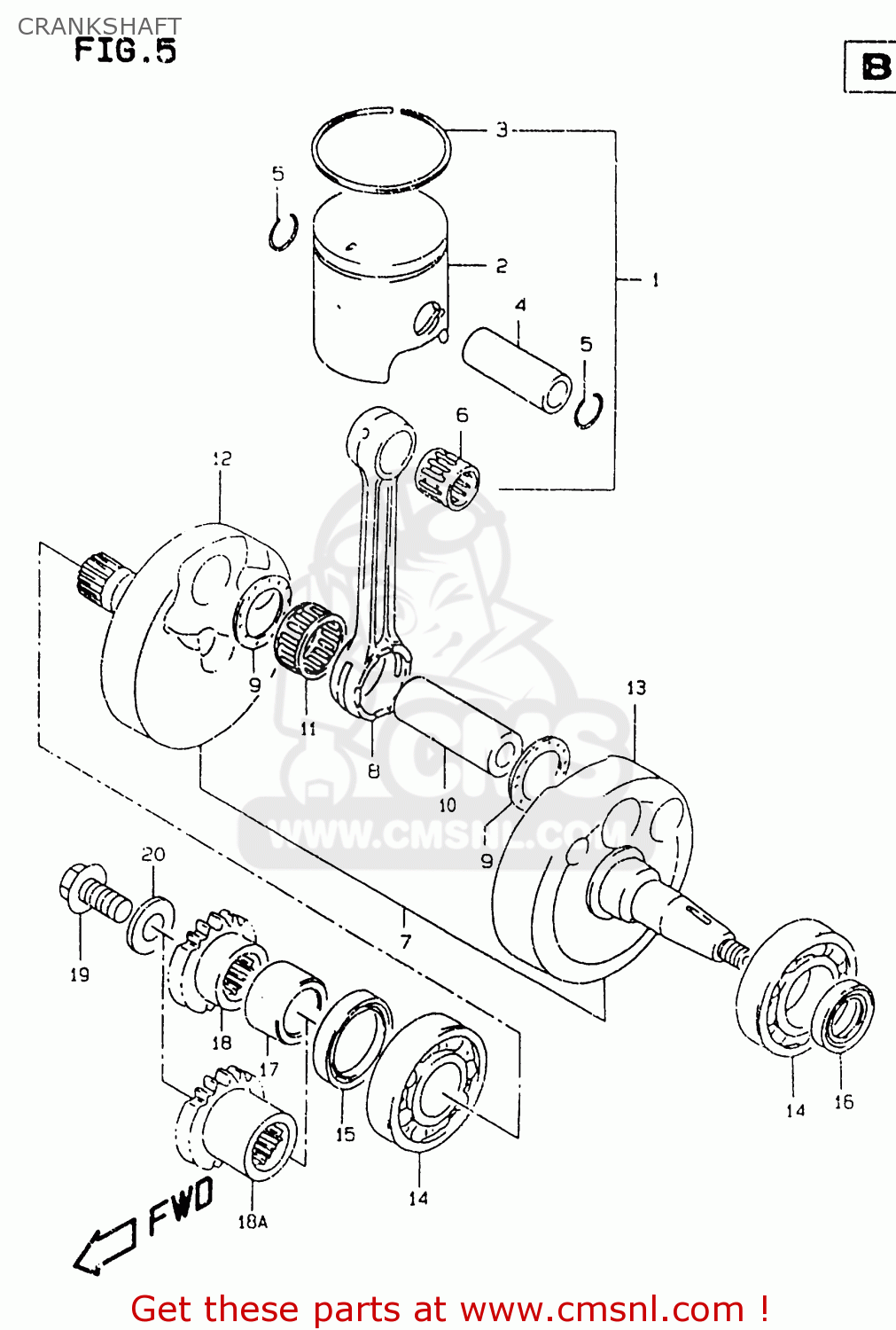

Crankshaft diagram RM125 2000 (Y)
CRANKSHAFT RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1210043852
ref: 1
OPT
PISTON KIT
€ 127.00
2
1211036E010F0
ref: 2
PISTON
€ 92.50
3
1214136E00
ref: 3
RING,PISTON
€ 27.00
4
1215101B41
ref: 4
PIN,PISTON
€ 16.00
5
0938115001
ref: 5
CIRCLIP
€ 1.50
6
0926315040
ref: 6
BEARING(15X19X20)
€ 20.00
7-1
1220043D10
ref: 7-1
MODEL T
CRANKSHAFT ASSY
€ 696.50
7-2
1220036E00
ref: 7-2
MODEL V
CRANKSHAFT ASSY
€ 587.00
7-3
1220036E10
ref: 7-3
MODEL W
CRANKSHAFT ASSEMBLY
€ 556.50
8-1
1216143D00
ref: 8-1
MODEL T
ROD,CONNECTING
€ 66.00
8-2
1216136E00
ref: 8-2
MODEL V/W
CONNECTING ROD
€ 57.50
9
0916022077
ref: 9
WASHER(22X36X1.5)
€ 20.00
10
1221127C00
ref: 10
PIN,CRANK
€ 30.50
11
0926322060
ref: 11
BEARING(22X28X16)
€ 64.00
12-1
1222043D10
ref: 12-1
MODEL T/V
CRANKSHAFT,R
€ 220.00
12-2
1222036E10
ref: 12-2
MODEL W
CRANKSHAFT COMP,RIGHT
€ 214.50
13-1
1226043D10
ref: 13-1
MODEL T/V
CRANKSHAFT,L
€ 255.50
13-2
1226036E10
ref: 13-2
MODEL W
CRANKSHAFT COMP,LEFT
€ 205.50
14
0926222025
ref: 14
BEARING(22X56X16)
€ 63.50
15
0928330061
ref: 15
SEAL,OIL(30X40X7)
€ 17.00
16
0928318006
ref: 16
SEAL,OIL(18X30X6)
€ 13.50
17
1235927C30
ref: 17
MODEL T/V
SPACER,PRIMARY DRIVE GEAR
€ 9.50
18
2111143D00
ref: 18
MODEL T/V
GEAR,PRIMARY DRIVE (NT:
€ 49.00
18A
2111136E10
ref: 18A
MODEL W
GEAR,PRIMARY DRIVE
€ 58.50
19
2114127C11
ref: 19
BOLT,PRIMARY DRIVE GEAR
€ 11.50
20
0916411004
ref: 20
WASHER
€ 6.00
