CRANKCASE (MODEL T/V)
RM125 2000 (Y)

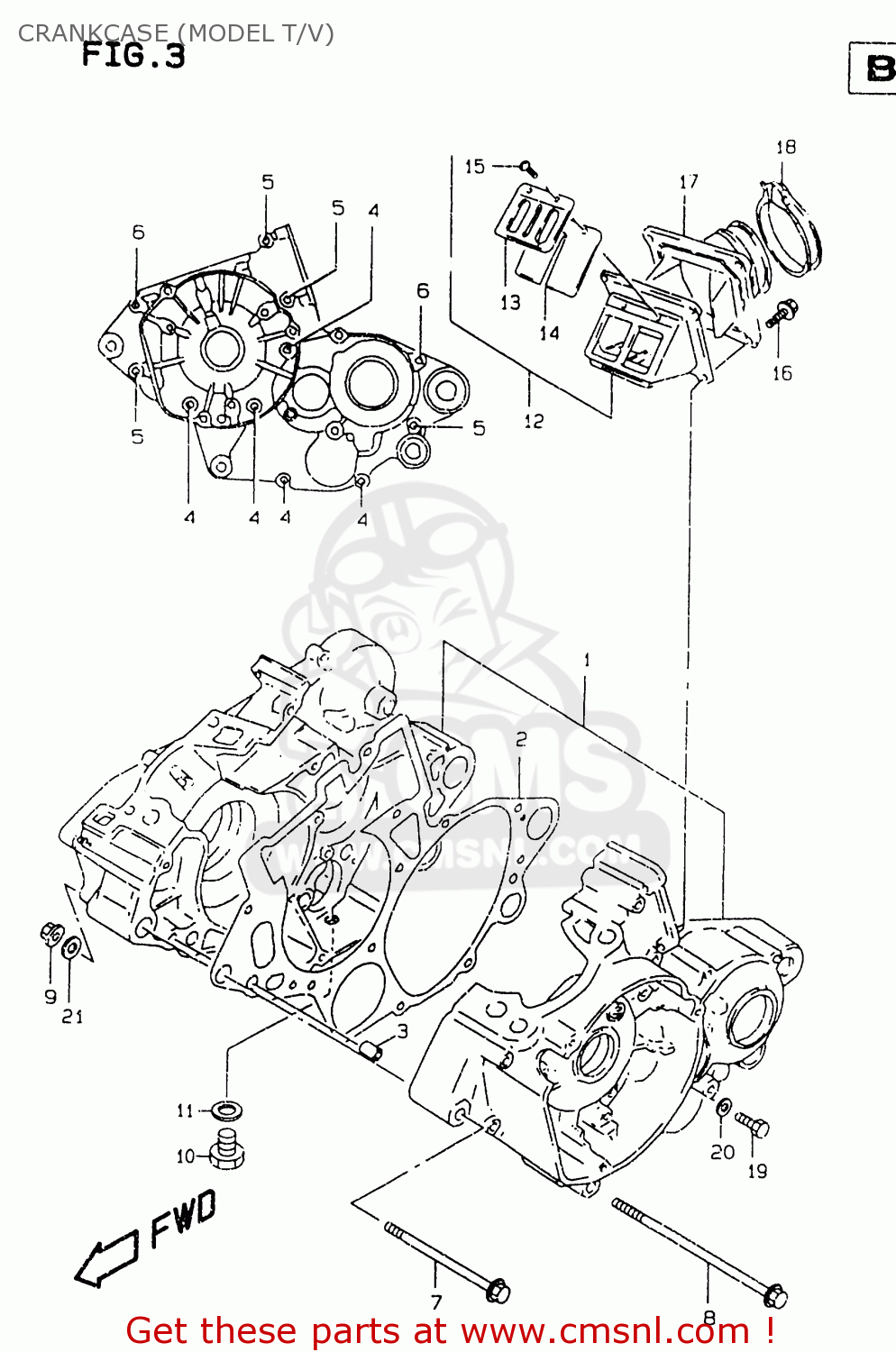

Crankcase (model t/v) diagram RM125 2000 (Y)
CRANKCASE (MODEL T/V) RM125 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130043863
ref: 1-1
MODEL T
CRANKCASE SET
€ 575.00
1-2
1130036860
ref: 1-2
MODEL V
CRANKCASE SET
€ 629.50
2
1148143D00
ref: 2
GASKET,CRANKCASE (NAS)
€ 14.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0154706453
ref: 4
BOLT
€ 3.00
5
0154706553
ref: 5
BOLT
€ 3.00
6
0154706603
ref: 6
BOLT
€ 3.50
7
0910308010
ref: 7
BOLT(8X88)
€ 55.50
8
0910308106
ref: 8
BOLT(8X125)
€ 8.00
9
0915908034
ref: 9
NUT
€ 2.00
10
0150012163
ref: 10
Bolt
€ 3.50
11
0916812002
ref: 11
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
12
1315043D02
ref: 12
VALVE ASSEMBLY,REED
€ 77.50
13
1315243D00
ref: 13
STOPPER,REED VALVE
€ 6.00
14
1315343D00
ref: 14
VALVE,REED
€ 30.50
15
0211233083
ref: 15
SCREW
€ 2.00
16
0154706203
ref: 16
SCREW
€ 2.50
17
1311036E00
ref: 17
PIPE COMP,INTAKE
€ 66.00
18
0940256208
ref: 18
CLAMP
€ 3.50
19
0912806004
ref: 19
SCREW(6X10)
€ 1.50
20
0916806004
ref: 20
GASKET(6.2X11X1).2 (NAS)
€ 1.50
21
0916408020
ref: 21
WASHER
€ 2.50
