CLUTCH (MODEL R/S)
RM250 1995 (S) (E02 E04 E24 P37)

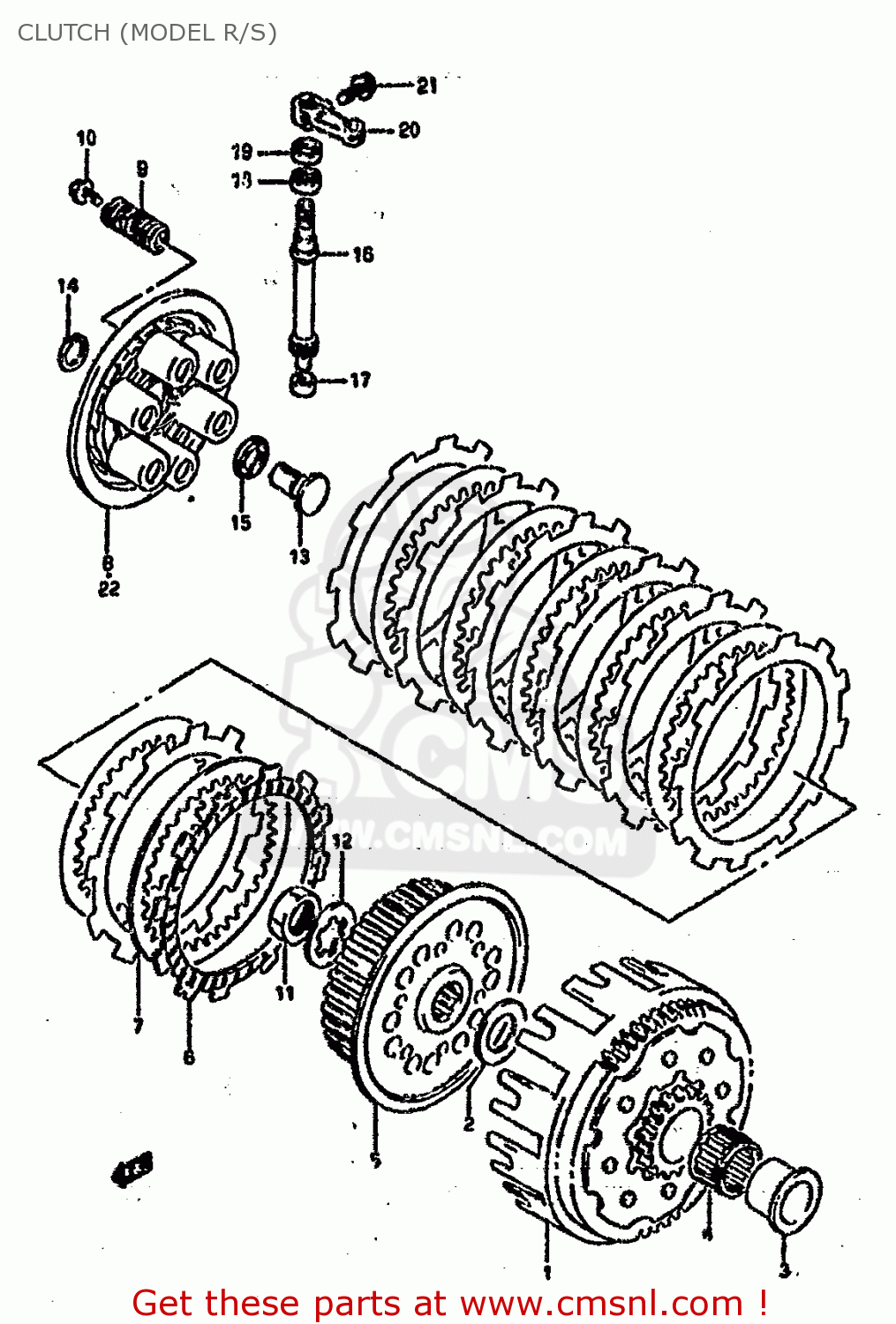

Clutch (model r/s) diagram RM250 1995 (S) (E02 E04 E24 P37)
CLUTCH (MODEL R/S) RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1
2120028E10
ref: 1
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.00
2
0916022067
ref: 2
WASHER(22X38X2)
€ 10.50
3
2125128C01
ref: 3
SPACER,PRIMARY DRIVEN GEAR
€ 23.50
4
0926329006
ref: 4
BEARING(29X34X21.8)
€ 27.00
5-1
2141028C34
ref: 5-1
MODEL R
HUB,CLUTCH SLEEVE
€ 93.00
5-2
2141128E10
ref: 5-2
MODEL S
HUB,CLUTCH SLEEVE
€ 93.00
6
2144107A02
ref: 6
PLATE,CLUTCH DRIVE (NAS)
€ 16.50
7
2145128C30
ref: 7
PLATE,CLUTCH DRIVEN T: (NAS)
€ 10.50
8
2146228E00
ref: 8
DISC,CLUTCH PRESSURE
€ 37.00
9
0944018025
ref: 9
SPRING
€ 9.00
10
0911605019
ref: 10
BOLT(5X25)
€ 3.00
11
0914018013
ref: 11
NUT
€ 9.00
12
0916722021
ref: 12
WASHER,LOCK
€ 2.00
13
2316528301
ref: 13
RACK,CLUTCH RELEASE
€ 20.00
14
0833131106
ref: 14
CIRCLIP,10MM
€ 2.00
15
0926310002
ref: 15
BEARING(10X22X2.8)
€ 8.50
16
2326100B20
ref: 16
PINION,CLUTCH RELEASE(NT:12)
€ 46.50
17
0926309001
ref: 17
BEARING(9X13X10)
€ 11.00
18
0926312024
ref: 18
BEARING(12X16X10)
€ 11.00
19
0928510004
ref: 19
SEAL,OIL(10X17X5)
€ 3.50
20
2327120901
ref: 20
ARM,CLUTCH RELEASE
€ 20.50
21
0154706163
ref: 21
BOLT
€ 2.50
22
2146228C33
ref: 22
OPT
DISC,CLUTCH PRESSURE
€ 35.50
