RM250 1995 (S) (E02 E04 E24 P37)

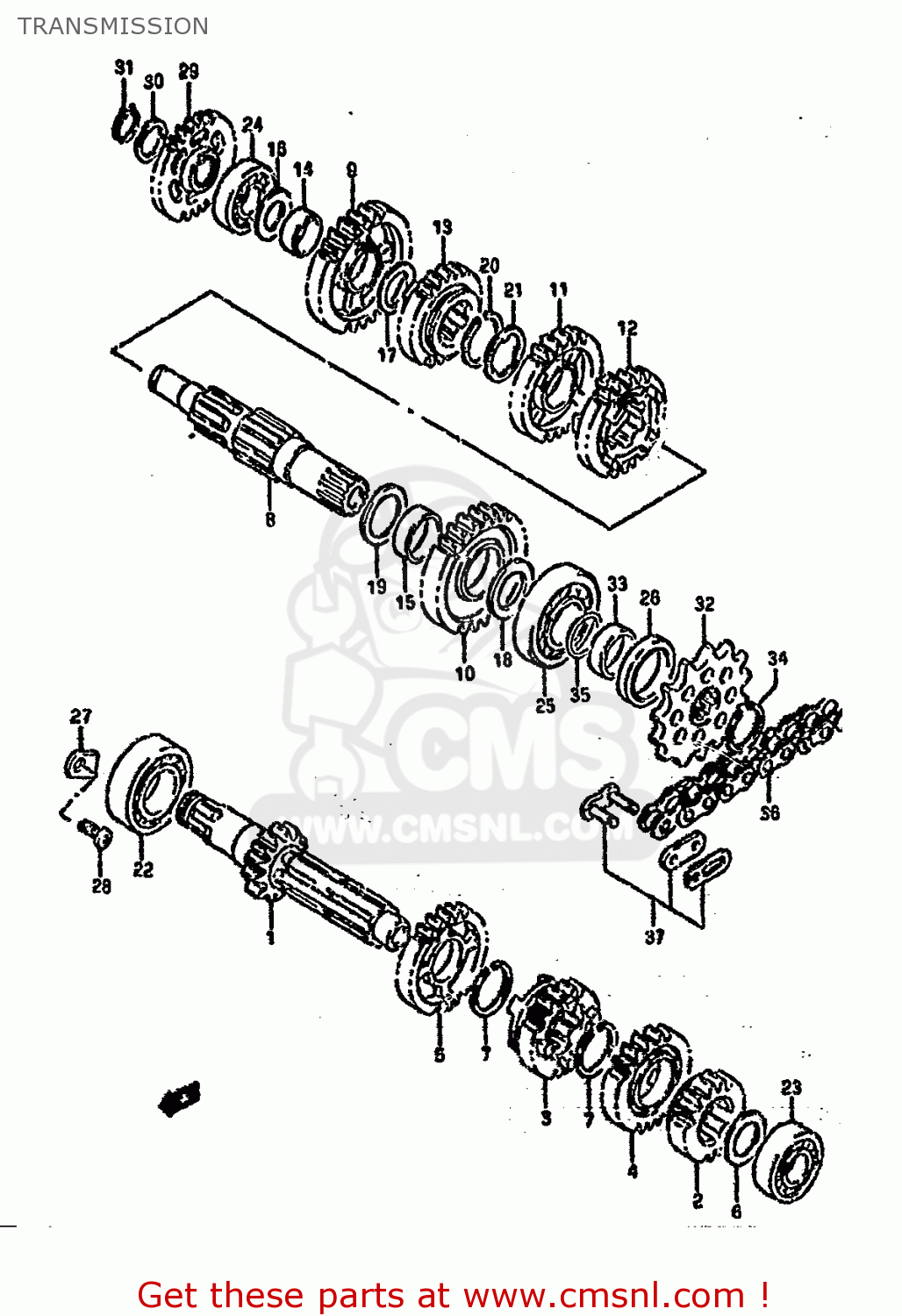

Transmission diagram RM250 1995 (S) (E02 E04 E24 P37)
TRANSMISSION RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1
2412128C04
ref: 1
SHAFT,COUNTER
€ 123.00
2
2422128C10
ref: 2
GEAR,SECOND DRIVE (NT:17)
€ 75.00
3
2423128C21
ref: 3
GEAR,3RD DRIVE
€ 78.50
4
2424128C20
ref: 4
GEAR,4TH DRIVE(NT:19)
€ 146.00
5
2425128C01
ref: 5
GEAR,FIFTH DRIVE
€ 109.50
6
0821117301
ref: 6
WASHER,THRUST
€ 3.00
7
0938025010
ref: 7
CIRCLIP
€ 3.00
8-1
2413128C01
ref: 8-1
MODEL P/R
SHAFT,DRIVE
€ 189.00
8-2
2413128C02
ref: 8-2
MODEL S
SHAFT,DRIVE
€ 189.00
9-1
2431128C01
ref: 9-1
MODEL P/R
GEAR,FIRST DRIVEN
€ 131.50
9-2
2431128C02
ref: 9-2
MODEL S
GEAR,1ST DRIVEN
€ 131.50
10
2432128C10
ref: 10
GEAR,2ND DRIVEN(NT:29)
€ 128.50
11
2433128C02
ref: 11
GEAR,THIRD DRIVEN
€ 85.00
12
2434128C20
ref: 12
GEAR,4TH DRIVEN(NT:22)
€ 146.00
13
2435128C20
ref: 13
GEAR,5TH DRIVEN(NT:23)
€ 82.50
14
0930020037
ref: 14
BUSH(20X24X10)
€ 12.50
15
0930025031
ref: 15
BUSH(25X28X10)
€ 16.00
16
0821117301
ref: 16
WASHER,THRUST
€ 3.00
17
0821120301
ref: 17
WASHER
€ 3.00
18
0821122342
ref: 18
WASHER
€ 4.50
19
0821125341
ref: 19
WASHER
€ 3.50
20
0938025010
ref: 20
CIRCLIP
€ 3.00
21
0916725012
ref: 21
WASHER,LOCK
€ 3.50
22
0814362057
ref: 22
BEARING
€ 24.50
23
0926217023
ref: 23
BEARING(17X40X12)
€ 14.00
24
0926217023
ref: 24
BEARING(17X40X12)
€ 14.00
25
0926222023
ref: 25
BEARING(22X56X15)
€ 40.50
26
0928328020
ref: 26
SEAL,OIL(28X38X6)
€ 11.50
27-1
2474120A10
ref: 27-1
~E.NO.100885
RETAINER,SHIFT CAM,R BEARING
€ 2.00
27-2
2474121A00
ref: 27-2
E.NO.100886~
RETAINER
€ 2.00
28-1
0211206128
ref: 28-1
MODEL P/R
SCREW 6X12
€ 2.00
28-2
0211206123
ref: 28-2
MODEL S
SCREW
€ 1.50
29
2626028C01
ref: 29
GEAR,KICK STARTER IDLE
€ 47.00
30
0822117245
ref: 30
SHIM
€ 3.00
31-1
0938017001
ref: 31-1
MODEL P
CIRCLIP
€ 2.00
31-2
0833131176
ref: 31-2
MODEL R/S
CIRCLIP,17MM
€ 2.00
32-1
2751114310
ref: 32-1
SPROCKET,ENGINE
€ 23.50
32-2
2751114300
ref: 32-2
OPT
SPROCKET,ENGINE
€ 23.00
32-3
2751114320
ref: 32-3
OPT
SPROCKET(NT:15)
€ 20.00
33
2753128C00
ref: 33
SPACER,ENGINE SPROCKET
€ 10.50
34
0938022006
ref: 34
CIRCLIP
€ 3.00
35
0928021010
ref: 35
O RING(D:1.9,ID:21.8)
€ 2.50
36-1
2760028C01116
ref: 36-1
116-112L,MODEL P/R
CHAIN,DRIVE(520KD2X116LE)
€ 80.00
36-2
2760043D00114
ref: 36-2
MODEL S
CHAIN ASSEMBLY DID520DM.11
€ 72.50
36-3
2760028C01116
ref: 36-3
OPT,116-114L,MODEL P
CHAIN,DRIVE(520KD2X116LE)
€ 80.00
37-1
2762028C00
ref: 37-1
MODEL P/R
JOINT ASSEMBLY,CHAIN
€ 8.50
37-2
2762043D00
ref: 37-2
MODEL S
JOINT SET,CHAIN
€ 5.00
37-3
2762014262
ref: 37-3
JOINT ASSEMBLY,CHAIN
€ 0.00
