REAR BRAKE

RM250 1995 (S) (E02 E04 E24 P37)

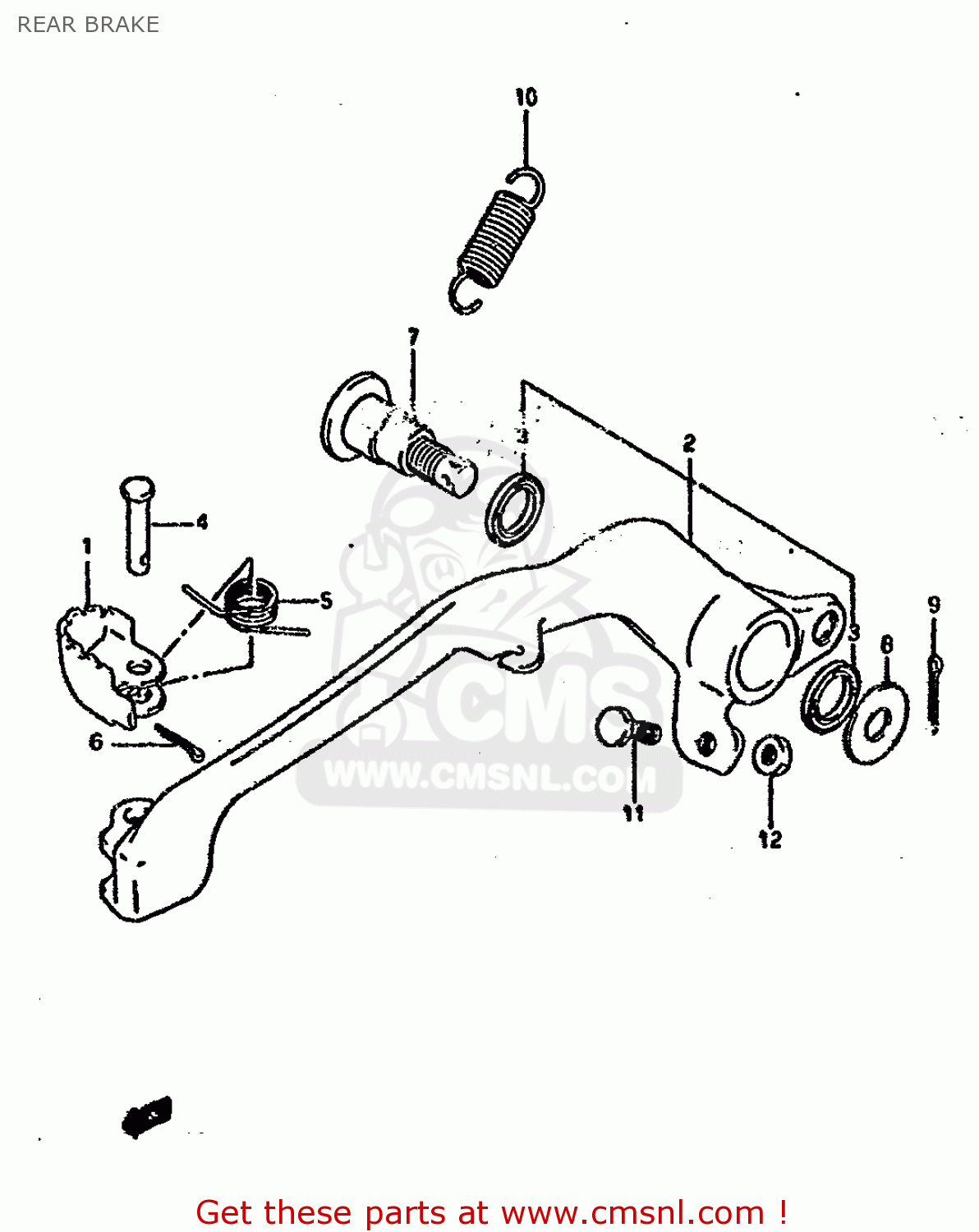

Rear brake diagram RM250 1995 (S) (E02 E04 E24 P37)

REAR BRAKE RM250 1995 (S) (E02 E04 E24 P37)
REAR BRAKE RM250 1995 (S) (E02 E04 E24 P37)
REAR BRAKE RM250 1995 (S) (E02 E04 E24 P37)
prices are in EUR
ref
part #
description
quantity
1
4311043D00
ref: 1
PEDAL,BRAKE
4311043D00
€ 6.00
2-1
4312028E00
ref: 2-1
MODEL P
ARM,BRAKE PEDAL
4312028E00
€ 136.00
2-2
4312028E10
ref: 2-2
MODEL R/S
ARM,BRAKE PEDAL
4312028E10
€ 136.00
3
0928415006
ref: 3
SEAL,OIL(15X21X3)
0928415006
€ 3.50
4
0920006062
ref: 4
PIN(6X23.5)
0920006062
€ 2.50
5
0944411006
ref: 5
SPRING
0944411006
€ 3.50
6
0411120158
ref: 6
PIN
0411120158
€ 1.50
7
4314227C00
ref: 7
SHAFT,BRAKE PEDAL
4314227C00
€ 15.00
8
0821110261
ref: 8
WASHER
0821110261
€ 2.50
9
0411120208
ref: 9
PIN 20X20
0411120208
€ 1.50
10
0944311039
ref: 10
SPRING
0944311039
€ 21.50
11
0910006009
ref: 11
BOLT(6X23)
0910006009
€ 1.50
12-1
0831011068
ref: 12-1
MODEL P/R
NUT
0831011068
€ 2.50
12-2
0831000063
ref: 12-2
MODEL S
NUT 6MM
0831000063
€ 2.00
