MAGNETO
RM250 1995 (S) (E02 E04 E24 P37)

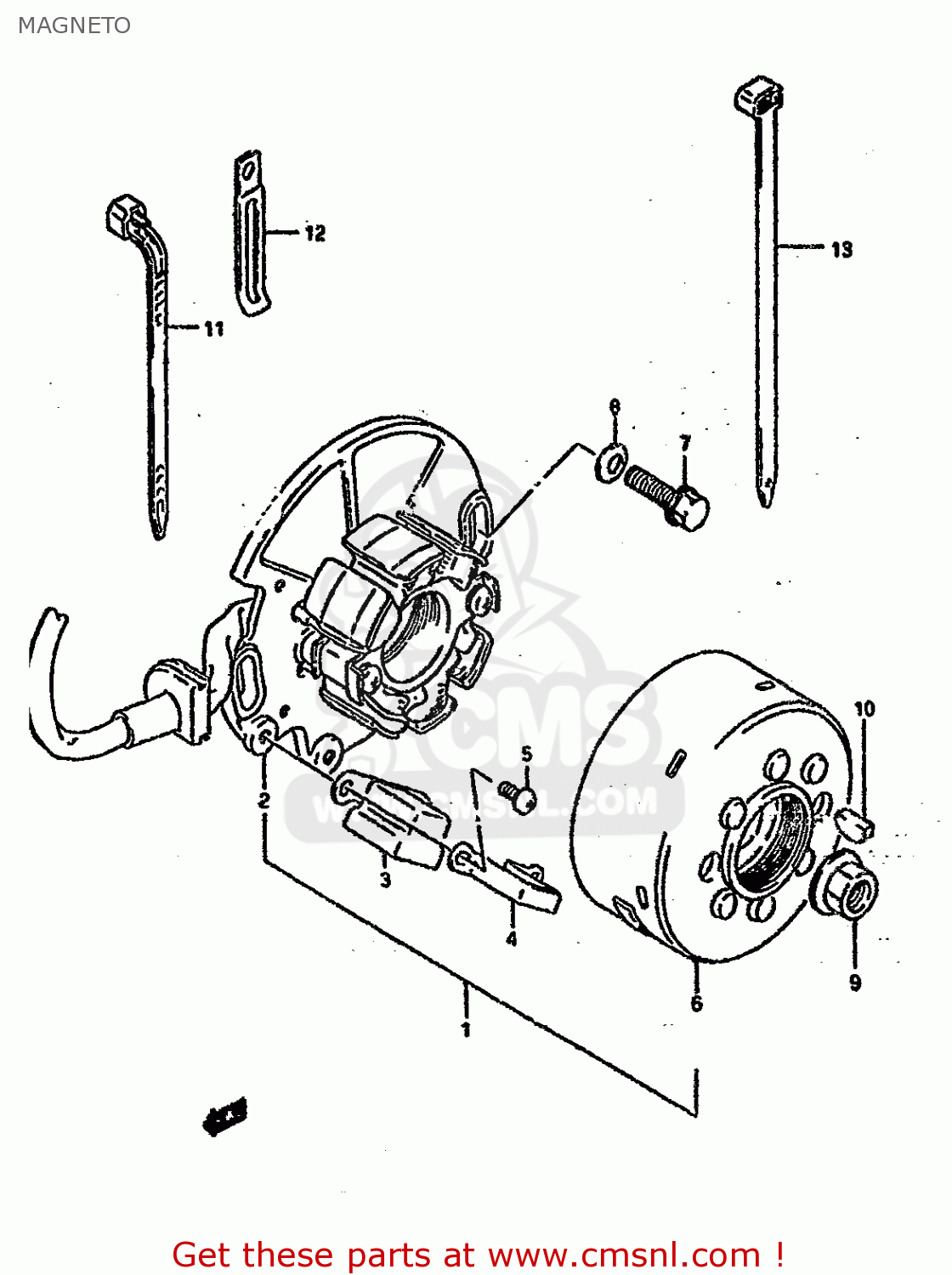

Magneto diagram RM250 1995 (S) (E02 E04 E24 P37)
MAGNETO RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210028C03
ref: 1-1
MODEL P
MAGNETO ASSEMBLY
€ 656.00
1-2
3210028E00
ref: 1-2
MODEL R
MAGNETO ASSEMBLY
€ 490.00
1-3
3210043D10
ref: 1-3
MODEL S
MAGNETO ASSEMBLY
€ 701.50
2-1
3210128C03
ref: 2-1
MODEL P
STARTER ASSY
€ 420.00
2-2
3210128E00
ref: 2-2
MODEL R
STARTER ASSY
€ 336.00
2-3
3210143D10
ref: 2-3
MODEL S
STARTER ASSY
€ 415.50
3
3216027C00
ref: 3
COIL ASSEMBLY,PICK-UP
€ 51.50
4
3215727C01
ref: 4
HOLDER,PICK UP COIL
€ 7.50
5
0211275163
ref: 5
SCREW
€ 2.50
6-1
3210228C00
ref: 6-1
MODEL P/R
ROTOR
€ 268.50
6-2
3210243D10
ref: 6-2
MODEL S
ROTOR ASSEMBLY
€ 303.00
7-1
0154706207
ref: 7-1
MODEL P
BOLT
€ 2.50
7-2
0154706203
ref: 7-2
MODEL R/S
SCREW
€ 2.50
8
0916406003
ref: 8
WASHER
€ 2.50
9-1
0831616108
ref: 9-1
MODEL P
NUT
€ 2.00
9-2
0831610103
ref: 9-2
MODEL R/S
NUT
€ 2.00
10
0942004008
ref: 10
-08341-31049
KEY
€ 3.50
11
0940714403
ref: 11
CLAMP(L:125)
€ 2.50
12
0940405404
ref: 12
CLAMP
€ 2.50
13-1
0940730401
ref: 13-1
CLAMP(L:300)
€ 4.50
13-2
0940718403
ref: 13-2
CLAMP L:165
€ 2.50
13-3
0940725401
ref: 13-3
CLAMP(L:235)
€ 4.00
