STAND-FOOTREST
RM250 1995 (S) (E02 E04 E24 P37)

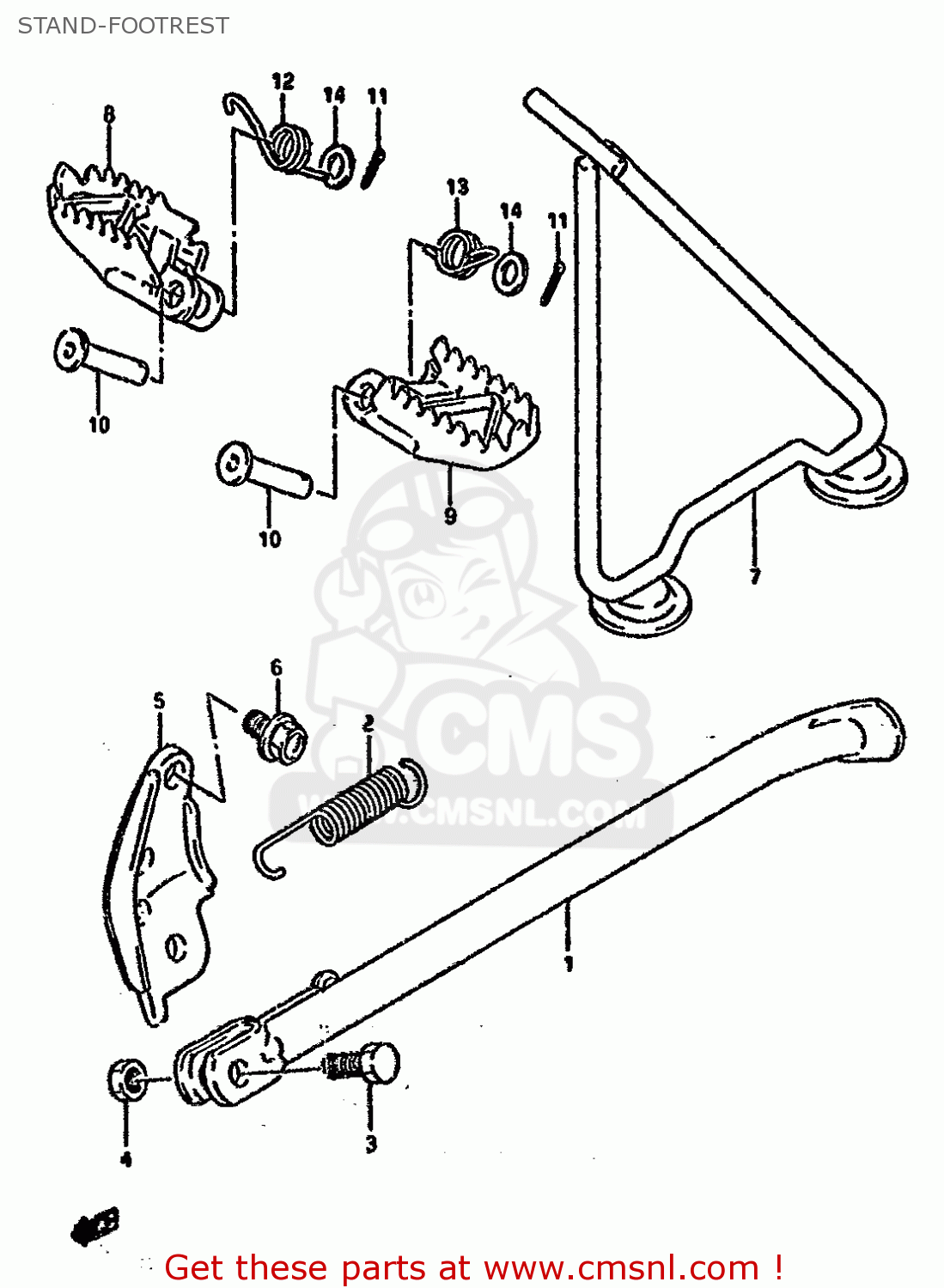

Stand-footrest diagram RM250 1995 (S) (E02 E04 E24 P37)
STAND-FOOTREST RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1
4231026C00019
ref: 1
MODEL P
STAND,PROP(BLACK)
€ 195.50
2
0944317007
ref: 2
MODEL P
SPRING
€ 4.50
3
0910010067
ref: 3
MODEL P
BOLT(10X30)
€ 3.50
4
0831022107
ref: 4
MODEL P
NUT
€ 2.50
5
4233026C00019
ref: 5
MODEL P
BRACKET,PROP STAND(BLACK)
€ 92.00
6
0153410168
ref: 6
MODEL P
BOLT
€ 2.50
7
4231028E10
ref: 7
MODEL R/S
STAND COMP
€ 99.50
8-1
4355028C30019
ref: 8-1
MODEL P
FOOTREST COMP,RIGHT
€ 46.50
8-2
4355128E10
ref: 8-2
MODEL R/S
FOOTREST,R
€ 63.00
9-1
4356028C30019
ref: 9-1
MODEL P
FOOTREST COMP,LEFT
€ 46.50
9-2
4356128E10
ref: 9-2
MODEL R/S
FOOTREST,L
€ 47.00
10
0920010019
ref: 10
PIN(10X41.5)
€ 6.00
11
0411125208
ref: 11
PIN 25X20
€ 2.00
12
0944818030
ref: 12
SPRING
€ 5.00
13
0944818029
ref: 13
SPRING
€ 5.00
14-1
0832211107
ref: 14-1
MODEL P/R
WASHER
€ 2.50
14-2
0832201103
ref: 14-2
MODEL S
WASHER
€ 2.50
