REAR CALIPER (MODEL S)
RM250 1995 (S) (E02 E04 E24 P37)

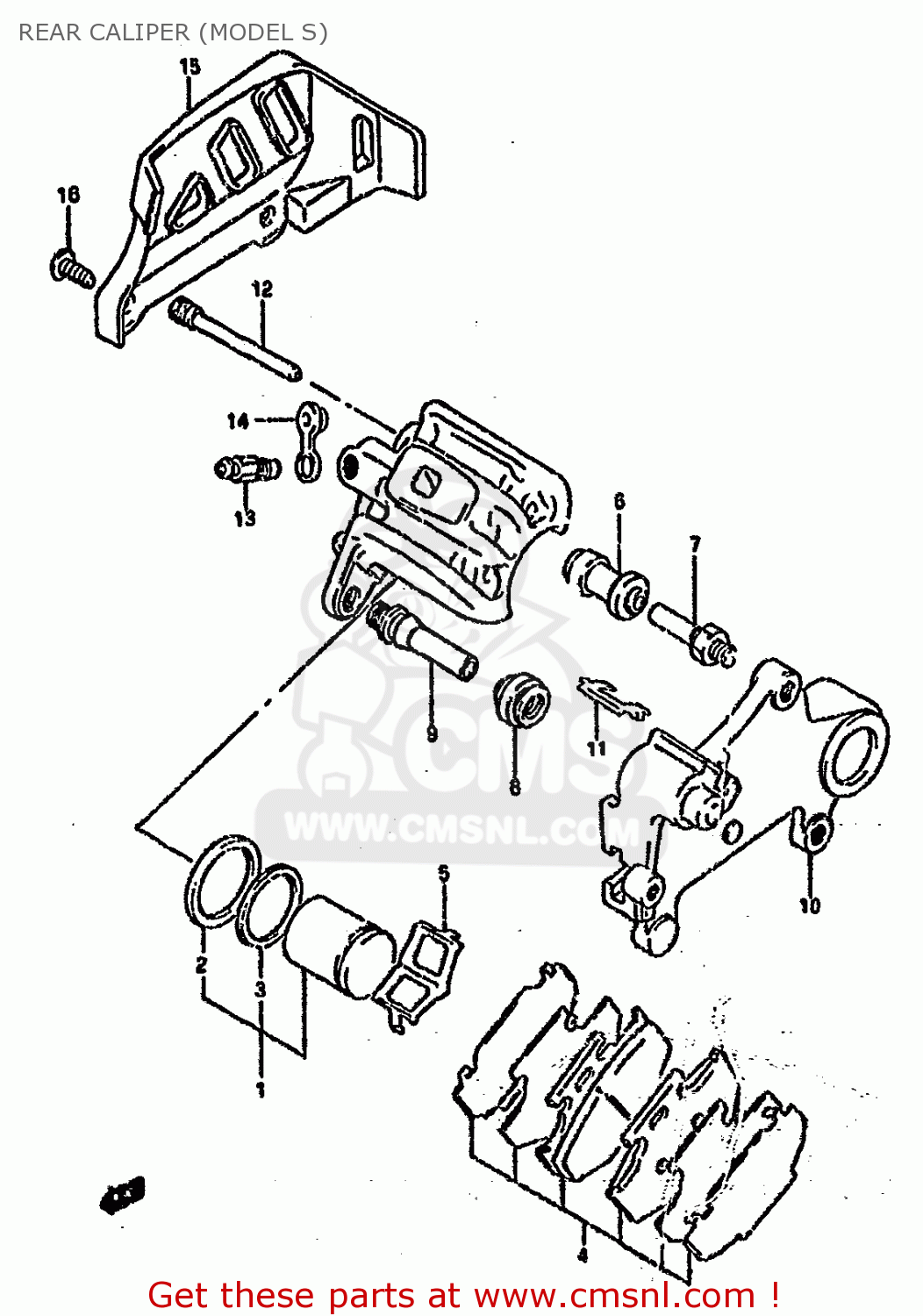

Rear caliper (model s) diagram RM250 1995 (S) (E02 E04 E24 P37)
REAR CALIPER (MODEL S) RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
0
6910043030
ref: 0
CALIPER ASSY,REAR
€ 0.00
1
6910043830
ref: 1
PISTON SET
€ 33.50
2
5910717C00
ref: 2
SEAL,PISTON
€ 12.00
3
5910817C00
ref: 3
SEAL
€ 12.00
4
6910043860
ref: 4
PAD & SHIM SET (NAS)
€ 49.00
5
5931527C10
ref: 5
SPRING,PAD
€ 6.00
6
5938613A00
ref: 6
BOOT
€ 6.50
7
5938214500
ref: 7
PIN,BOLT
€ 7.50
8
5930314500
ref: 8
BOOT
€ 5.50
9
5930527C00
ref: 9
PIN
€ 13.50
10
6935143D01
ref: 10
BRACKET
€ 113.50
11
6911343D00
ref: 11
RETAINER,BRACKET
€ 6.50
12
6934543D00
ref: 12
PIN,HANGER
€ 7.50
13
5912101A00
ref: 13
BLEEDER
€ 8.50
14
5912201A00
ref: 14
CAP,BLEEDER
€ 4.50
15
6972527C30
ref: 15
GUARD,RR CALIPER
€ 18.50
16
0214206123
ref: 16
SCREW 6X12
€ 2.00
13
5912101A00
ref: 13
BLEEDER
€ 8.50
14
5912201A00
ref: 14
CAP,BLEEDER
€ 4.50
15
6972527C30
ref: 15
GUARD,RR CALIPER
€ 18.50
16-1
0214206127
ref: 16-1
MODEL P
SCREW 6X12
€ 1.50
16-2
0214206123
ref: 16-2
MODEL R
SCREW 6X12
€ 2.00
