KICK STARTER
RM250 1995 (S) (E02 E04 E24 P37)

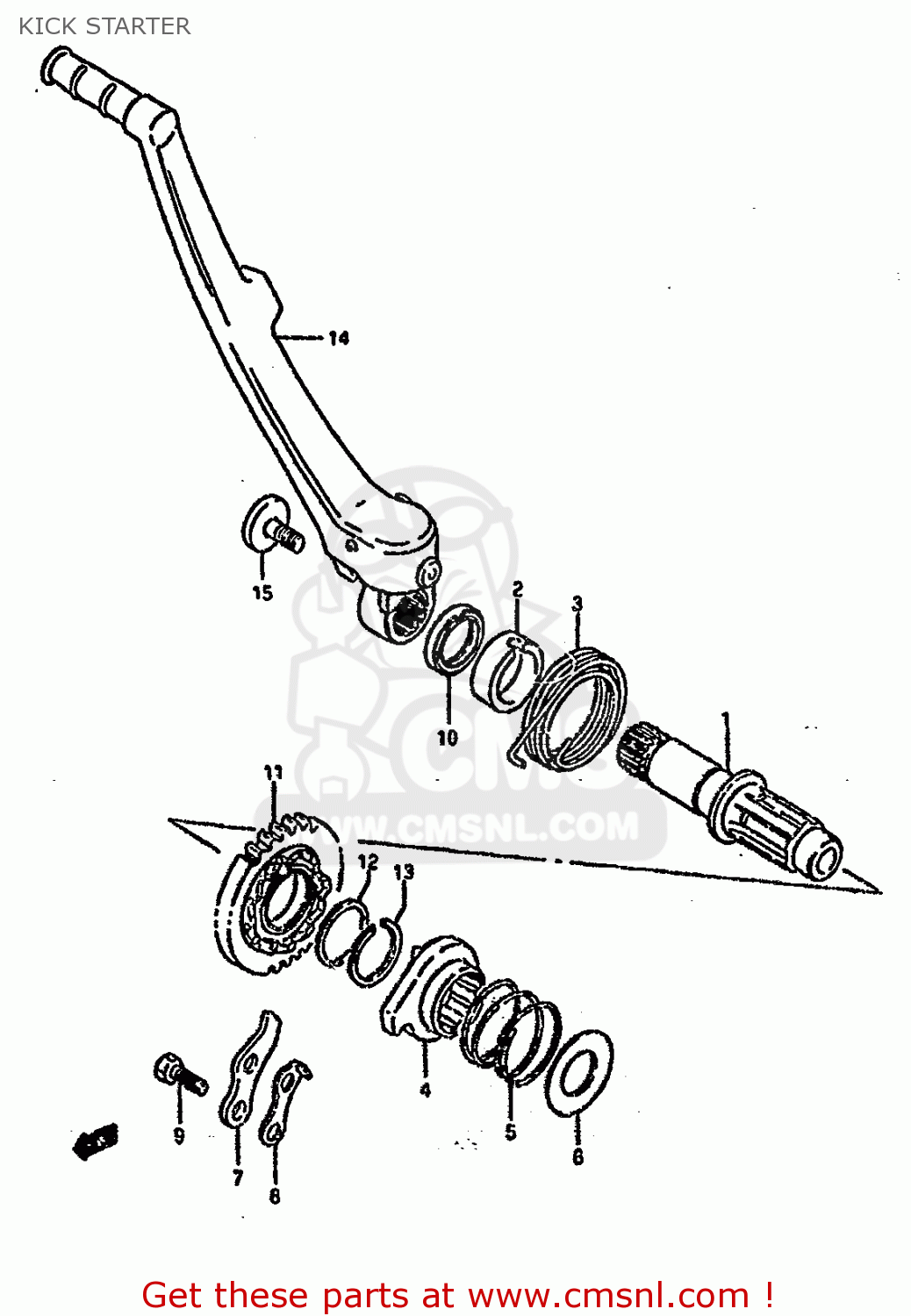

Kick starter diagram RM250 1995 (S) (E02 E04 E24 P37)
KICK STARTER RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1
2621105D02
ref: 1
SHAFT,KICK STARTER
€ 69.00
2
2622101B00
ref: 2
GUIDE,KICK STARTER SHAFT
€ 3.00
3-1
0944848011
ref: 3-1
MODEL P
SPRING
€ 11.00
3-2
0944848012
ref: 3-2
MODEL R/S
SPRING
€ 15.50
4-1
2623122A10
ref: 4-1
~E.NO.104137
STARTER,KICK
€ 47.50
4-2
2623128E20
ref: 4-2
E.NO.104138~
STARTER,KICK
€ 36.00
5
0944032002
ref: 5
SPRING
€ 2.00
6
0821117341
ref: 6
WASHER
€ 2.00
7
2623240200
ref: 7
GUIDE,KICK STARTER
€ 3.00
8
2623340200
ref: 8
STOPPER,KICK STARTER
€ 2.50
9-1
0110706127
ref: 9-1
MODEL P
BOLT
€ 2.00
9-2
0150006123
ref: 9-2
MODEL R/S
BOLT
€ 2.00
10
0928320031
ref: 10
SEAL,OIL(20X27X5)
€ 5.00
11-1
2624028C00
ref: 11-1
~E.NO.104137
GEAR,KICK STARTER DRIVE(NT:30)
€ 58.00
11-2
2624028E20
ref: 11-2
E.NO.104138~
GEAR COMP,KICK STARTER
€ 68.50
12
0821122281
ref: 12
SHIM
€ 4.00
13
0938022006
ref: 13
CIRCLIP
€ 3.00
14-1
2630028C22
ref: 14-1
MODEL P
LEVER ASSEMBLY,KICK STARTER
€ 298.00
14-2
2630028E10
ref: 14-2
MODEL R/S
LEVER ASSEMBLY,KICK STARTER
€ 298.00
15
0910600098
ref: 15
BOLT (8X14)
€ 0.00
