CRANKCASE (MODEL R/S)
RM250 1995 (S) (E02 E04 E24 P37)

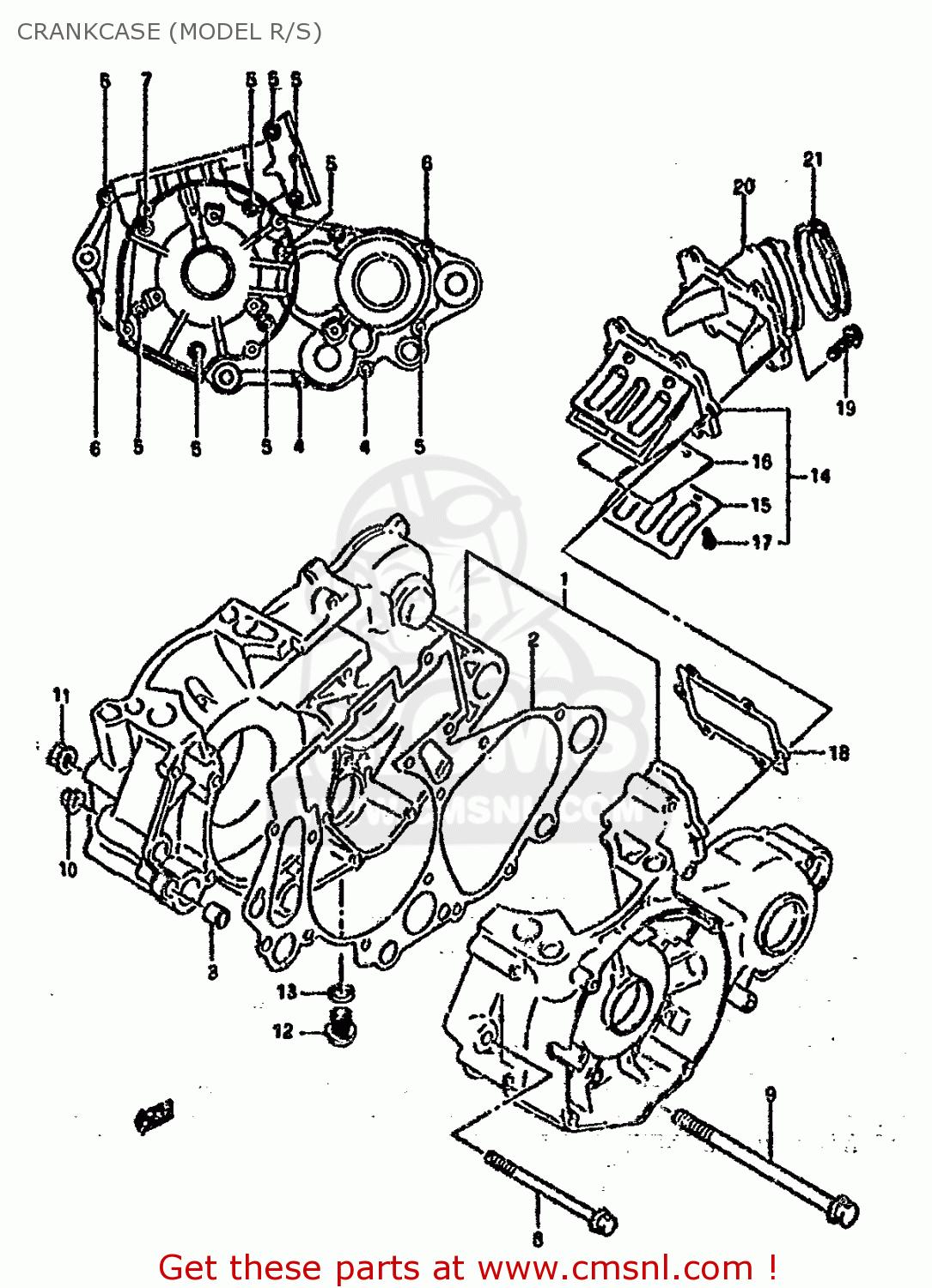

Crankcase (model r/s) diagram RM250 1995 (S) (E02 E04 E24 P37)
CRANKCASE (MODEL R/S) RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130128820
ref: 1-1
MODEL R
CRANKCASE SET
€ 867.50
1-2
1130128830
ref: 1-2
MODEL S
CRANKCASE SET
€ 641.50
2
1148128E10
ref: 2
GASKET,CRANKCASE
€ 18.50
3
0421109129
ref: 3
PIN
€ 2.00
4
0154706403
ref: 4
BOLT
€ 3.00
5
0154706503
ref: 5
BOLT
€ 3.50
6
0154706603
ref: 6
BOLT
€ 3.50
7
0154706753
ref: 7
BOLT
€ 2.00
8
0910308296
ref: 8
BOLT(8X102)
€ 5.50
9
0910310119
ref: 9
BOLT(10X140)
€ 7.50
10
0915908034
ref: 10
NUT
€ 2.00
11
0915910060
ref: 11
NUT
€ 2.00
12
0150012163
ref: 12
Bolt
€ 3.50
13
0916812002
ref: 13
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
14
1315028E01
ref: 14
VALVE ASSY,REED
€ 88.50
15
1315228E00
ref: 15
STOPPER,REED VALVE
€ 4.00
16
1315328E00
ref: 16
VALVE,REED
€ 14.50
17
0211233063
ref: 17
SCREW
€ 2.00
18
1315601C10
ref: 18
GASKET,REED VALVE (NAS)
€ 3.00
19
0154706203
ref: 19
SCREW
€ 2.50
20
1311028E10
ref: 20
PIPE,INTAKE
€ 70.00
21
0940256208
ref: 21
CLAMP
€ 3.50
