FRAME-SEAT (MODEL R/S)
RM250 1995 (S) (E02 E04 E24 P37)

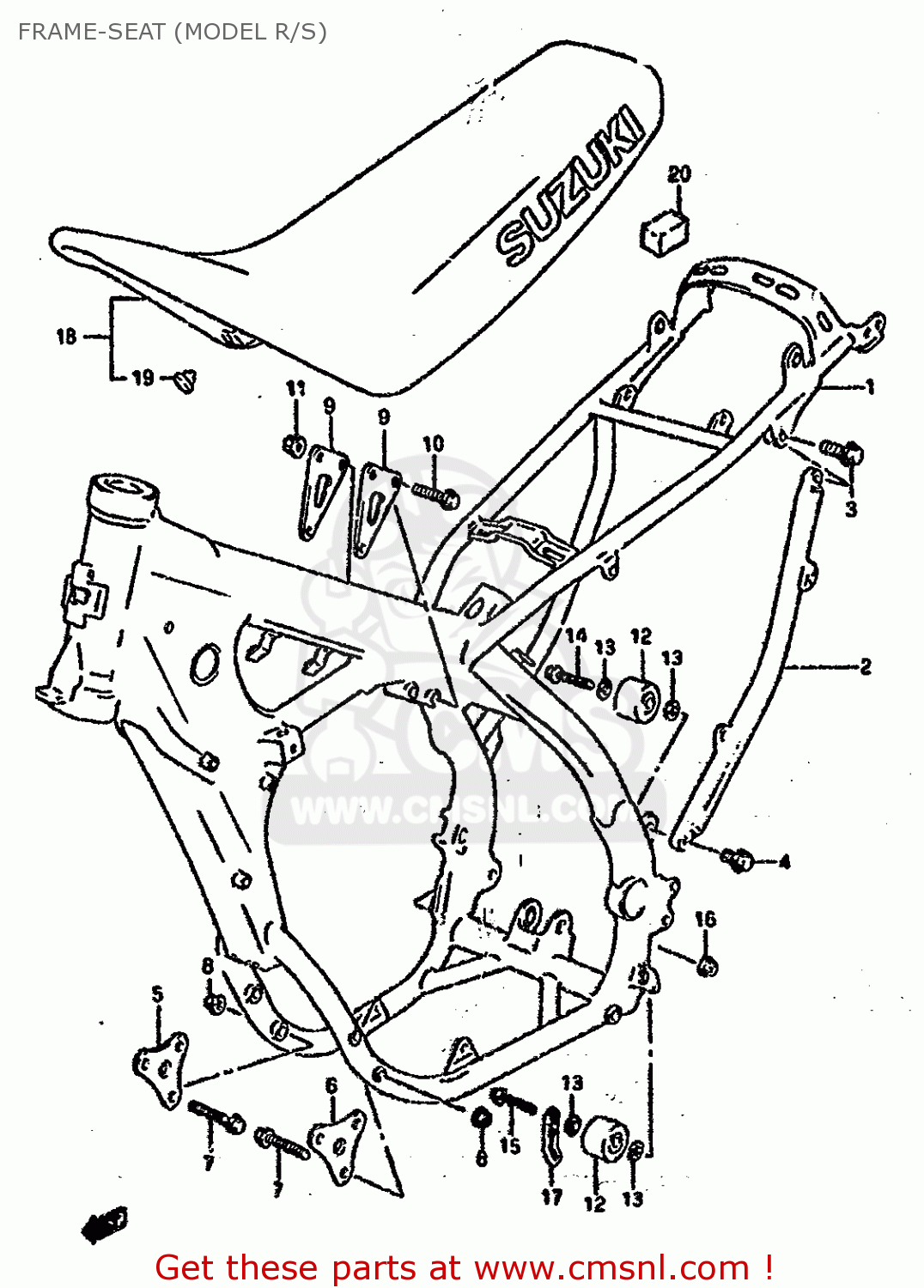

Frame-seat (model r/s) diagram RM250 1995 (S) (E02 E04 E24 P37)
FRAME-SEAT (MODEL R/S) RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110028E1024K
ref: 1-1
MODEL R
FRAME
€ 1,692.50
1-2
4110028E2024K
ref: 1-2
MODEL S
FRAME COMP
€ 1,692.50
2
4167028E01
ref: 2
TUBE,FRAME SIDE,L
€ 148.50
3
0156008203
ref: 3
BOLT
€ 2.50
4
0156008163
ref: 4
BOLT, LOWER
€ 1.50
5
4199128E10
ref: 5
PLATE,ENG MTG FR
€ 27.00
6-1
4199228E10
ref: 6-1
MODEL R
PLATE,ENGINE MOUNTING
€ 25.50
6-2
4199228E11
ref: 6-2
MODEL S
PLATE,ENGINE MOUNT FR,L
€ 25.50
7
0910308170
ref: 7
BOLT
€ 3.50
8
0915908034
ref: 8
NUT
€ 2.00
9
4199328E10
ref: 9
PLATE,ENG MTG UPR
€ 22.50
10
0910308043
ref: 10
BOLT(8X45)
€ 4.50
11
0915908067
ref: 11
NUT
€ 5.50
12
4391027C11
ref: 12
ROLLER,CHAIN
€ 36.50
13
0821108121
ref: 13
WASHER
€ 2.00
14
0910308083
ref: 14
BOLT(8X41)
€ 3.50
15
0910308043
ref: 15
BOLT(8X45)
€ 4.50
16
0831931087
ref: 16
NUT
€ 2.50
17
0940408405
ref: 17
CLAMP
€ 3.50
18-1
4510028E10A5K
ref: 18-1
MODEL R
SEAT ASSEMBLY
€ 334.50
18-2
4510028E12A5K
ref: 18-2
MODEL S
SEAT ASSEMBLY
€ 334.50
19
0932910001
ref: 19
CUSHION
€ 2.50
20
4529928E00
ref: 20
CUSHION,SEAT
€ 2.50
