MUFFLER
RM250 1995 (S) (E02 E04 E24 P37)

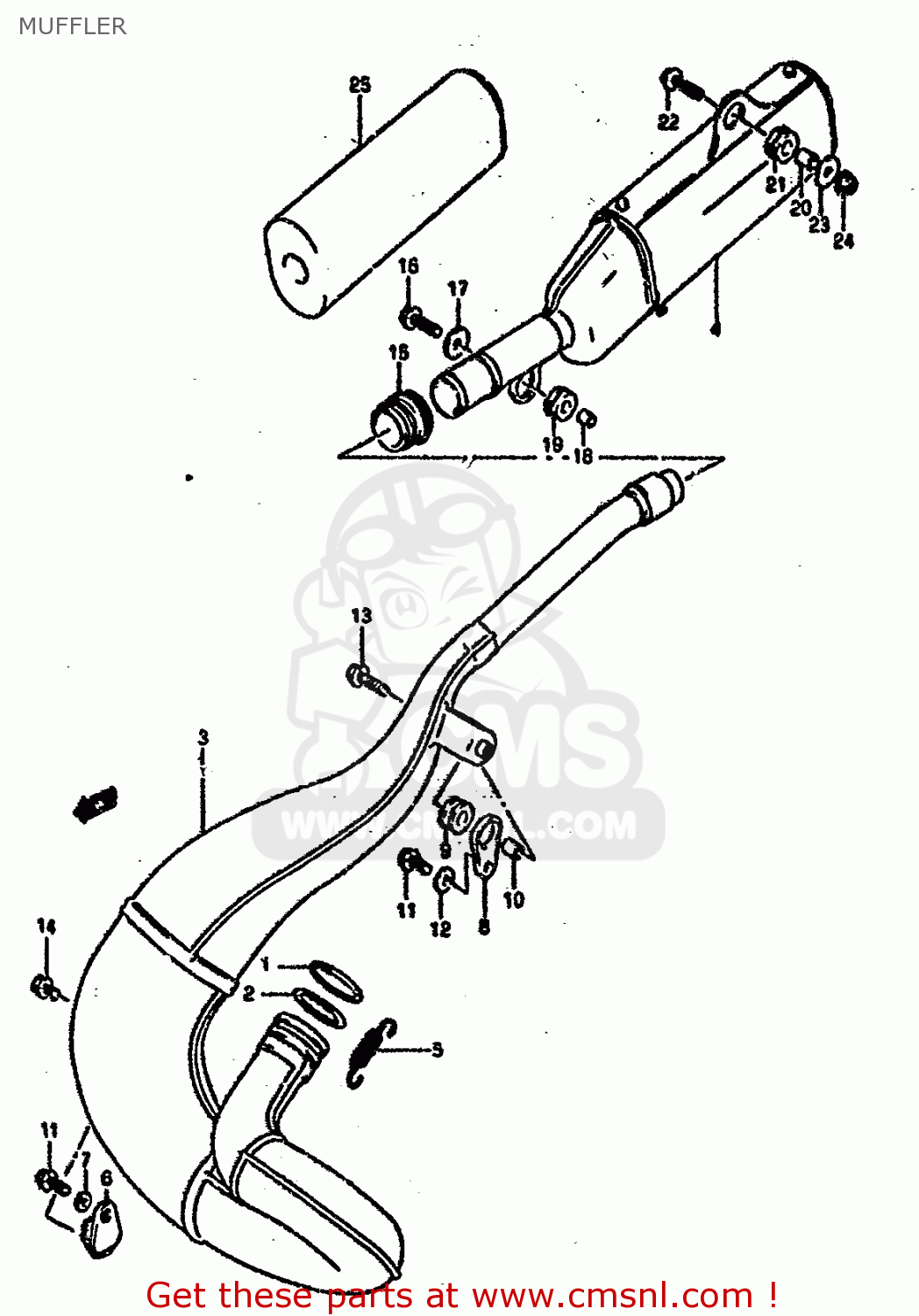

Muffler diagram RM250 1995 (S) (E02 E04 E24 P37)
MUFFLER RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1
1417228C30
ref: 1
WASHER,EXHAUST PIPE
€ 2.00
2
1417128C30
ref: 2
O RING,EXHAUST PIPE
€ 19.00
3-1
1431028E00H01
ref: 3-1
MODEL P
BODY,MUFFLER 1ST
€ 392.00
3-2
1431028E10H01
ref: 3-2
MODEL R
BODY,MUFFLER,FIRST
€ 226.50
3-3
1431028E20H01
ref: 3-3
MODEL S
BODY,MUFFLER,FIRST
€ 385.00
4-1
1433028E00H01
ref: 4-1
MODEL P/R
BODY COMP,MUFFLER,SECOND.
€ 262.00
4-2
1433028E10
ref: 4-2
MODEL S
BODY,MUFFLER 2ND
€ 311.00
5
0944312042
ref: 5
SPRING
€ 10.50
6
1477020400
ref: 6
DAMPER,MUFFLER SUPPORT
€ 10.00
7-1
0916006069
ref: 7-1
MODEL P
WASHER
€ 2.00
7-2
0916006057
ref: 7-2
MODEL R/S
WASHER
€ 2.00
8
1476127C00
ref: 8
PLATE,MUFFLER MTG
€ 7.00
9
1476201B01
ref: 9
CUSHION,MUFFLER
€ 3.00
10
0918006062
ref: 10
SPACER (6.4X9X13.5)
€ 2.00
11-1
0154706167
ref: 11-1
MODEL P
BOLT
€ 2.00
11-2
0154706163
ref: 11-2
MODEL R/S
BOLT
€ 2.50
12-1
0916006027
ref: 12-1
MODEL P
WASHER (6.5X20X1.2)
€ 2.00
12-2
0916006029
ref: 12-2
MODEL R
WASHER (6.5X16X1.0)
€ 0.00
12-3
0916006057
ref: 12-3
MODEL S
WASHER
€ 2.00
13-1
0154706257
ref: 13-1
MODEL P
BOLT
€ 2.50
13-2
0154706253
ref: 13-2
MODEL R/S
SCREW
€ 2.50
14-1
0154706127
ref: 14-1
MODEL P
BOLT
€ 2.00
14-2
0154706123
ref: 14-2
MODEL R/S
BOLT
€ 2.00
15
1477128C02
ref: 15
CONNECTOR,MUFFLER
€ 52.50
16-1
0154706207
ref: 16-1
MODEL P
BOLT
€ 2.50
16-2
0154706203
ref: 16-2
MODEL R/S
SCREW
€ 2.50
17-1
0916006004
ref: 17-1
MODEL P
WASHER (6.5X24X1.6)
€ 1.50
17-2
0916006002
ref: 17-2
MODEL R/S
WASHER (6.5X24X1.2)
€ 2.00
18
0918006210
ref: 18
SPACER (6.8X10X9)
€ 2.50
19
0932010041
ref: 19
CUSHION
€ 4.50
20
0918006212
ref: 20
SPACER(6.5X11.5X13)
€ 4.00
21
0932011016
ref: 21
CUSHION
€ 5.50
22-1
0154706257
ref: 22-1
MODEL P
BOLT
€ 2.50
22-2
0154706253
ref: 22-2
MODEL R/S
SCREW
€ 2.50
23
0916006002
ref: 23
WASHER (6.5X24X1.2)
€ 2.00
24
0831931067
ref: 24
NUT
€ 2.50
25
1435128E00
ref: 25
OPT
SILENCER,MUFFLER
€ 76.50
