CYLINDER
RM250 1995 (S) (E02 E04 E24 P37)

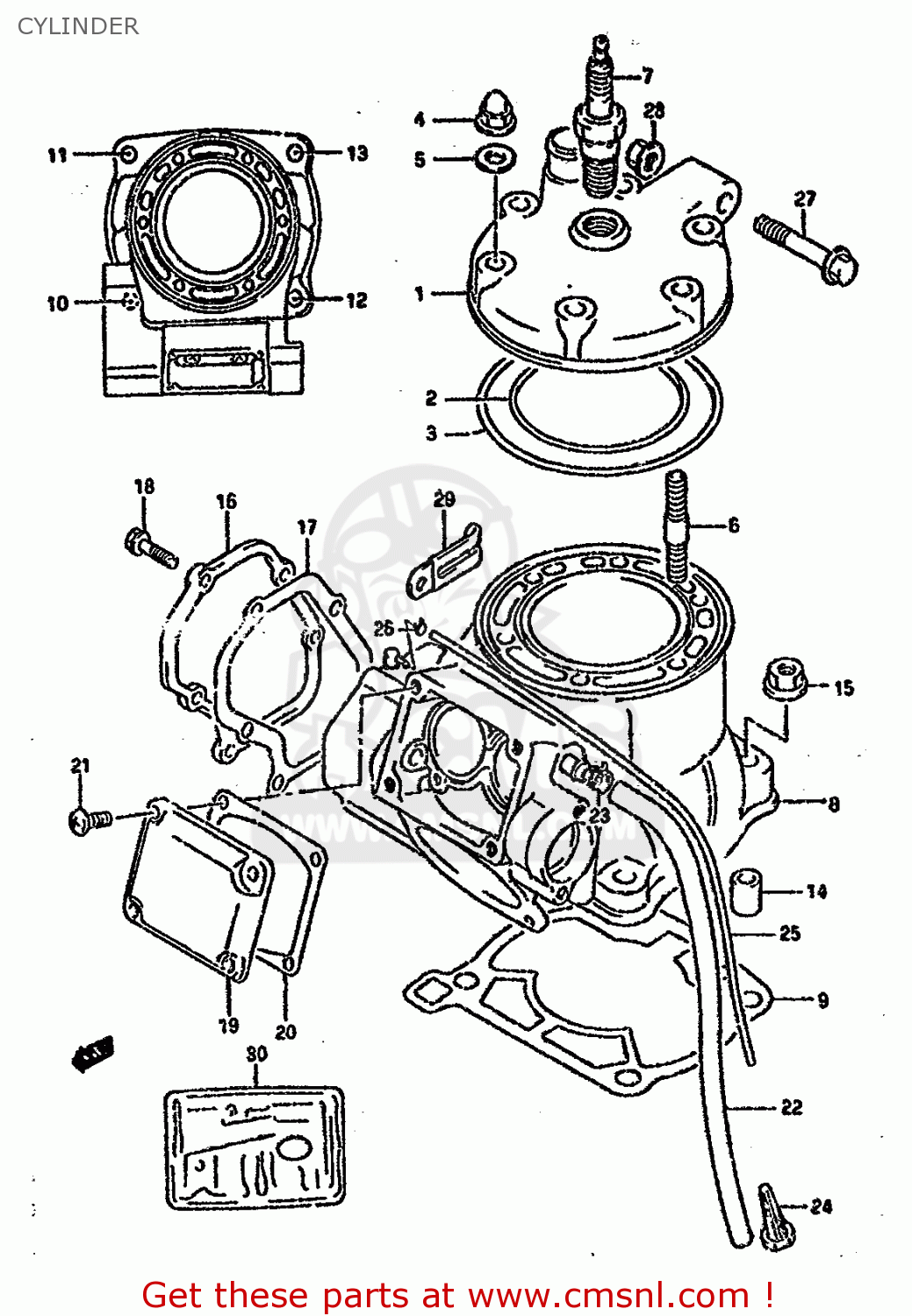

Cylinder diagram RM250 1995 (S) (E02 E04 E24 P37)
CYLINDER RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111128E02
ref: 1-1
MODEL P/R
HEAD,CYLINDER
€ 91.50
1-2
1111128E20
ref: 1-2
MODEL S
HEAD,CYLINDER
€ 109.00
2
1114728C20
ref: 2
O RING,CYLINDER HEAD NO.1
€ 14.00
3
1114828C20
ref: 3
O RING,CYLINDER HEAD NO.2
€ 8.00
4
0915908074
ref: 4
NUT
€ 7.00
5
0916808021
ref: 5
GASKET(8.5X17X2.3) (NAS)
€ 3.00
6
0910808227
ref: 6
BOLT,STUD
€ 4.50
7
0948200499
ref: 7
PLUG,SPARK(R4118S-8)
€ 81.50
8-1
1120028851
ref: 8-1
MODEL P
CYLINDER SET
€ 612.50
8-2
1120028860
ref: 8-2
MODEL R
CYLINDER SET
€ 612.50
8-3
1120028871
ref: 8-3
MODEL S
CYLINDER SET
€ 971.50
9
1124128C11
ref: 9
GASKET,CYLINDER (NAS)
€ 11.50
10
0142110308
ref: 10
STUD 10X30
€ 2.50
11
0142110358
ref: 11
STUD BOLT
€ 2.00
12
0142110408
ref: 12
STUD BOLT (L:40)
€ 2.00
13
0142110457
ref: 13
BOLT,STUD
€ 2.50
14
0920613006
ref: 14
PIN
€ 9.00
15-1
0831610107
ref: 15-1
MODEL P
NUT
€ 2.00
15-2
0831610103
ref: 15-2
MODEL R/S
NUT
€ 2.00
16
1123128C20
ref: 16
COVER,CYLINDER NO.1
€ 19.00
17
1123328C21
ref: 17
GASKET,CYL COVER (NAS)
€ 8.00
18-1
0154706167
ref: 18-1
MODEL P
BOLT
€ 2.00
18-2
0154706163
ref: 18-2
MODEL R/S
BOLT
€ 2.50
19
1124828C20
ref: 19
COVER,CYLINDER NO.2
€ 24.00
20-1
1123828C00
ref: 20-1
MODEL P/R
GASKET,CYLINDER COVER (NAS)
€ 2.50
20-2
1123805001
ref: 20-2
MODEL S
GASKET,CYLINDER COVER NO.2 (NAS)
€ 0.00
21-1
0211205167
ref: 21-1
MODEL P
SCREW
€ 2.50
21-2
0130005163
ref: 21-2
MODEL R/S
BOLT
€ 0.00
22
0934309501
ref: 22
HOSE
€ 13.50
23
0940112405
ref: 23
CLIP
€ 3.00
24
1127128E20
ref: 24
MODEL S
FILTER,EXH VALVE BREATHER HOSE
€ 12.00
25
0935250823600
ref: 25
MODEL S L:600-390
HOSE(5X8.2X600)
€ 13.00
26
0940108401
ref: 26
MODEL S
CLIP
€ 1.50
27
0910308043
ref: 27
BOLT(8X45)
€ 4.50
28
0915908067
ref: 28
NUT
€ 5.50
29
0940406402
ref: 29
CLAMP
€ 2.50
30-1
1140128824
ref: 30-1
MODEL P
GASKET SET (NAS)
€ 106.00
30-2
1140128832
ref: 30-2
MODEL R
GASKET SET (NAS)
€ 138.00
30-3
1140128833
ref: 30-3
MODEL S
GASKET SET (NAS)
€ 138.00
