FRONT CALIPER (MODEL S)
RM250 1995 (S) (E02 E04 E24 P37)

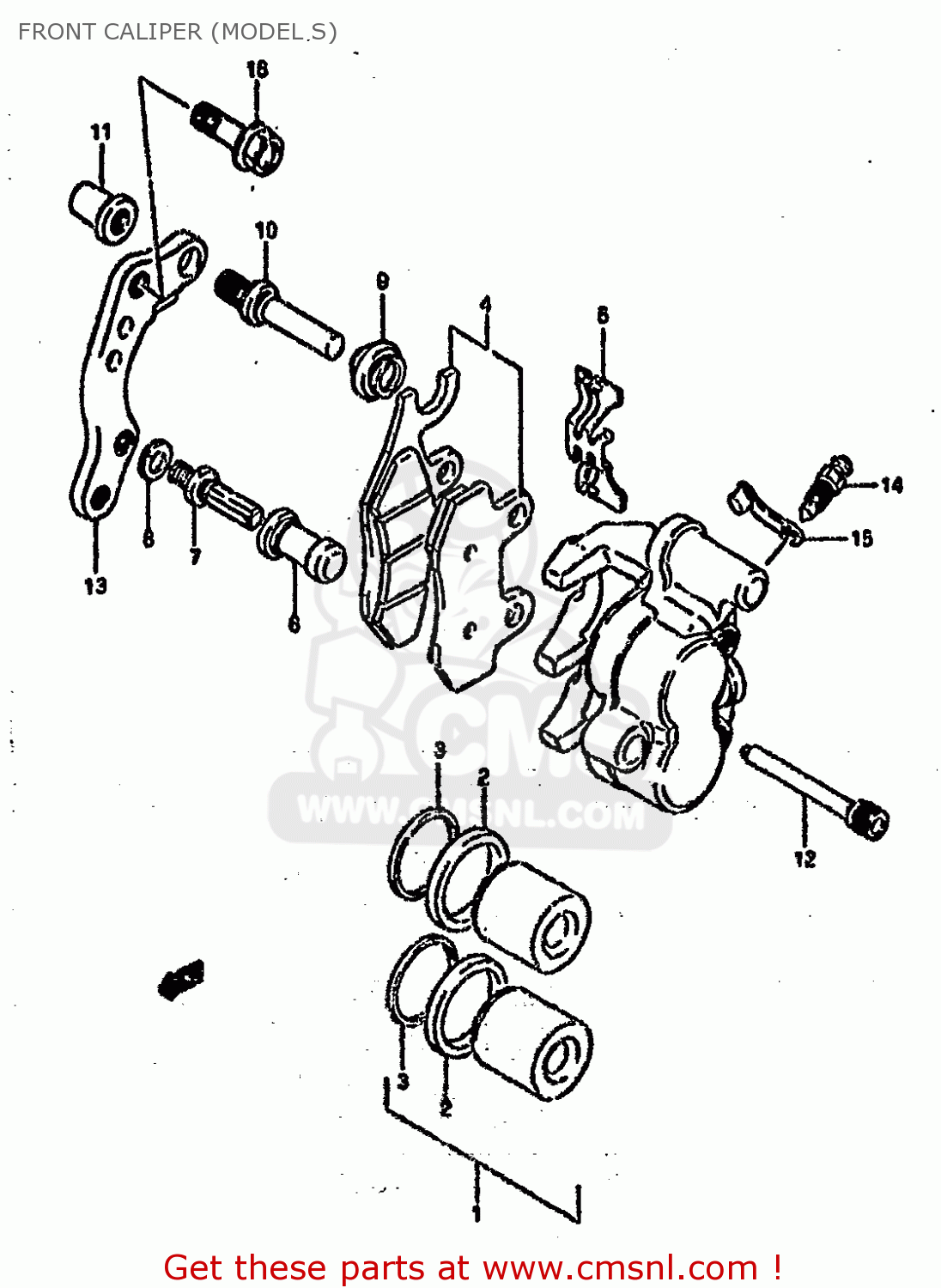

Front caliper (model s) diagram RM250 1995 (S) (E02 E04 E24 P37)
FRONT CALIPER (MODEL S) RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
0
5930027C40
ref: 0
CALIPER ASSEMBLY,FRONT,LEFT
€ 334.00
1
5930027840
ref: 1
PISTON SET
€ 44.00
2
5910700B20
ref: 2
SEAL,PISTON
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
€ 10.50
4
5930027870
ref: 4
PAD SET (NAS)
€ 43.00
5
5931527C30
ref: 5
SPRING,PAD
€ 8.50
6
5938613A00
ref: 6
BOOT
€ 6.50
7
5938213A00
ref: 7
BOLT,PIN
€ 6.50
8
5931427C30
ref: 8
WASHER
€ 2.00
9
5930314500
ref: 9
BOOT
€ 5.50
10
5938700B20
ref: 10
PIN,SLIDE
€ 12.50
11
5938800B20
ref: 11
NUT
€ 10.00
12
5934500B20
ref: 12
PIN,HOLDER
€ 9.50
13
5935100B20
ref: 13
BRACKET
€ 60.50
14
5912101A00
ref: 14
BLEEDER
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
€ 4.50
16
5938928E00
ref: 16
BOLT,FRONT CALIPER
€ 4.00
13
5935100B20
ref: 13
BRACKET
€ 60.50
14
5912101A00
ref: 14
BLEEDER
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
€ 4.50
16-1
0910308157
ref: 16-1
MODEL P
BOLT(8X35)
€ 4.00
16-2
5938928E00
ref: 16-2
MODEL R
BOLT,FRONT CALIPER
€ 4.00
