FRONT WHEEL
RM250 1995 (S) (E02 E04 E24 P37)

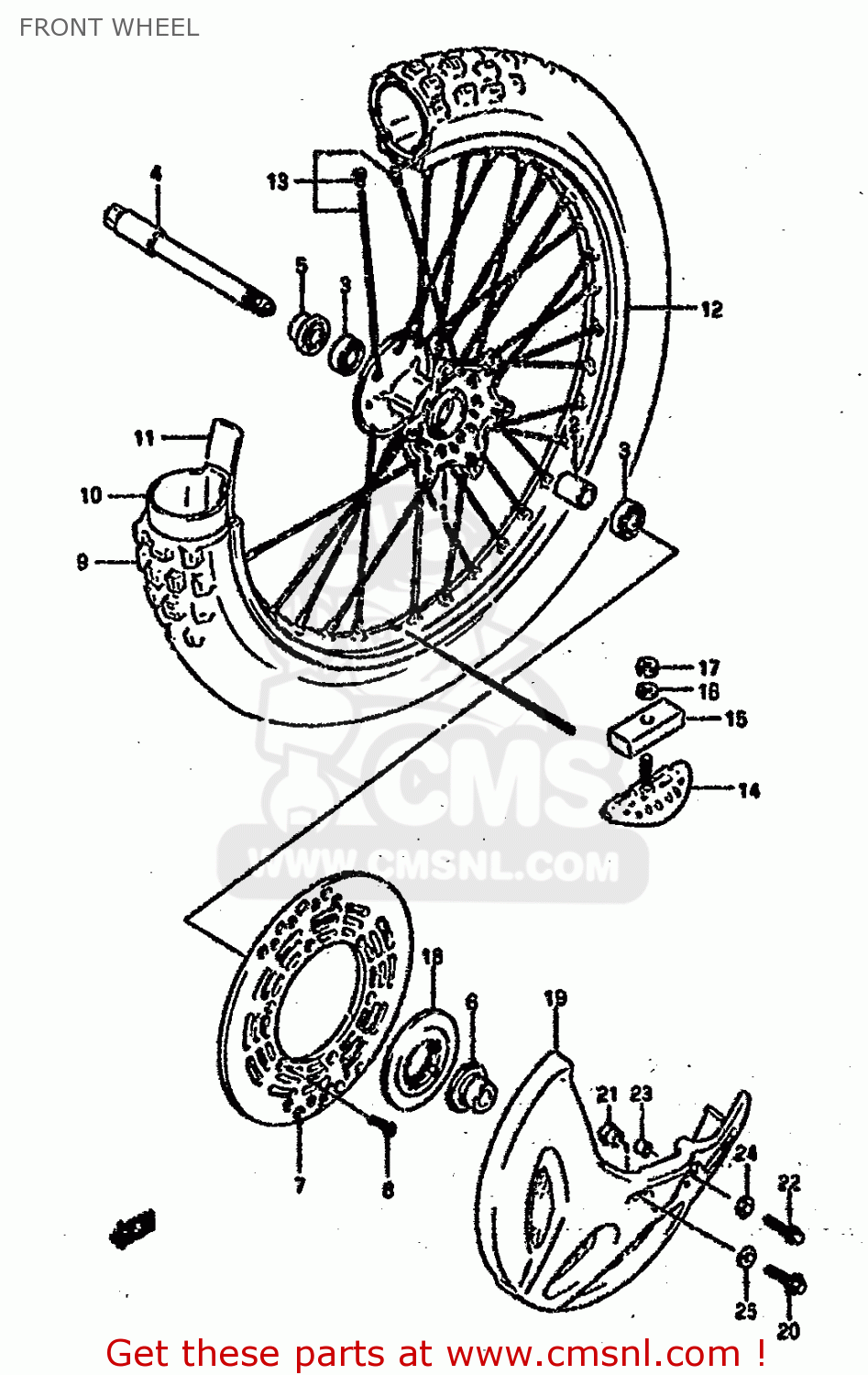

Front wheel diagram RM250 1995 (S) (E02 E04 E24 P37)
FRONT WHEEL RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1
5411127C00
ref: 1
HUB,FRONT
€ 125.00
2
5473143D00
ref: 2
SPACER,FRONT HUB BEARING
€ 34.00
3
0813360037
ref: 3
BEARING
€ 14.50
4
5471101B02
ref: 4
AXLE,FR
€ 58.00
5
5474001B01
ref: 5
SPACER,FR AXLE,R
€ 12.50
6
5475027C10
ref: 6
SPACER,FRONT AXLE,LEFT
€ 8.50
7
5922128C00
ref: 7
DISC,FR BRAKE
€ 193.00
8
5942129E00
ref: 8
SCREW,BRAKE DISC
€ 4.50
9-1
5511043010
ref: 9-1
E2
TIRE,FRONT (80/100-21) (DUNLOP)
€ 0.00
9-2
5511028C30
ref: 9-2
E4-55110-28C21
TIRE,FRONT (80/100-21) (BRIDGESTONE)
€ 97.00
9-3
5511028E00
ref: 9-3
MODEL P E24
TIRE,FRONT
€ 97.00
9-4
5511028E20
ref: 9-4
MODEL R/S E24,P37
TIRE,FRONT
€ 89.50
10-1
5520014540
ref: 10-1
E2-55200-16510
TUBE,INNER
€ 32.50
10-2
5520016510
ref: 10-2
E4,E24,P37
TUBE
€ 32.50
11-1
5526114540
ref: 11-1
E2
PROTECTOR,WHEEL INNER
€ 5.00
11-2
5526116510
ref: 11-2
E4,E24,P37
PROTECTOR,WHEEL,INNER
€ 5.00
12
5531128C00
ref: 12
RIM,FRONT WHEEL (1.60X2
€ 322.50
13
5532028E00
ref: 13
SPOKE SET,FR WHEEL
€ 97.00
14
6527014300
ref: 14
STOPPER,BEAD
€ 26.00
15
6527127C00
ref: 15
CUSHION,BEAD STOPPER
€ 5.50
16-1
0832211088
ref: 16-1
MODEL P
WASHER
€ 2.00
16-2
0832201083
ref: 16-2
MODEL R/S
WASHER
€ 1.50
17-1
0831012088
ref: 17-1
MODEL P
NUT
€ 2.00
17-2
0831000083
ref: 17-2
MODEL R/S
NUT
€ 1.50
18
5413827C10
ref: 18
CAP,FR HUB,L
€ 12.00
19-1
5923128C0130H
ref: 19-1
MODEL P
COVER,FRONT BRAKE DISC
€ 38.00
19-2
5923128C0125Y
ref: 19-2
MODEL R/S
COVER,FR BRAKE DISC
€ 41.00
20
0910308310
ref: 20
BOLT
€ 3.00
21
0916908047
ref: 21
WASHER (8.5X16X1.6)
€ 6.50
22-1
0154706257
ref: 22-1
MODEL P
BOLT
€ 2.50
22-2
0154706253
ref: 22-2
MODEL R/S
SCREW
€ 2.50
23
0918006116
ref: 23
SPACER(6.1X8X14.5)
€ 2.00
24
0916006028
ref: 24
WASHER(6.5X18X1)
€ 1.50
25
0916008043
ref: 25
WASHER(8.5X18X1)
€ 1.50
