RM250 1995 (S) (E02 E04 E24 P37)

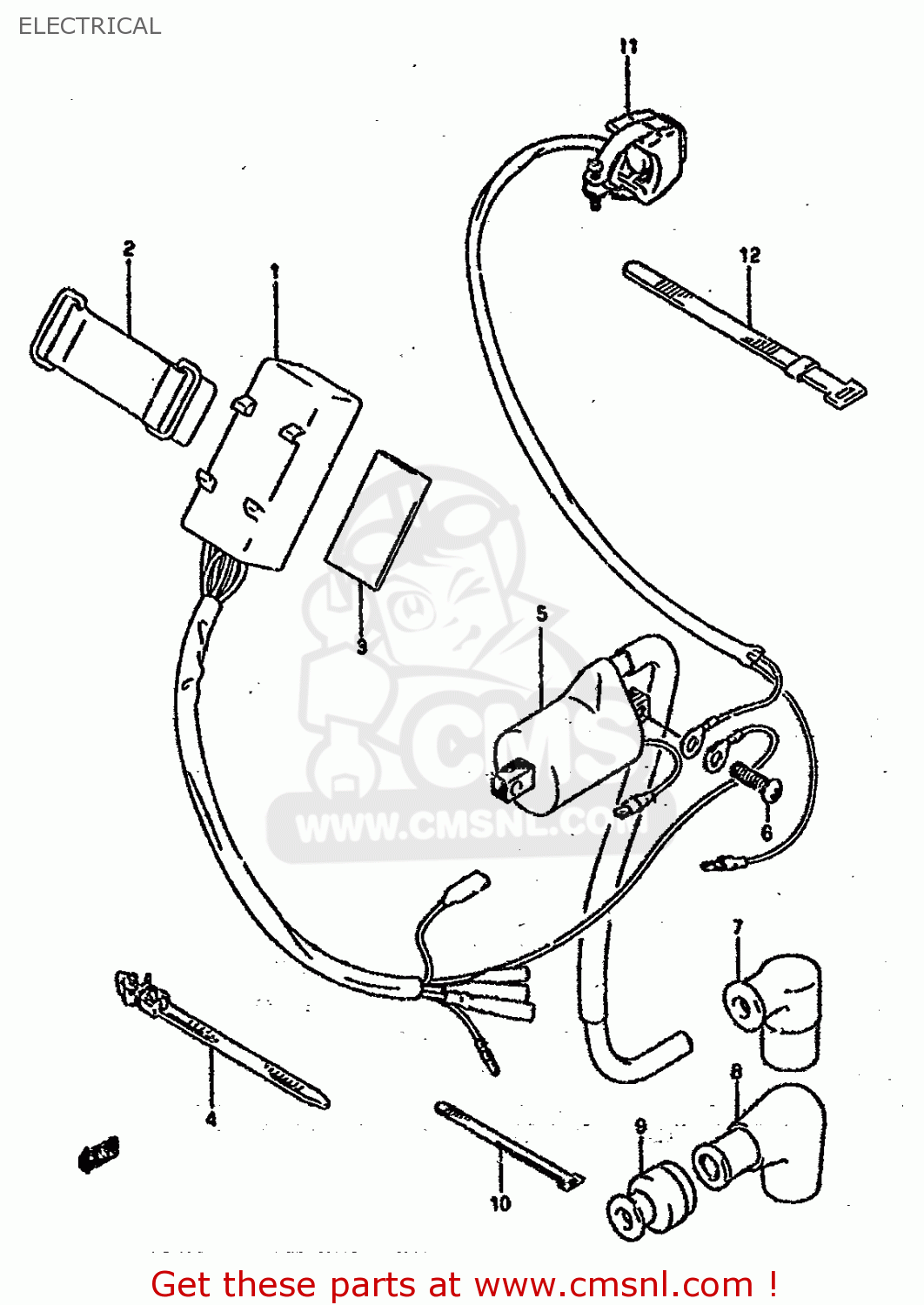

Electrical diagram RM250 1995 (S) (E02 E04 E24 P37)
ELECTRICAL RM250 1995 (S) (E02 E04 E24 P37)
×
prices are in EUR
ref
part #
description
quantity
1-1
3290028E00
ref: 1-1
MODEL P
CDI UNIT
€ 457.50
1-2
3290028E10
ref: 1-2
MODEL R
CDI UNIT
€ 320.00
1-3
3290028E20
ref: 1-3
MODEL S
CDI UNIT
€ 640.50
2-1
3294214111
ref: 2-1
MODEL P/R
BAND(L:65)
€ 8.00
2-2
3294214301
ref: 2-2
MODEL S
BAND,CDI UNIT(L:80)
€ 10.00
3
3365137000
ref: 3
CUT 50X30X3
PROTECTOR(170X95X3.0)
€ 5.00
4
0940711402
ref: 4
CLAMP(L:90)
€ 2.50
5
3341043D00
ref: 5
COIL ASSY,IGNITION
€ 119.50
6-1
0912906003
ref: 6-1
MODEL P
SCREW(6X21)
€ 2.00
6-2
0211236203
ref: 6-2
MODEL R/S
SCREW
€ 2.00
7
3351041111
ref: 7
MODEL P
CAP,SPARK PLUG
€ 23.00
8
3351020A00
ref: 8
MODEL R/S
CAP,SPARK PLUG
€ 23.00
9
3354238B00
ref: 9
MODEL R/S
SEAL,HIGH TENSION CORD
€ 4.50
10
0940709402
ref: 10
CLAMP
€ 3.00
11
3782027C00
ref: 11
SWITCH ASSEMBLY
€ 24.50
12
0940712402
ref: 12
CLAMP(L:120)
€ 3.00
