CRANKCASE
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

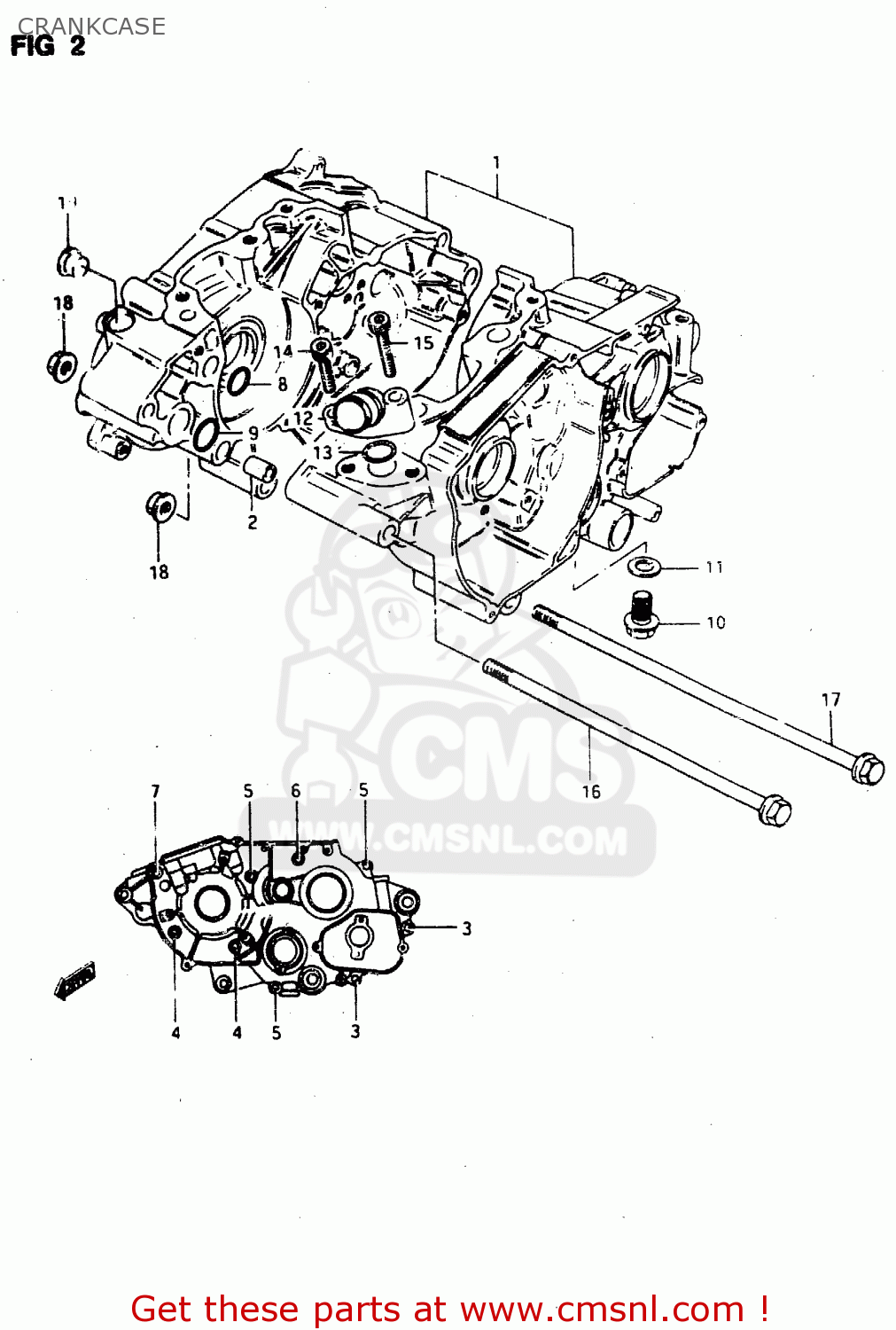

Crankcase diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
CRANKCASE RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
1130013823
ref: 1
CRANKCASE SET
€ 361.50
2
0421111189
ref: 2
PIN
€ 2.00
3
0211206303
ref: 3
SCREW 6X30
€ 2.50
4
0211206353
ref: 4
SCREW
€ 2.50
5
0211206453
ref: 5
SCREW
€ 1.50
6
0211206653
ref: 6
SCREW
€ 2.00
7
0211206753
ref: 7
SCREW
€ 1.50
8
0928012007
ref: 8
O-RING (D:2.4 ID:12.3)
€ 3.00
9
0928016005
ref: 9
O RING(D:2.4,ID:15.8)
€ 1.50
10
0150010203
ref: 10
BOLT
€ 3.50
11
0916810002
ref: 11
GASKET(10X14X3.6) (NAS)
€ 2.00
12
1742113601
ref: 12
CONNECTOR,WATER INLET
€ 27.00
13
0928016005
ref: 13
O RING(D:2.4,ID:15.8)
€ 1.50
14
0713006203
ref: 14
BOLT,CRKCASE,R
€ 3.00
15
0713006303
ref: 15
BOLT
€ 3.00
16
D150708025
ref: 16
BOLT (8X120)
€ 4.50
17
D150708045
ref: 17
BOLT (8X140)
€ 3.50
18
D831960085
ref: 18
NUT
€ 0.50
19
0925018003
ref: 19
MODEL T:P29; MODEL V
PLUG(OD:22)
€ 2.00
