MAGNETO

RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

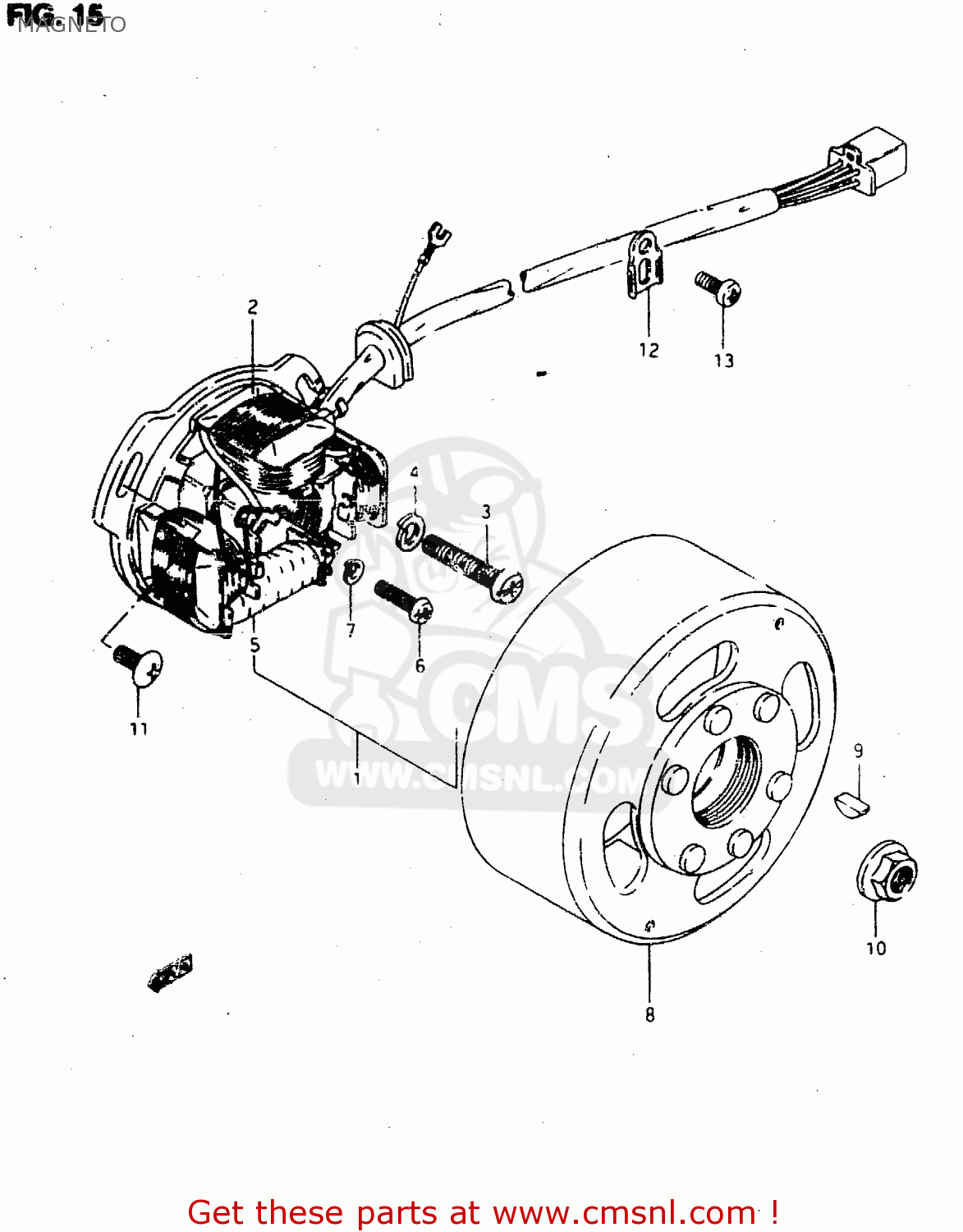

Magneto diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

MAGNETO RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

MAGNETO RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

prices are in EUR

ref

part #

description

quantity

1

3210113610
ref: 1

STATOR ASSY

€ 275.50

2

3212048720
ref: 2

COIL,STARTER

€ 132.50

3

0211206307
ref: 3

SCREW

€ 2.50

4

0832101067
ref: 4

WASHER,LOCK

€ 2.50

5

3214035410
ref: 5

COIL,PRIMARY

€ 58.50

6

0211204163
ref: 6

SCREW 4X16

€ 1.00

7

0832101043
ref: 7

WASHER,LOCK

€ 2.00

8

3210213610
ref: 8

ROTOR

€ 202.50

9

0834131039
ref: 9

KEY

€ 2.00

10

0831610103
ref: 10

NUT

€ 2.00

11

0211205123
ref: 11

SCREW

€ 1.50

12

3149745000
ref: 12

CLAMP,GENERATOR LEAD WIRE

€ 1.50

13

0211205083
ref: 13

SCREW

€ 2.00
