MUFFLER
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

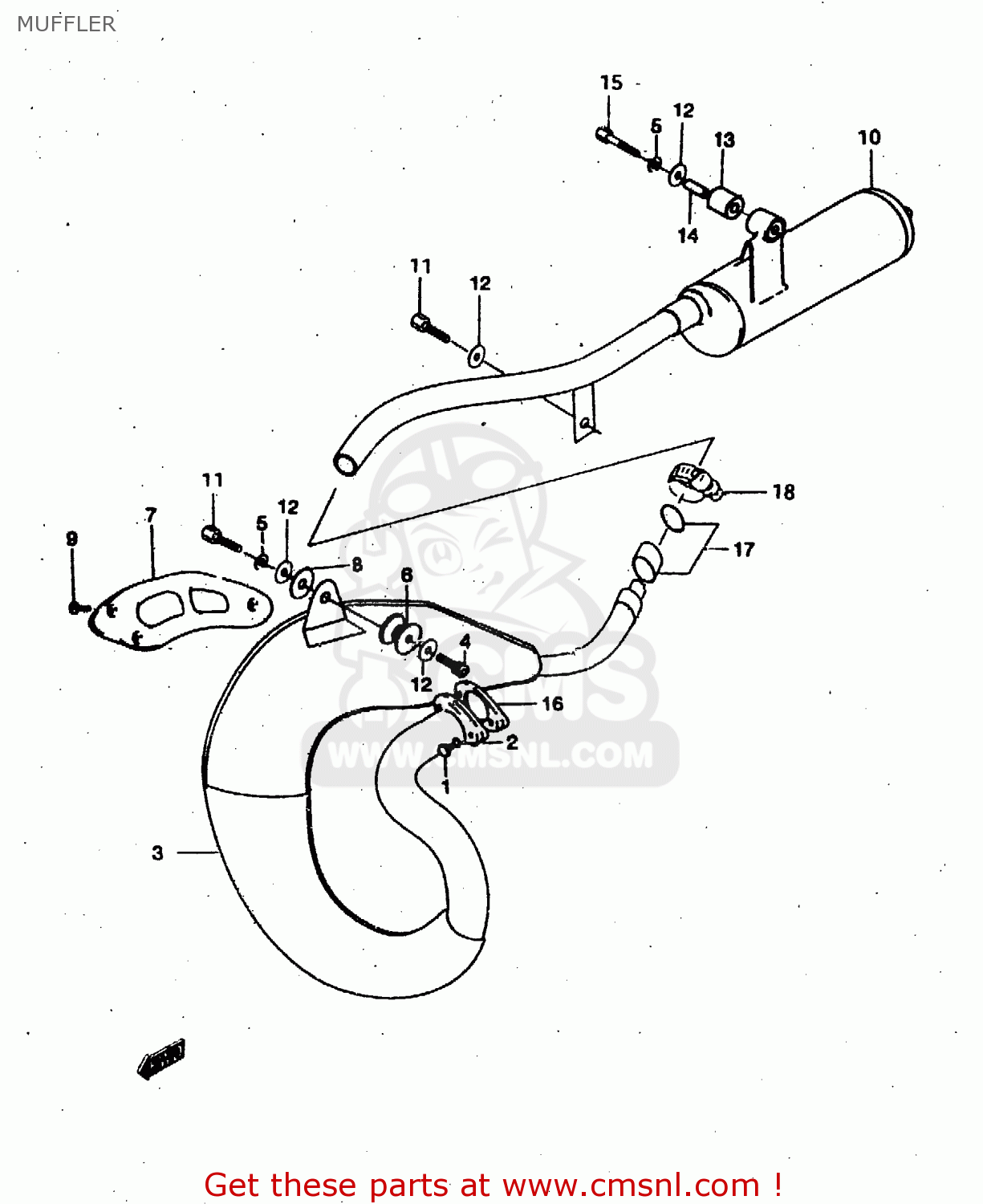

Muffler diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
MUFFLER RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
0713006203
ref: 1
BOLT,CRKCASE,R
€ 3.00
2
0832101063
ref: 2
LOCK WASHER
€ 2.00
3
1431003E00E00
ref: 3
P53
MUFFLER ASSY
€ 170.00
3
1431003E10E02
ref: 3
P29
BODY, MUFFLER 1ST
€ 215.00
3
1431003E20E02
ref: 3
P4
BODY, MUFFLER 1ST
€ 273.00
4
0713008123
ref: 4
PLUG
€ 2.50
5
0832101083
ref: 5
LOCK WASHER
€ 2.50
6
1477000E00
ref: 6
BUSH
€ 15.00
7
1478003E00EE3
ref: 7
GUARD
€ 6.50
8
1478100E00
ref: 8
KLINGERIT
€ 1.50
9
0211206063
ref: 9
BOLT
€ 2.00
10
1433003E00E03
ref: 10
MUFFLER ASSY
€ 111.50
11
0713008163
ref: 11
P29, P53
BOLT
€ 3.00
11
09689AF124
ref: 11
P4
BOLT
€ 2.50
12
0916008025
ref: 12
WASHER (8.5X24X2.3)
€ 2.00
13
0932012032
ref: 13
CUSHION
€ 8.00
14
D9212181H8
ref: 14
<-09180-08194
SPACER
€ 2.00
15
0713008353
ref: 15
BOLT
€ 4.00
16
1418104710
ref: 16
GASKET,EXHAUST PIPE (NAS)
€ 5.00
17
1477148002
ref: 17
CONNECTOR,MUFFLER
€ 8.00
18
0940238511
ref: 18
CLAMP
€ 10.50
