RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

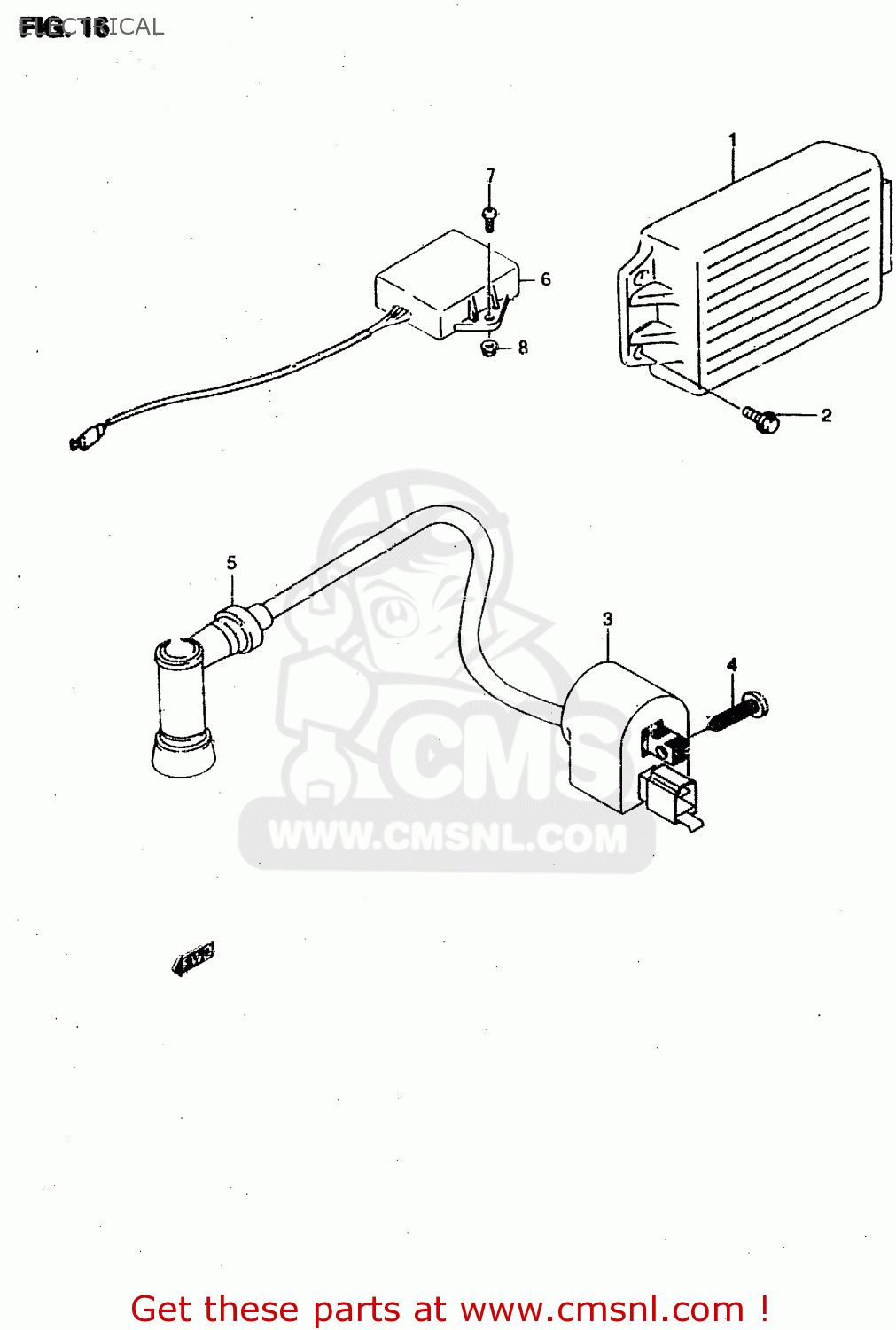

Electrical diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
ELECTRICAL RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
3280003E00
ref: 1
MODEL T:P53; MODEL V
RECTIFIER
€ 91.00
1
3280003E01
ref: 1
MODEL V:P4, P53 F.NO
RECTIFIER
€ 52.00
1
3280010E10
ref: 1
MODEL V:P29
REGULATOR
€ 66.50
2
0157006163
ref: 2
BOLT
€ 2.50
3
3341048710
ref: 3
UNIT & COIL ASSY,IGNITION
€ 216.00
4
0211206163
ref: 4
SCREW 6X16
€ 2.00
5
3351000E01
ref: 5
<-33510-00E00
CAP ASSY, SPAR
€ 3.50
6
3299504700
ref: 6
P4
UNIT ASSY,SIDE STAND INTERLOCK
€ 87.00
7
0211206163
ref: 7
P4
SCREW 6X16
€ 2.00
8
0831610063
ref: 8
P4
NUT
€ 2.50
