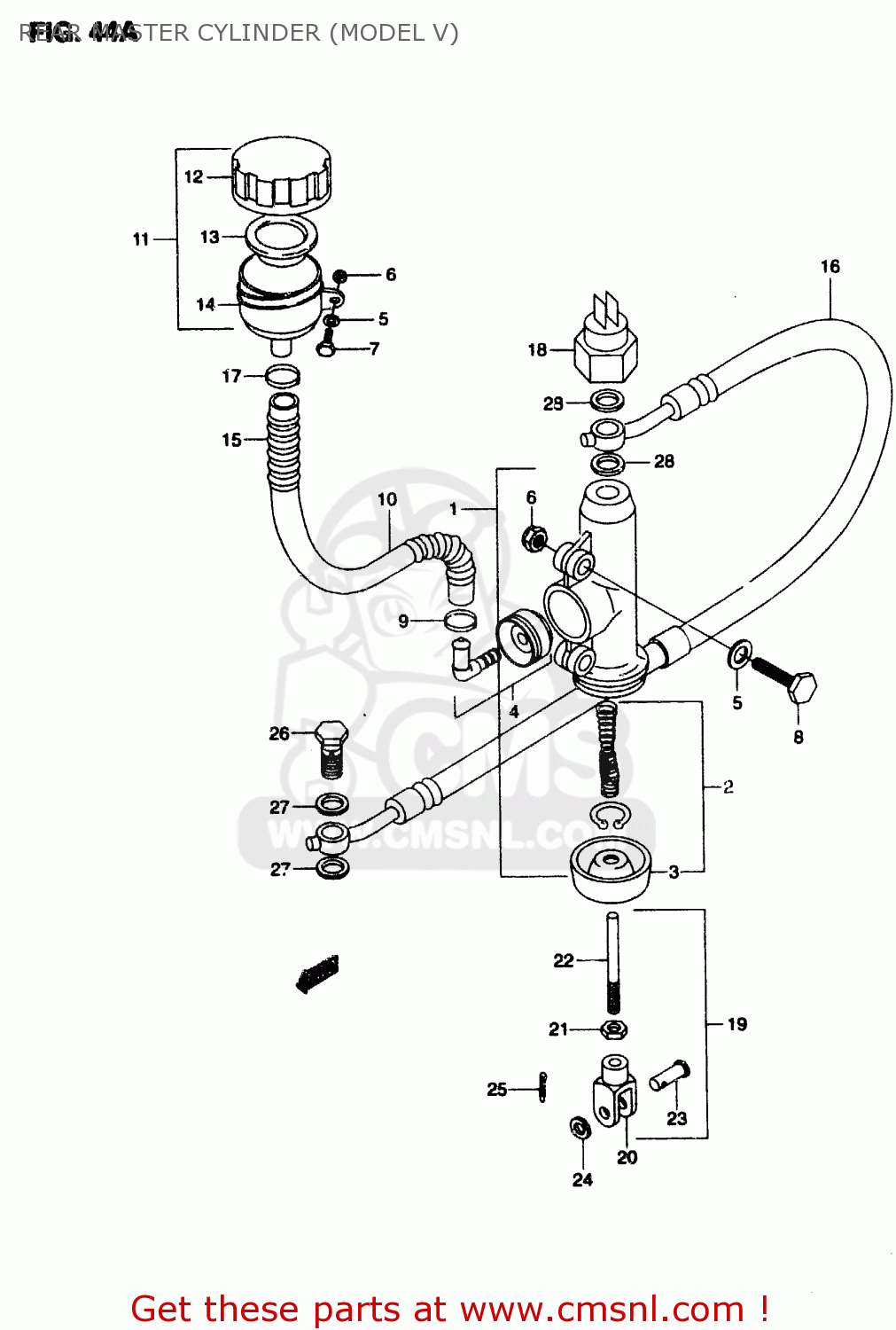

REAR MASTER CYLINDER (MODEL V)

ref

part #

description

quantity

1

6960003E10
ref: 1

CILINDER ASSY

€ 88.50

2

6961003E00
ref: 2

PISTON CUP SET

€ 30.00

3

6969103E00
ref: 3

YOKE

€ 2.00

4

6967203E00
ref: 4

CONNECTOR

€ 5.00

5

0832201063
ref: 5

WASHER

€ 2.00

6

0831931063
ref: 6

NUT

€ 2.50

7

0150006163
ref: 7

BOLT

€ 2.00

8

0150006203
ref: 8

BOLT

€ 2.00

9

0940108401
ref: 9

CLIP

€ 1.50

10

6973103E10
ref: 10

HOSE (L:220)

€ 37.00

11

6970003E00
ref: 11

TANK ASSY, REAR RESERVOIR

€ 24.50

12

6966903E00
ref: 12

CAP

€ 3.50

13

6966803E00
ref: 13

DIAPHRAGM

€ 6.00

14

6966703E00
ref: 14

TANK

€ 2.50

15

6973203E10
ref: 15

SPRING

€ 5.50

16

6948003E01
ref: 16

HOSE, REAR BRAKE

€ 272.50

17

0940109401
ref: 17

CLAMP

€ 2.50

18

3774003E10
ref: 18

CONTACT

€ 16.50

19

6969203E00
ref: 19

PLATE ASSY

€ 30.50

20

6969103E00
ref: 20

YOKE

€ 2.00

21

0831000063
ref: 21

NUT 6MM

€ 2.00

22

6967003E00
ref: 22

ROD, PUSH

€ 30.50

23

0920003E00
ref: 23

PIN

€ 5.00

24

0832201063
ref: 24

WASHER

€ 2.00

25

0411120158
ref: 25

PIN

€ 1.50

26

5948100E10
ref: 26

BOLT

€ 1.50

27

5948200E10
ref: 27

WASHER

€ 1.00
