SPEEDOMETER
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

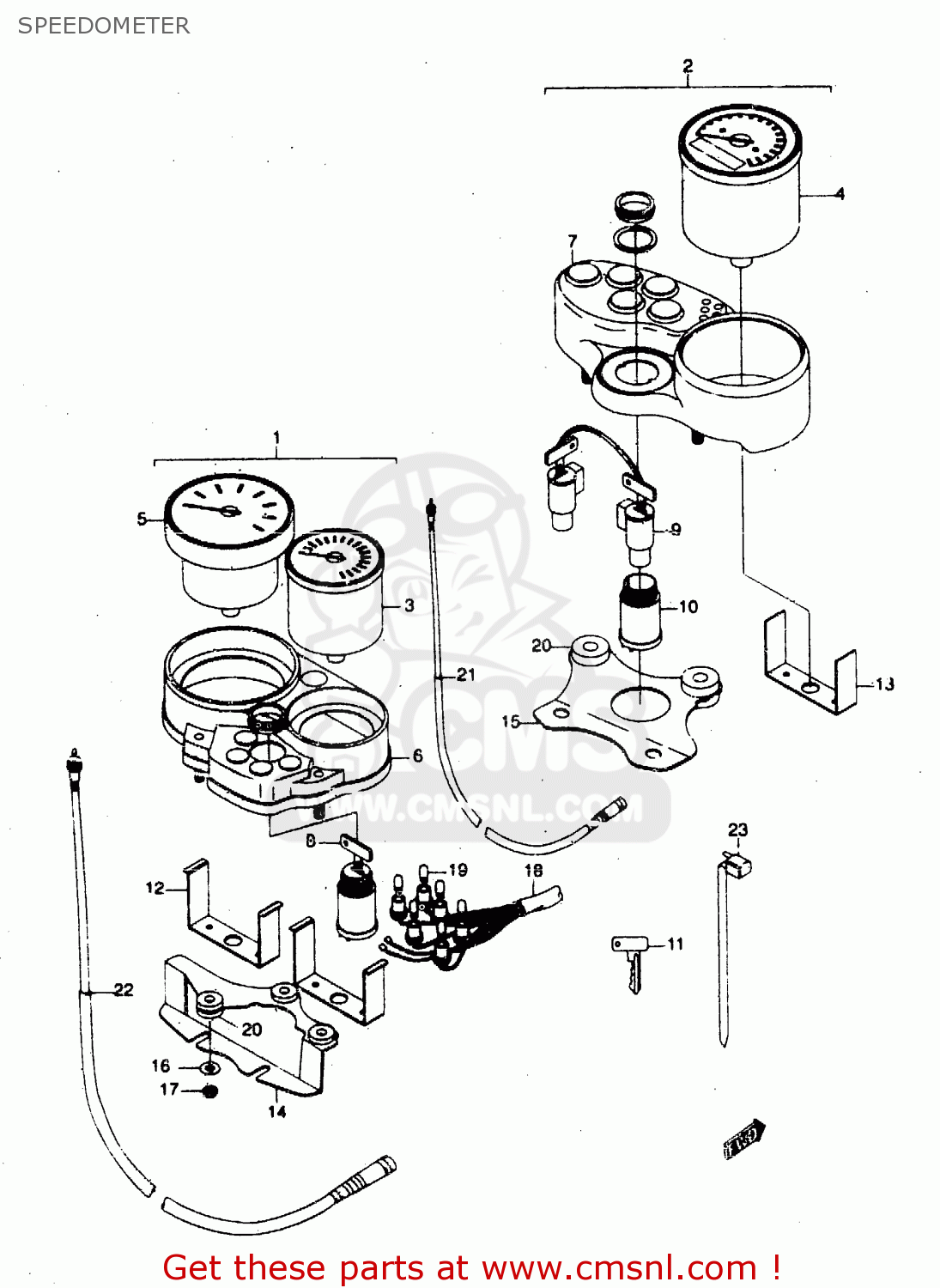

Speedometer diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
SPEEDOMETER RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
3410003E01
ref: 1
MODEL T:P53->34100-0
SPEEDOMETER ASSY
€ 336.00
2
3410003E11
ref: 2
MODEL T:P29->34100-0
SPEEDOMETER ASSY
€ 0.00
2
3410003E21
ref: 2
MODEL V:P29 ~F.NO.VT
SPEEDOMETER ASSY
€ 0.00
2
3410003E30
ref: 2
P4
SPEEDOMETER ASSY
€ 209.00
2
3410003E40
ref: 2
MODEL V:P53 F.NO.VTT
SPEEDOMETER ASSY
€ 165.50
2
3410003E50
ref: 2
MODEL V:P29 F.NO.VTT
SPEEDOMETER ASSY
€ 0.00
3
3412003E00
ref: 3
MODEL T:P53; MODEL V
SPEEDOMETER
€ 98.00
4
3412003E10
ref: 4
MODEL T:P29; MODEL V
SPEEDOMETER
€ 93.50
5
3421003E00
ref: 5
MODEL T:P53; MODEL V
TACHOMETER
€ 257.50
6
3415003E00
ref: 6
MODEL T:P53; MODEL V
HODD, METER
€ 31.00
7
3415003E10
ref: 7
MODEL T:P29; MODEL V
HODD, METER
€ 76.00
8
3711003E00
ref: 8
P29, P53
KEY ASSY
€ 64.50
9
3701103E00
ref: 9
P4
KEY
€ 22.50
10
3711003E10
ref: 10
P4
BODY ASSY, KEY
€ 45.50
11
3714603E00
ref: 11
P29, P53
KEY, BLANK
€ 0.00
11
3714603E10
ref: 11
P4
KEY, BLANK
€ 25.50
12
3411803E00
ref: 12
MODEL T:P53; MODEL V
BRACKET
€ 4.50
13
3411803E00
ref: 13
MODEL T:P29; MODEL V
BRACKET
€ 4.50
14
3495003E00EE3
ref: 14
MODEL T:P53; MODEL V
BRACKET
€ 12.50
15
3495003E10EE3
ref: 15
MODEL T:P29; MODEL V
BRACKET
€ 9.50
16
0916006193
ref: 16
MODEL T:P53; MODEL V
WASHER
€ 0.00
16
0916006193
ref: 16
MODEL T:P29; MODEL V
WASHER
€ 0.00
17
0831921063
ref: 17
MODEL T:P53; MODEL V
NUT
€ 2.50
17
0831921063
ref: 17
MODEL T:P29; MODEL V
NUT
€ 2.50
18
3417003E01
ref: 18
MODEL T:P53; MODEL V
HARNESS
€ 0.00
18
3417003E11
ref: 18
MODEL T:P29
HARNESS
€ 0.00
18
3417003E21
ref: 18
MODEL V:, P29 ~F.NO.
HARNESS
€ 0.00
18
3417003E30
ref: 18
P4
HARNESS
€ 31.50
18
3417003E40
ref: 18
MODEL V:, P53 F.NO.V
HARNESS
€ 76.50
18
3417003E50
ref: 18
MODEL V:, P29 F.NO.V
HARNESS
€ 77.00
19
3417209E00
ref: 19
MODEL T:P53; MODEL V
SOCKET AND BULB
€ 4.50
19
3417212023
ref: 19
BULB, OIL & NEUTRAL (12V, 2W)
€ 8.00
19
3417209E00
ref: 19
MODEL T:P29; MODEL V
SOCKET AND BULB
€ 4.50
19
3417209E00
ref: 19
P4
SOCKET AND BULB
€ 4.50
20
3491203E00
ref: 20
MODEL T:P53; MODEL V
CUSHION
€ 3.50
20
3491203E00
ref: 20
MODEL T:P29; MODEL V
CUSHION
€ 3.50
21
3494003E00
ref: 21
MODEL T:P53; MODEL V
CABLE ASSY, TACHOMETER
€ 41.00
22
3491003E00
ref: 22
MODEL T:P29; MODEL V
CABLE,SPEEDOME
€ 10.00
22
3491000E01
ref: 22
MODEL T:P53; MODEL V
CABLE ASSY, SPEEDOMETER
€ 18.00
22
3491003E10
ref: 22
MODEL V:, P4, P29 AN
CABLE ASSY, SPEEDOMETER
€ 77.00
23
0940714403
ref: 23
CLAMP(L:125)
€ 2.50
