LEFT HANDLE SWITCH

RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

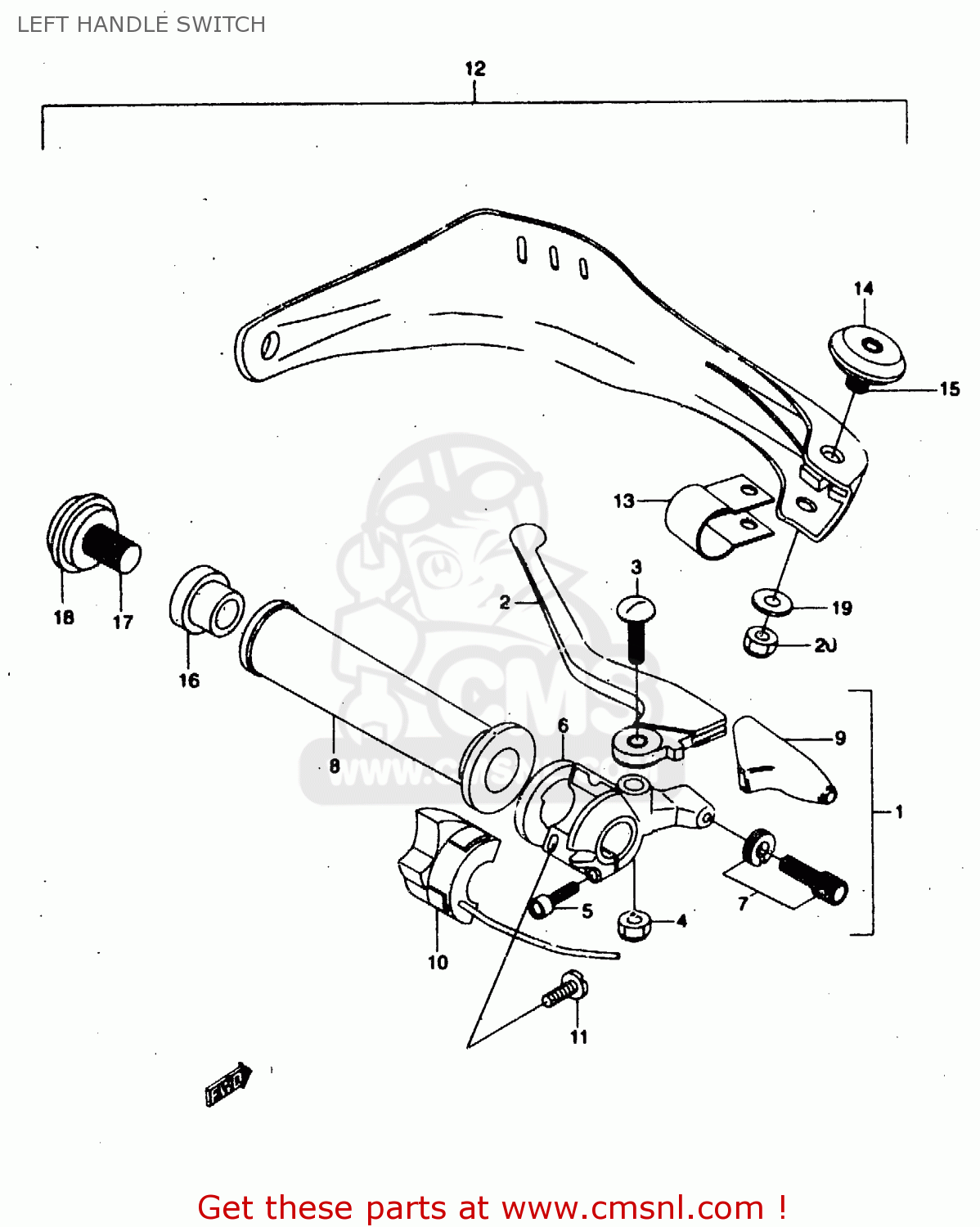

Left handle switch diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

LEFT HANDLE SWITCH RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
LEFT HANDLE SWITCH RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
LEFT HANDLE SWITCH RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
prices are in EUR
ref
part #
description
quantity
1
5761003E00
ref: 1
MODEL T; MODEL V:P53
LEVER ASSY, CLUTCH
€ 43.00
1
5761003E10
ref: 1
MODEL V:P4, P29
LEVER ASSY, CLUTCH
5761003E10
€ 39.00
2
5762003E00
ref: 2
LEVER
5762003E00
€ 9.50
3
5763103E00
ref: 3
SCREW
5763103E00
€ 1.00
4
0831921068
ref: 4
NUT 6MM
0831921068
€ 2.00
5
0713006205
ref: 5
BOLT
€ 3.00
6
5751103E00
ref: 6
MODEL T; MODEL V:P53
HOLDER
€ 0.00
6
5751103E10
ref: 6
MODEL V:P4, P29
TILLER HANDLE
5751103E10
€ 10.50
7
5744103E10
ref: 7
ADJUSTER, CABLE
5744103E10
€ 5.50
8
5721103E00
ref: 8
P29, P53
GRIP, LH
€ 0.00
8
5721103E00800
ref: 8
P4
GRIP, LH
5721103E00800
€ 3.00
9
5734103E00
ref: 9
COVER
5734103E00
€ 4.00
10
3740003E00
ref: 10
MODEL T; MODEL V:, P
SWITCH ASSY
3740003E00
€ 111.00
10
3740003E10
ref: 10
MODEL V:P29 ~F.NO.VT
SWITCH ASSY
€ 109.00
10
3740003E20
ref: 10
P4
SWITCH ASSY
€ 60.50
10
3740003E30
ref: 10
MODEL V:P53 F.NO.VTT
SWITCH ASSY
3740003E30
€ 93.00
10
3740003E40
ref: 10
MODEL V:P29 F.NO.VTT
SWITCH
3740003E40
€ 139.50
11
D218303105
ref: 11
MODEL:P53
SCREW
€ 0.00
12
5754003E0030H
ref: 12
COVER ASSY, KNUCKLE LH(WHITE)
€ 35.50
12
5754003E0025Y
ref: 12
COVER,KNUCKLE
5754003E0025Y
€ 11.00
13
5754203E00
ref: 13
HOLDER
5754203E00
€ 2.00
14
5754303E00
ref: 14
SPACER
5754303E00
€ 2.00
15
D710706458
ref: 15
BOLT
D710706458
€ 4.00
16
5754503E00
ref: 16
NUT
€ 5.00
17
D710706608
ref: 17
BOLT
€ 3.50
18
5754403E00
ref: 18
SPACER
5754403E00
€ 3.00
19
D832211068
ref: 19
WASHER
€ 1.00
20
D831960068
ref: 20
NUT
D831960068
€ 0.50
