OIL PUMP
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

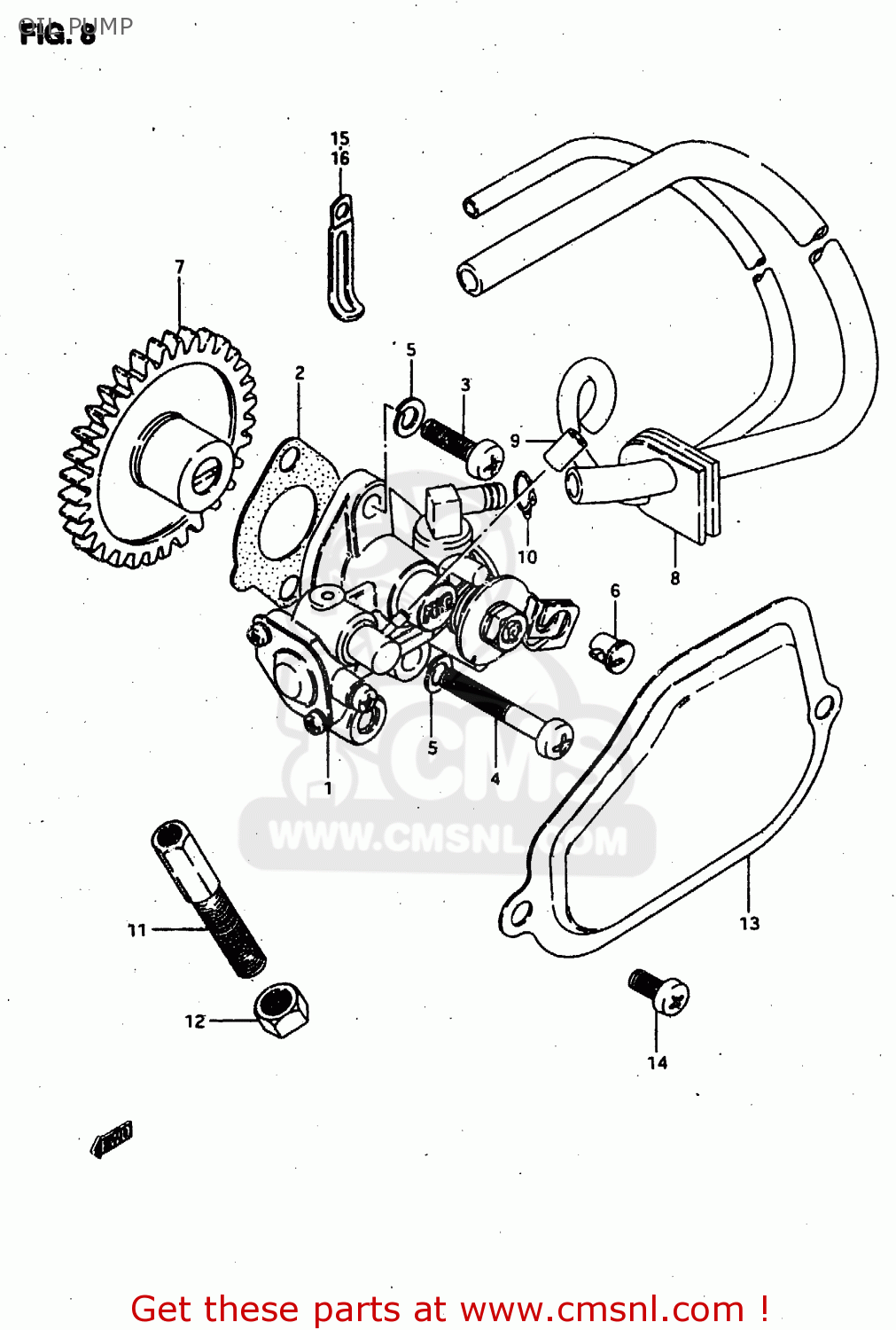

Oil pump diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
OIL PUMP RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
1610004710
ref: 1
PUMP ASSY,OIL
€ 138.50
2
1673103101
ref: 2
GASKET,OIL PUMP (NAS)
€ 2.50
3
0211235163
ref: 3
SCREW
€ 2.50
4
0211235303
ref: 4
SCREW
€ 2.50
5
0832101057
ref: 5
WASHER,LOCK
€ 2.00
6
1629203112
ref: 6
TERMINAL,CABLE
€ 3.50
7
1633004700
ref: 7
GEAR,OIL PUMP DRIVEN(NT:36)
€ 28.00
8
1682004710
ref: 8
HOSE,OIL
€ 8.50
9
0940104401
ref: 9
CLIP
€ 2.50
10
0940108401
ref: 10
CLIP
€ 1.50
11
0911908014
ref: 11
BOLT
€ 3.50
12
0831000083
ref: 12
NUT
€ 1.50
13
1138504701
ref: 13
CAP,OIL PUMP INSPECTION
€ 13.00
14
0211205103
ref: 14
SCREW
€ 2.00
15
0940406429
ref: 15
CLAMP(L:45)
€ 2.50
16
0940406413
ref: 16
CLAMP
€ 2.50
16
0940406431
ref: 16
CLAMP(L:65)
€ 2.50
