HEADLAMP
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

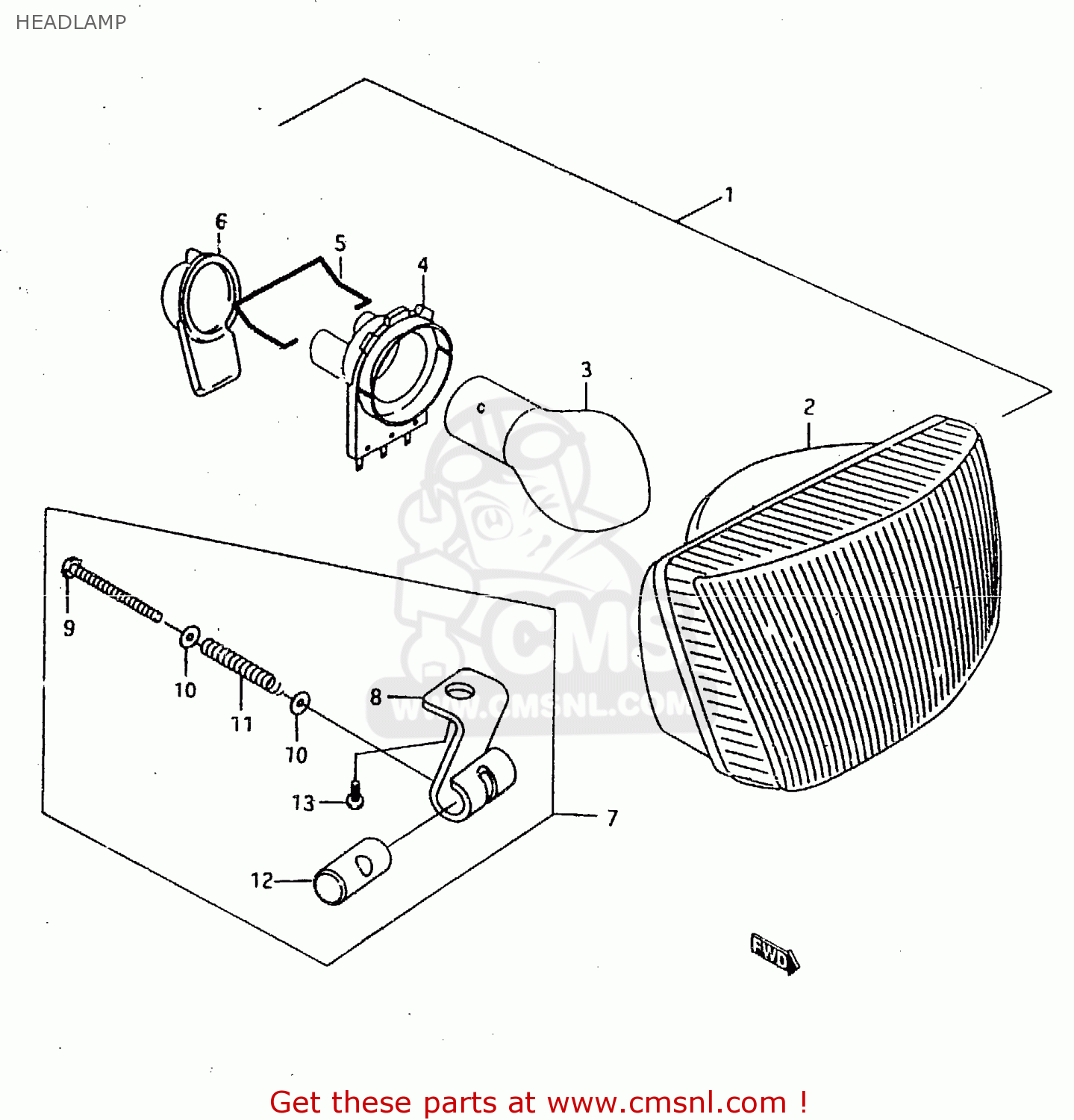

Headlamp diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
HEADLAMP RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
3510003E00
ref: 1
P29, P53
HEADLAMP ASSY
€ 60.00
1
3510003E10
ref: 1
P4
HEADLAMP
€ 24.00
2
3512003E00
ref: 2
P29, P53
UNIT
€ 56.50
2
3512003E10
ref: 2
P4
UNIT
€ 29.50
3
0947100E01
ref: 3
P29, P53
BULB (12V, 25/25W)
€ 0.00
3
0947100E10
ref: 3
P4
BULB (12V, 15W)
€ 2.50
4
3517100E10
ref: 4
P29, P53
SOCKET
€ 9.00
4
3517100E20
ref: 4
P4
SOCKET
€ 7.50
5
3517400E10
ref: 5
SOCKET SPRING
€ 3.00
6
3517200E10
ref: 6
COVER, SOCKET
€ 8.00
7
3515003E00
ref: 7
BRACKET SET
€ 5.50
8
3515503E00
ref: 8
BRACKET
€ 2.50
9
D211404405
ref: 9
BOLT
€ 0.00
10
D832211048
ref: 10
WASHER
€ 1.00
11
3515400E00
ref: 11
SPRING
€ 5.50
12
3515200E10
ref: 12
NUT
€ 2.50
13
0211205083
ref: 13
SCREW
€ 2.00
