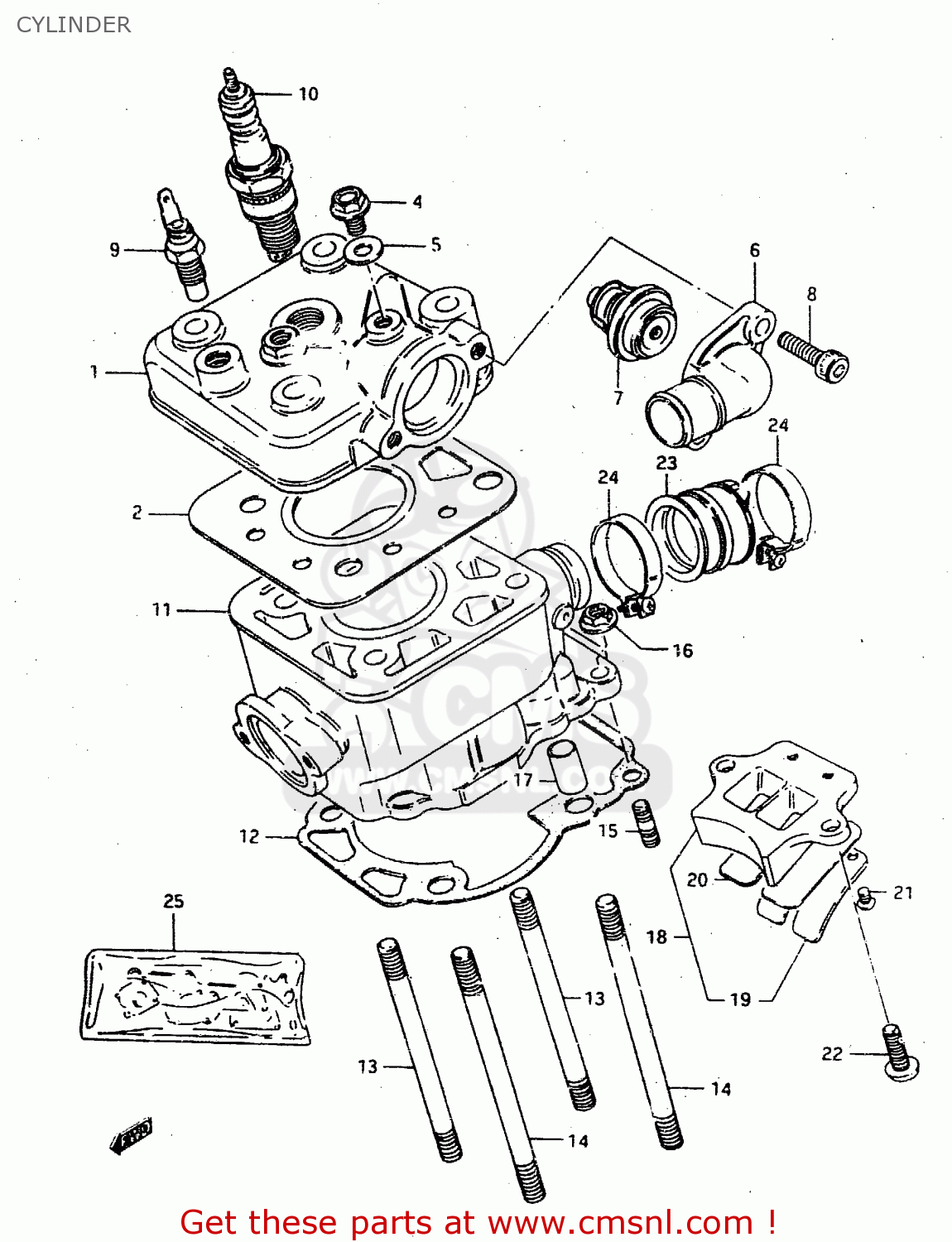

CYLINDER

ref

part #

description

quantity

1

1111104702
ref: 1

HEAD,CYLINDER

€ 101.00

2

1114104720
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 14.00

3

0831610083
ref: 3

NUT

€ 3.00

4

0936006015
ref: 4

UNION

€ 3.00

5

0916806004
ref: 5

GASKET(6.2X11X1).2 (NAS)

€ 1.50

6

1766104700
ref: 6

COVER,THERMOSTAT

€ 30.50

7

1767004700
ref: 7

THERMOSTAT,WATER

€ 31.00

8

0713006203
ref: 8

BOLT,CRKCASE,R

€ 3.00

9

3485003E00
ref: 9

GAUGE ASSY, WATER TEMP

€ 38.50

10

0948200239
ref: 10

PLUG,SPARK(BPR8ES)

€ 4.50

10

0948200240111
ref: 10

PLUG,SPARK(W24EPR)

€ 6.50

11

11210047030F0
ref: 11
P29, P53

CYLINDER

€ 206.00

11

11210047300F0
ref: 11
P4

CYLINDER

€ 237.00

12

1124104710
ref: 12

GASKET,CYLINDER (NAS)

€ 11.50

13

0910808176
ref: 13

BOLT,STUD

€ 21.50

14

0910808183
ref: 14

BOLT,STUD

€ 5.50

15

0142106163
ref: 15

STUD BOLT

€ 2.00

16

0831610063
ref: 16

NUT

€ 2.50

17

0421111189
ref: 17

PIN

€ 2.00

18

1315026411
ref: 18

VALVE ASSY,REED

€ 51.00

19

1315226410
ref: 19

STOPPER,REED VALVE

€ 4.50

20

1315326410
ref: 20

VALVE,REED

€ 6.50

21

0211203083
ref: 21

SCREW

€ 1.50

22

0211206163
ref: 22

SCREW 6X16

€ 2.00

23

1311104702
ref: 23

PIPE,INTAKE

€ 8.50

24

0940236306
ref: 24

CLAMP

€ 4.50

25

1140004891
ref: 25

GASKET SET (NAS)

€ 23.50
