STAND
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

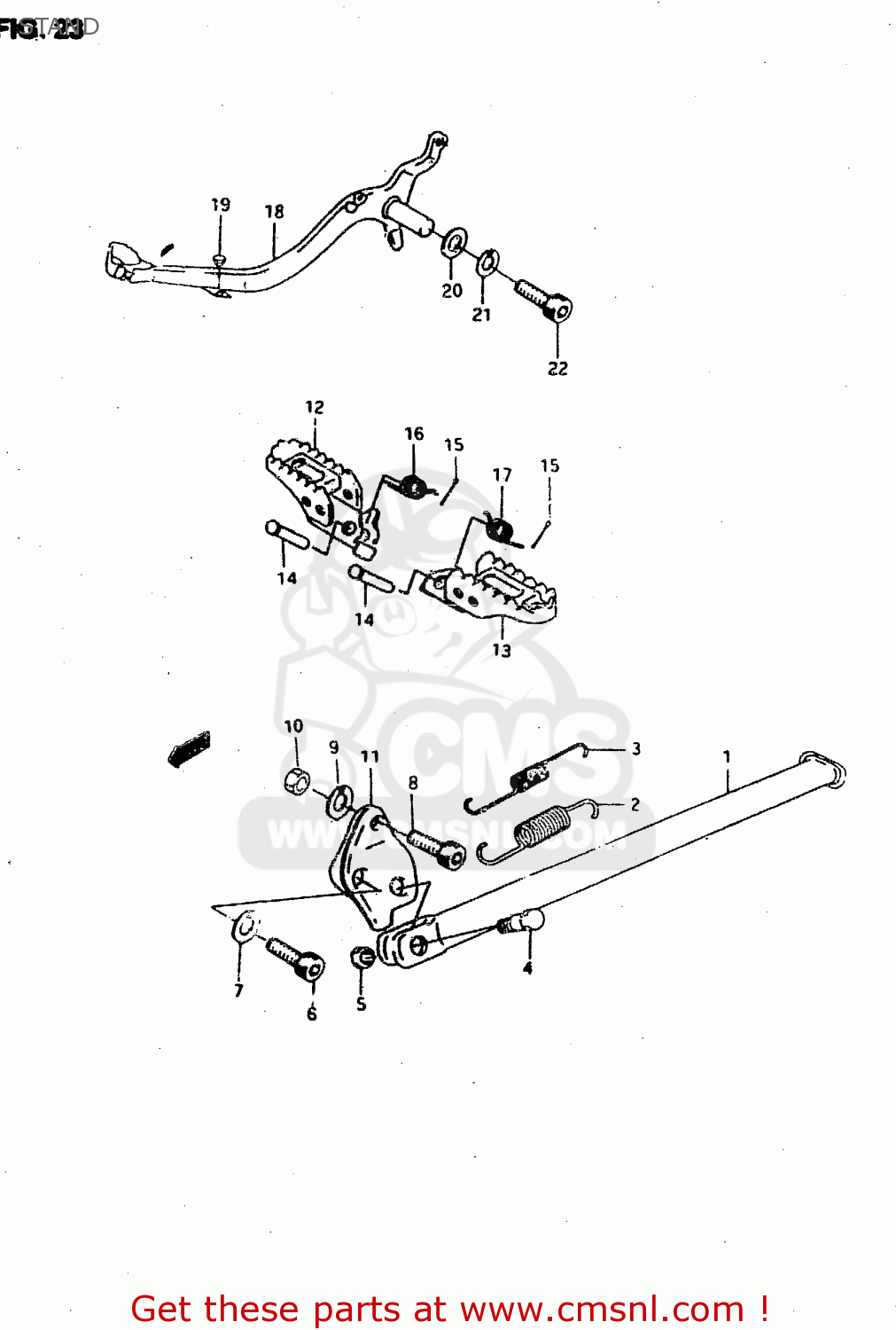

Stand diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
STAND RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
4231003D13
ref: 1
P29, P53
STAND, PROP
€ 0.00
1
4231003E00EE3
ref: 1
P4
STAND, PROP
€ 24.00
2
0944314062
ref: 2
SPRING
€ 6.50
3
0944321005
ref: 3
SPRING
€ 18.00
4
0911110019
ref: 4
BOLT L:30
€ 4.50
5
0915910097
ref: 5
NUT
€ 5.00
6
0713008203
ref: 6
BOLT
€ 3.00
7
0832101083
ref: 7
LOCK WASHER
€ 2.50
8
0713008303
ref: 8
BOLT
€ 3.00
9
0832101083
ref: 9
LOCK WASHER
€ 2.50
10
0831921083
ref: 10
NUT
€ 1.50
11
4233003D02
ref: 11
P29, P53
BRACKET,PROP STAND
€ 50.50
11
4233003E00EE3
ref: 11
P4
BRACKET, PROP STAND
€ 41.50
12
4355008D10019
ref: 12
FOOTREST, FRONT RH
€ 31.00
13
4356008D01019
ref: 13
FOOTREST,FR,L
€ 31.00
14
0920010013
ref: 14
PIN
€ 2.50
15
0411125208
ref: 15
PIN 25X20
€ 2.00
16
0944815004
ref: 16
SPRING
€ 2.50
17
0944815012
ref: 17
SPRING LH
€ 3.00
18
4311003E00EE3
ref: 18
PEDAL BRAKE
€ 38.00
19
4319903A00
ref: 19
CUSHION
€ 3.00
20
0916006193
ref: 20
WASHER
€ 0.00
21
0832101063
ref: 21
LOCK WASHER
€ 2.00
22
0713006163
ref: 22
BOLT,OIL FILLE
€ 3.00
