FRAME
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

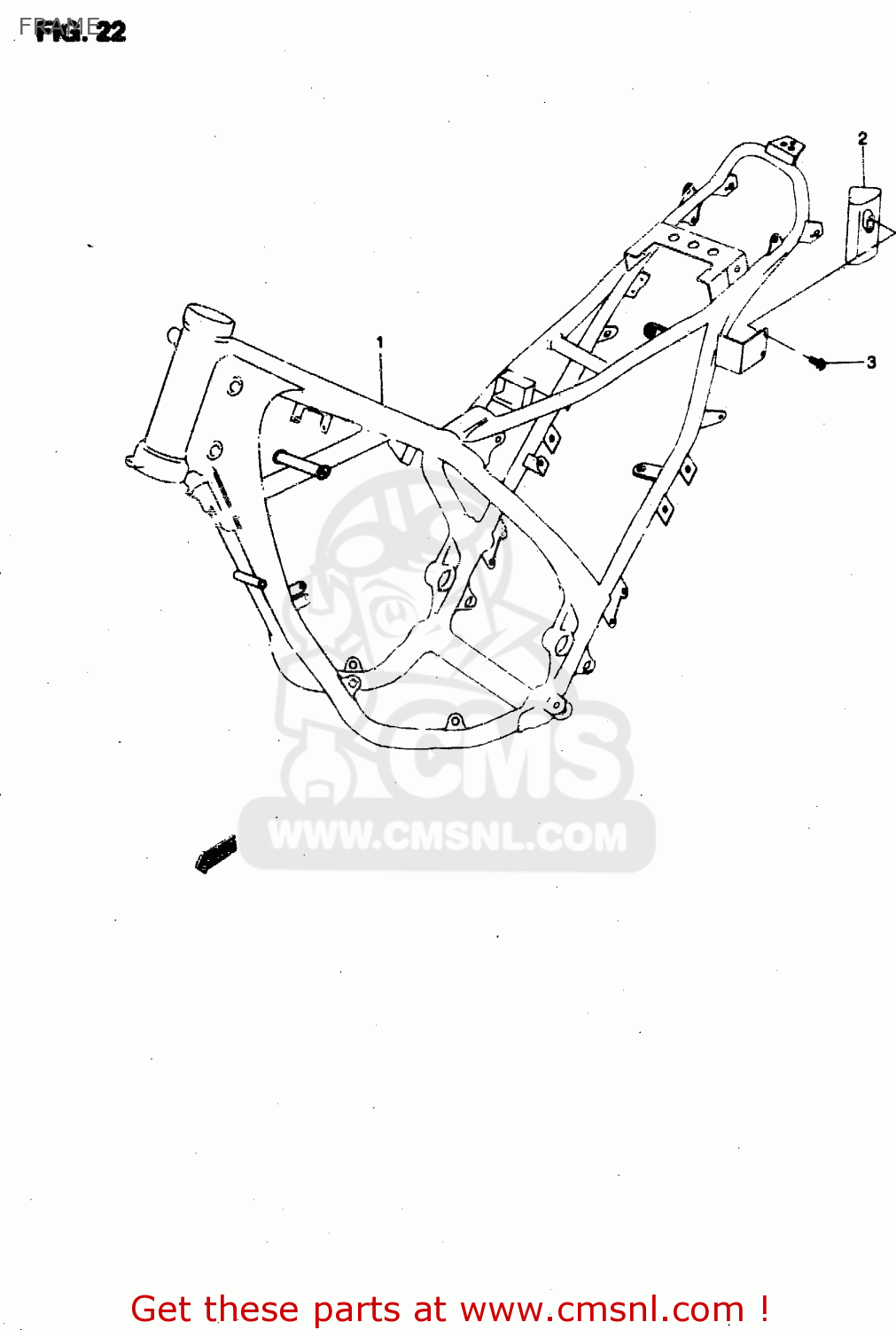

Frame diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
FRAME RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
4110003E00E91
ref: 1
MODEL T
FRAME (GREY)
€ 0.00
1
4110003E1091E
ref: 1
MODEL V:P29 ~F.NO.VT
FRAME (GREY)
€ 0.00
1
4110003E1125Y
ref: 1
MODEL V:P29 ~F.NO.VT
FRAME (YELLOW)
€ 528.00
1
4110003E20E91
ref: 1
P4
FRAME (GREY)
€ 833.00
1
4110003E3025Y
ref: 1
MODEL V:P53 ~F.NO.VT
FRAME (YELLOW)
€ 0.00
1
4110003E4025Y
ref: 1
MODEL V:P29 F.NO.VTT
FRAME (YELLOW)
€ 774.00
1
4110003E5025Y
ref: 1
MODEL V:P53 F.NO.VTT
FRAME (YELLOW)
€ 0.00
2
9621000E01
ref: 2
TOOL CASE
€ 5.50
3
0211235163
ref: 3
SCREW
€ 2.50
0
0980000E00
ref: 0
NOT SHOWN
TOOL ASSY
€ 15.00
