FUEL TANK
RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)

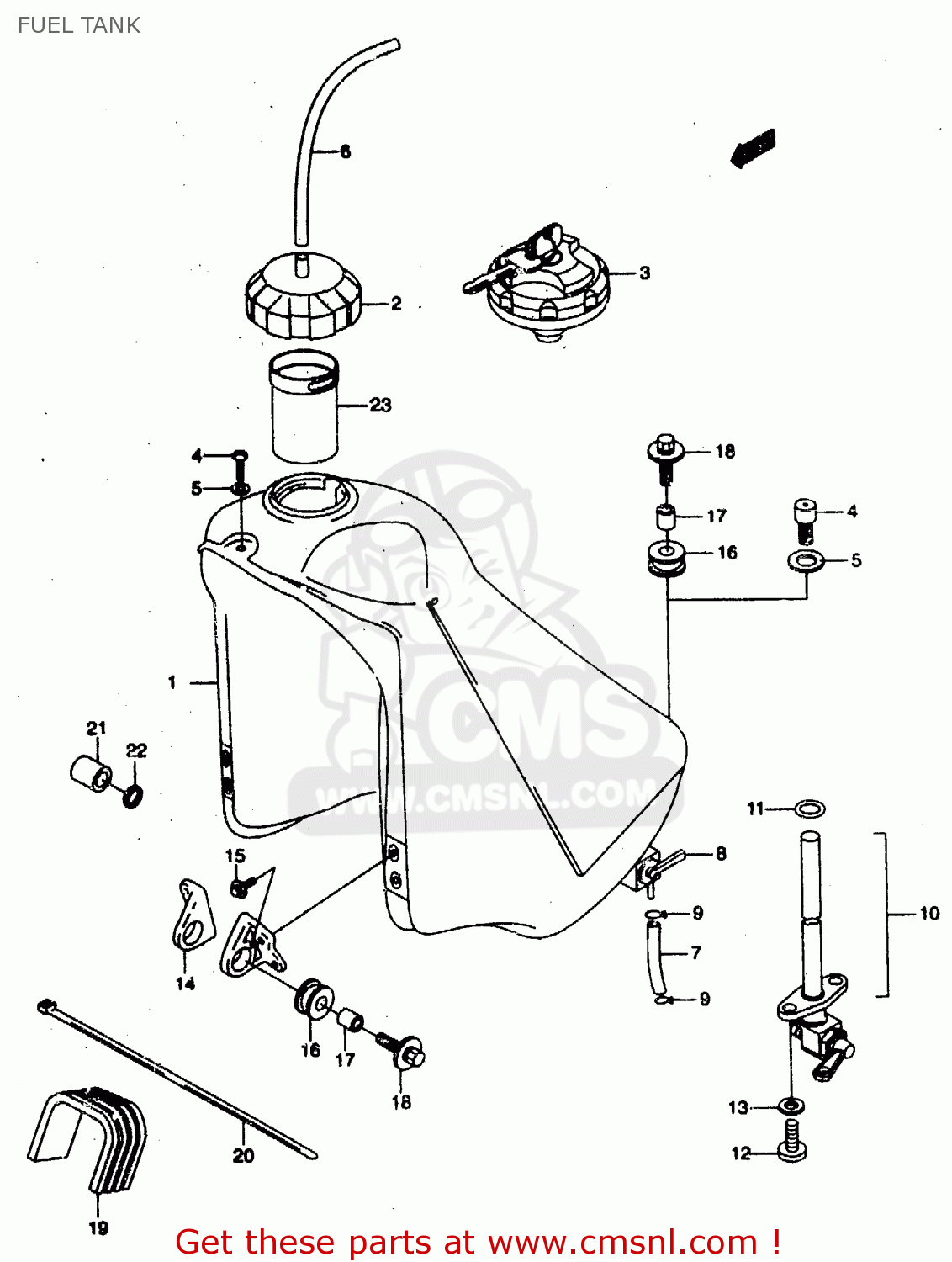

Fuel tank diagram RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
FUEL TANK RMX50 1996 (T) PORTUGAL SPAIN (E29 E53)
×
prices are in EUR
ref
part #
description
quantity
1
4411003E00
ref: 1
MODEL T; MODEL V:, P
TANK, FUEL
€ 499.00
1
4411003E10
ref: 1
MODEL V:, P4, P29 AN
TANK, FUEL
€ 326.50
2
4420000E00
ref: 2
P29, P53
CAP, FUELTANK
€ 11.50
3
4420003E10
ref: 3
P4
CAP,FUELTANK
€ 17.50
4
0713006163
ref: 4
MODEL T; MODEL V:, P
BOLT,OIL FILLE
€ 3.00
5
0916006109
ref: 5
MODEL T; MODEL V:, P
WASHER(6.5X18X1.6)
€ 2.00
6
4422200E01
ref: 6
P29, P53
HOSE, (L:260)
€ 2.50
7
4421200E10
ref: 7
MODEL T; MODEL V:, P
HOSE, FUEL (4.5X7.5X135)
€ 0.00
7
0935250823115
ref: 7
MODEL V:, P4, P29 AN
HOSE, FUEL (5X8.2X115)
€ 13.00
8
4430003E00
ref: 8
MODEL T; MODEL V:, P
COCK ASSY, FUEL
€ 36.00
9
0940108401
ref: 9
CLIP
€ 1.50
10
4430003E10
ref: 10
MODEL V:, P4, P29 AN
COCK ASSY, FUEL
€ 61.00
11
4434803E00
ref: 11
MODEL V:, P4, P29 AN
O RING
€ 1.50
12
0211206103
ref: 12
MODEL V:, P4, P29 AN
SCREW
€ 1.50
13
0832101063
ref: 13
MODEL V:, P4, P29 AN
LOCK WASHER
€ 2.00
14
4413127C01
ref: 14
MODEL V:, P4, P29 AN
BRACKET,FUEL TANK FR
€ 6.50
15
0211236123
ref: 15
MODEL V:, P4, P29 AN
BOLT
€ 2.00
16
0932012030
ref: 16
MODEL V:, P4, P29 AN
CUSHION
€ 3.50
17
D9212181D8
ref: 17
MODEL V:, P4, P29 AN
SPACER
€ 2.50
18
0911808132
ref: 18
MODEL V:, P4, P29 AN
BOLT(8X30)
€ 4.50
19
4454103E00
ref: 19
MODEL V:, P4, P29 AN
CUSHION
€ 7.50
20
0940725401
ref: 20
MODEL V:, P4, P29 AN
CLAMP(L:235)
€ 4.00
21
4141100E00
ref: 21
MODEL T; MODEL V:, P
CUSHION
€ 3.00
22
4142100E00E0Z
ref: 22
MODEL T; MODEL V:, P
WASHER
€ 3.00
23
4411303E00
ref: 23
MODEL V
TUBE,FILLER IN
€ 3.50
