AIR CLEANER

SFV650 GLADIUS 2014 (L4) USA (E03)

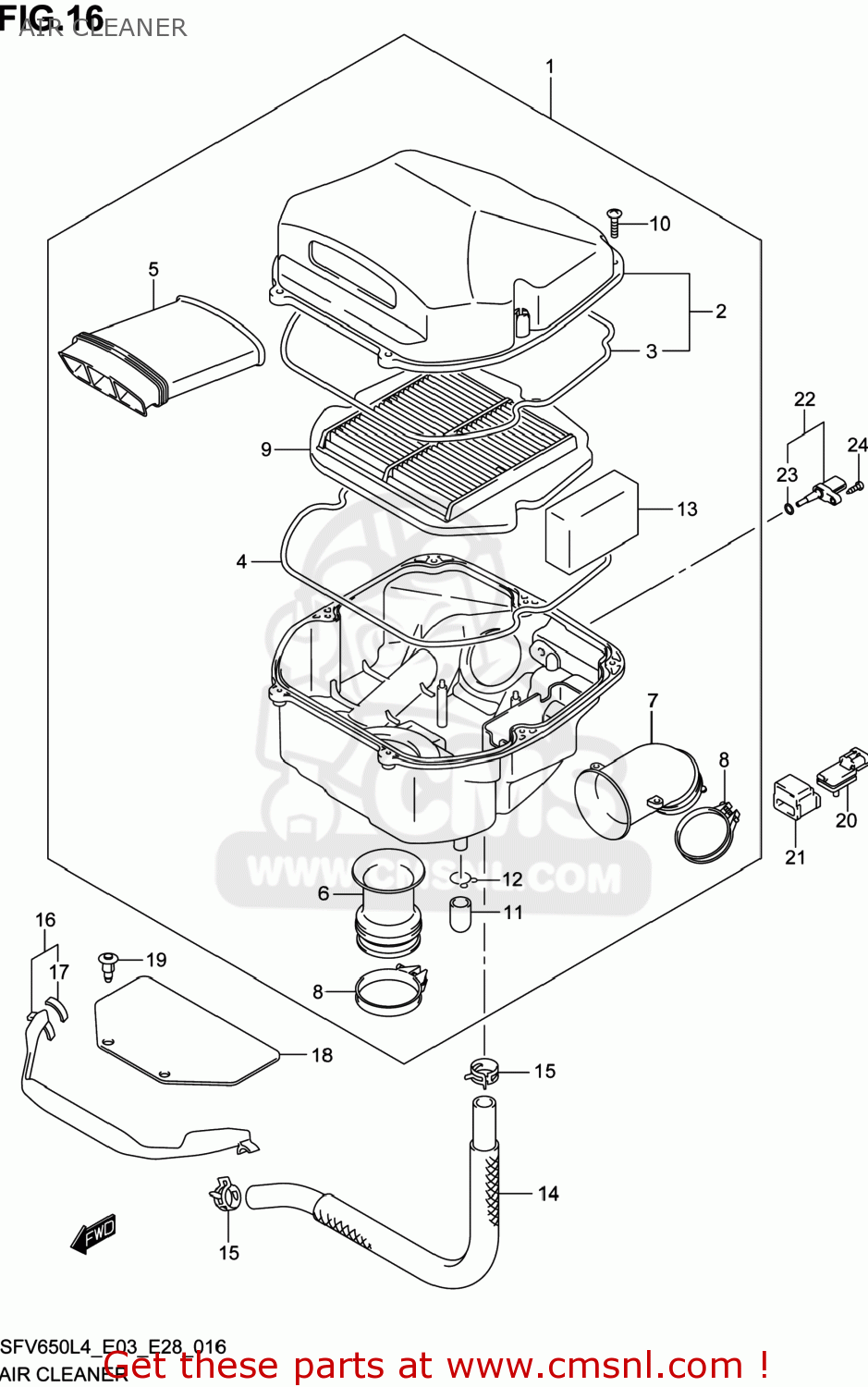

Air cleaner diagram SFV650 GLADIUS 2014 (L4) USA (E03)

AIR CLEANER SFV650 GLADIUS 2014 (L4) USA (E03)

AIR CLEANER SFV650 GLADIUS 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370044H01
ref: 1

CLEANER ASSY,AIR

€ 246.50

2

1374044H00
ref: 2

CAP,AIR CLEANER

€ 31.50

3

1374644H00
ref: 3

GASKET (NAS)

€ 6.50

4

1374644H00
ref: 4

GASKET (NAS)

€ 6.50

5

1389144H00
ref: 5

TUBE,INLET

€ 45.50

6

1388144H00
ref: 6

TUBE,OUTLET

€ 17.50

7

1388244H00
ref: 7

TUBE,OUTLET

€ 27.00

8

1382644H01
ref: 8

CLAMP,OUTLET TUBE

€ 4.50

9

1378044H00
ref: 9

FILTER,AIR CLEANER

€ 28.00

10

035410520A
ref: 10

SCREW

€ 2.50

11

1385941B10
ref: 11

PLUG

€ 5.50

12

0940114301
ref: 12

CLIP

€ 2.00

13

1378844H00
ref: 13

FILTER,BREATHER

€ 9.50

14

1385044H00
ref: 14

TUBE,BREATHER

€ 40.00

15

0940120405
ref: 15

CLIP

€ 3.00

16

1384044H00
ref: 16

COVER,CLEANER INLET

€ 16.00

17

4489424A00
ref: 17

CUSHION

€ 1.50

18

1384144H00
ref: 18

SHEET,CLEANER INLET

€ 18.00

19

09409083085ES
ref: 19

CLIP(BLACK)

€ 2.00

20

1859141F00
ref: 20

SENSOR,PRESSURE

€ 360.00

21

1859541F00
ref: 21

HOLDER,SENSOR

€ 14.50

22

1365041F10
ref: 22

SENSOR,AIR TEMP

€ 41.50

23

1365541F10
ref: 23

O RING

€ 7.00

24

035110516A
ref: 24

SCREW

€ 2.50
